Trace rays and use the mirror equation to describe images in curved mirrors.
#physics
30 questions
One question set, multiple game modes. Tap any game to see it in action. Not sure which to pick?
Answer to place stones and capture territory.
Outrun the snow together.
Earn blasts, then hunt the other team.
Answer to earn energy, then climb.
The class blasts through walls together.
Bid on mystery lots. Most money wins.
Sell tours. Nice, standard, or a total scam.
Answer, restock, and serve the rush.
More correct answers pulls the rope your way.
Answer, then shoot down the alien wave.
Answer, then tap to leap the frozen ridge.

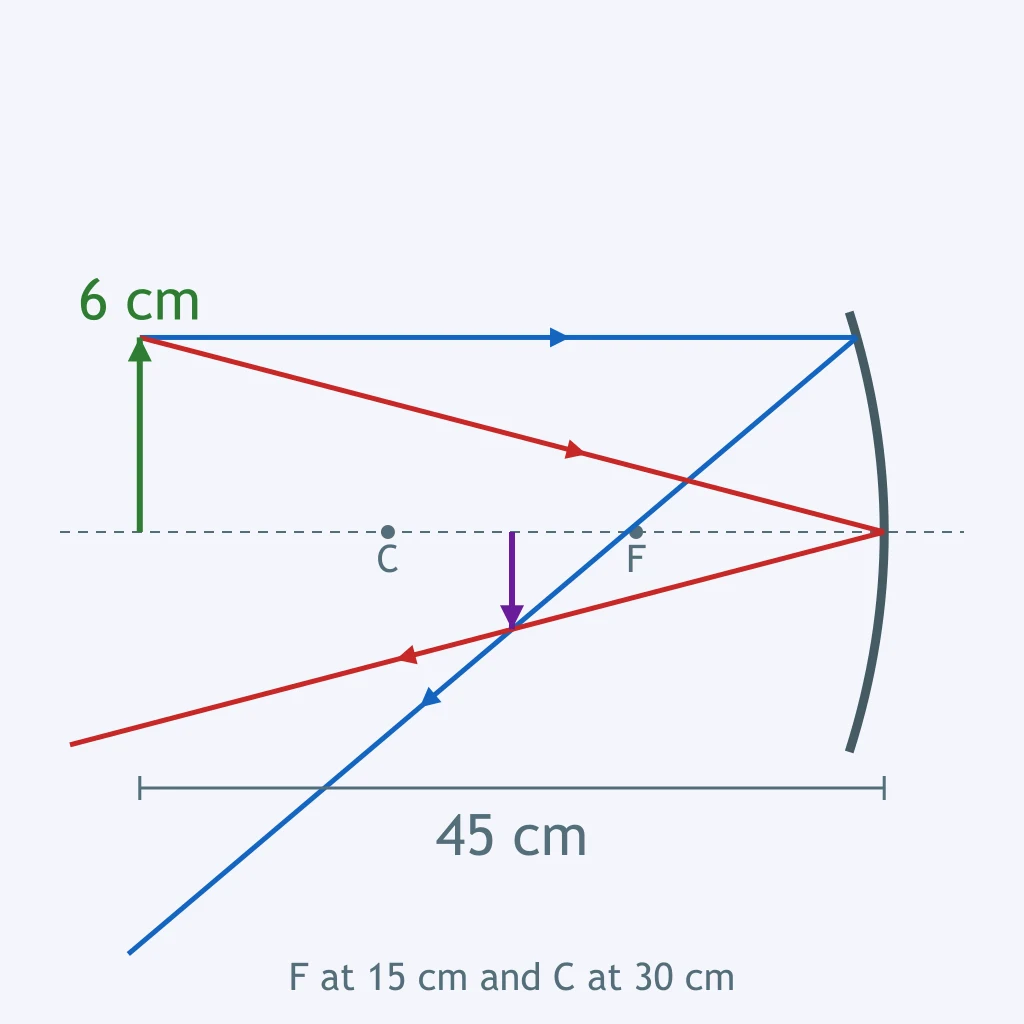

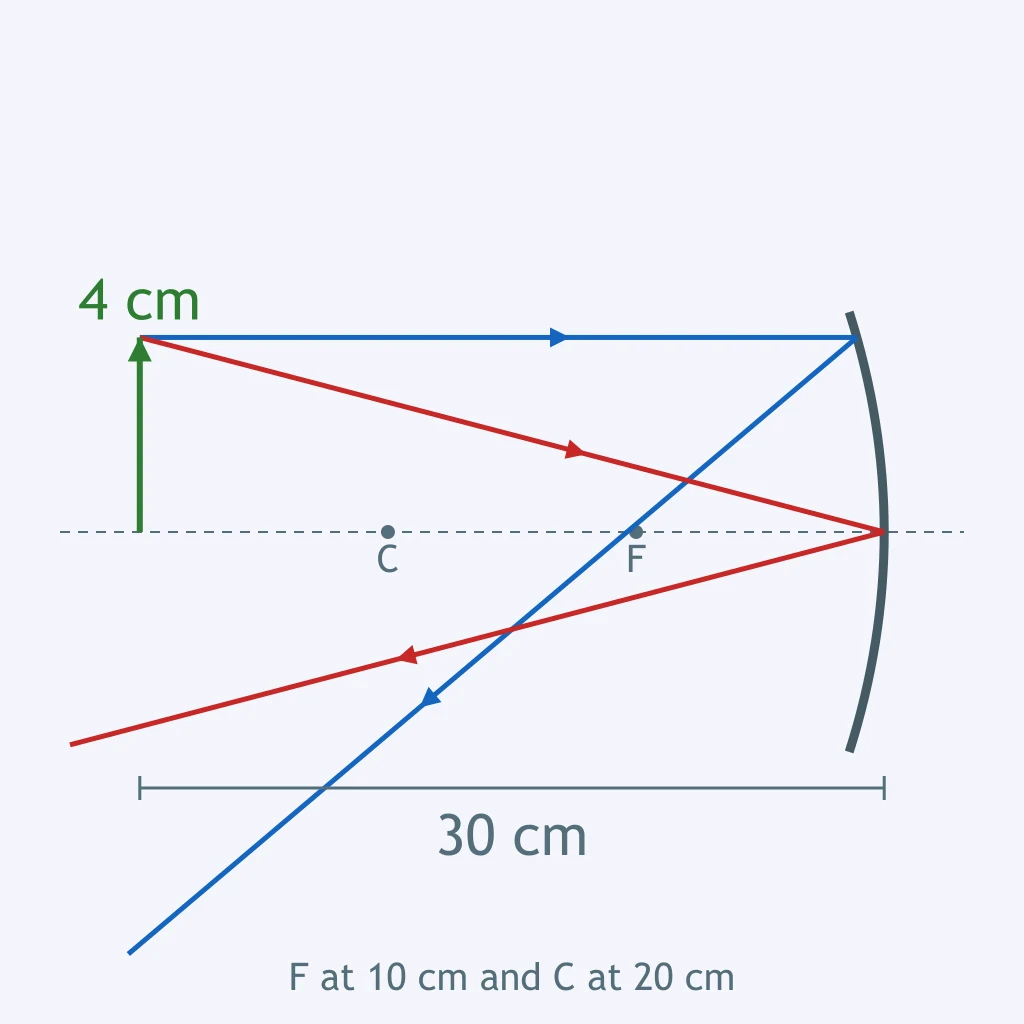

The object is beyond C in the concave-mirror diagram. What is the image like?

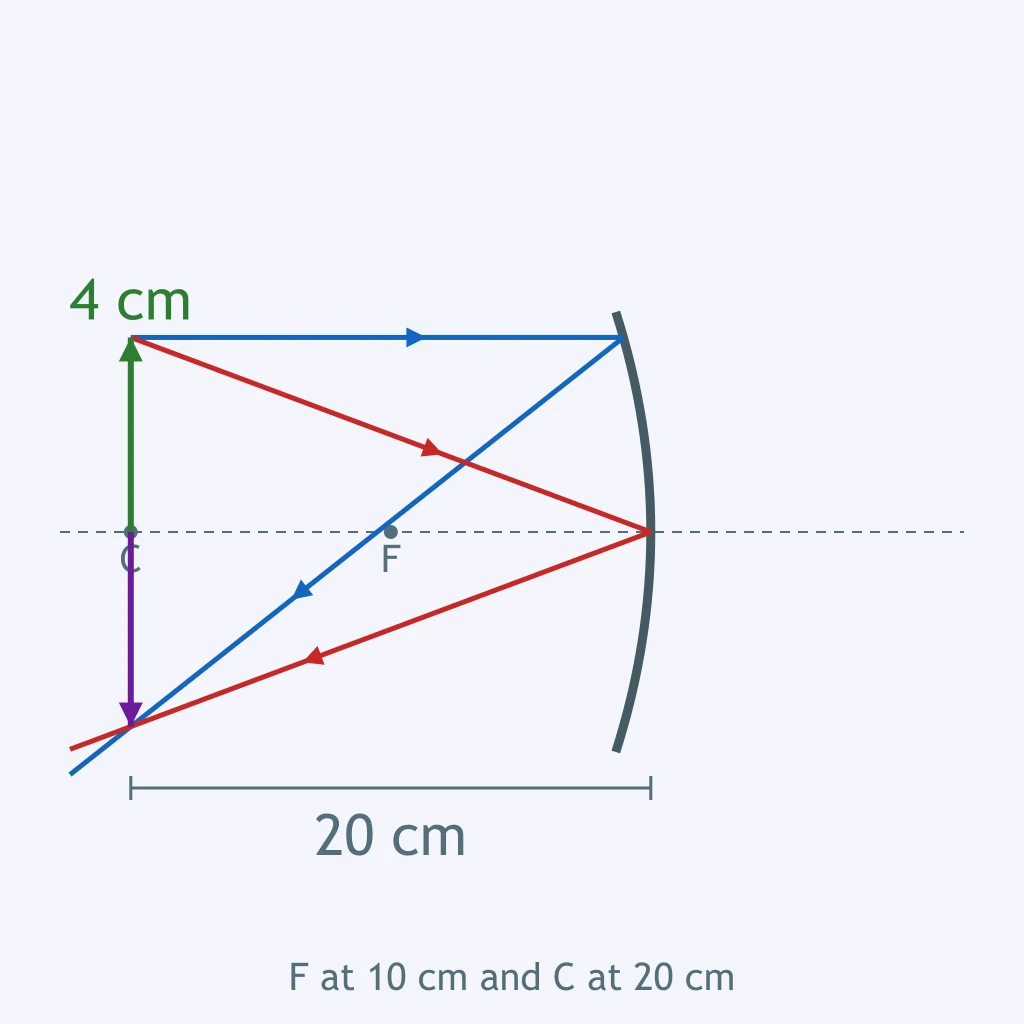

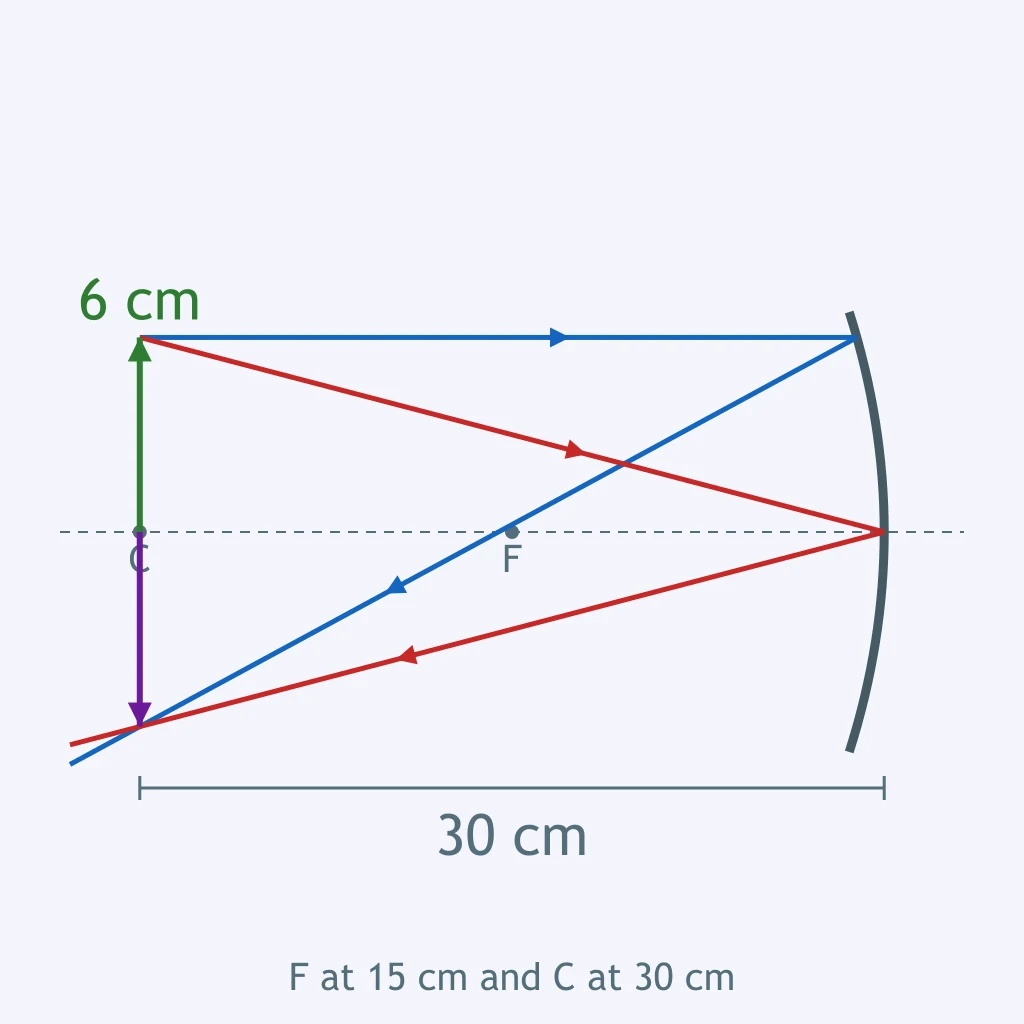

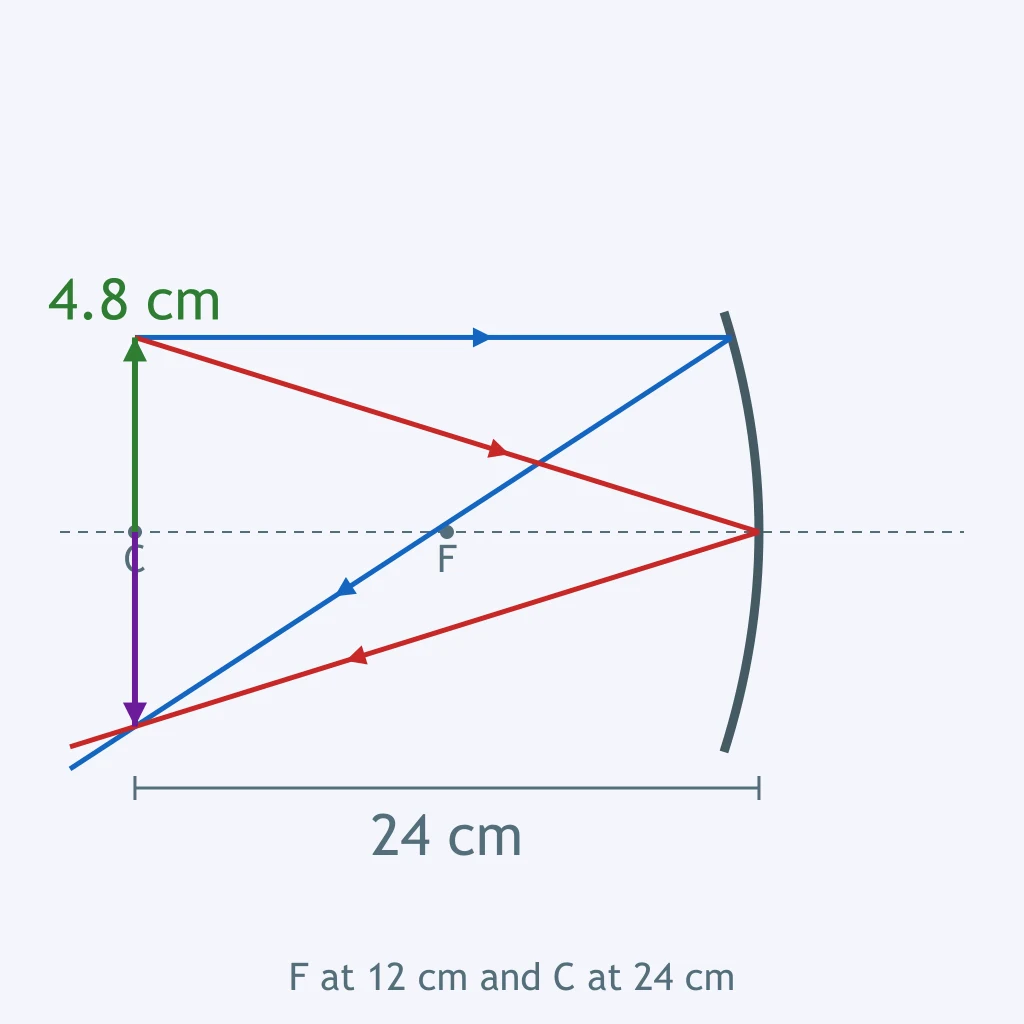

In the diagram, the object is at C for a concave mirror. Which description matches the image?

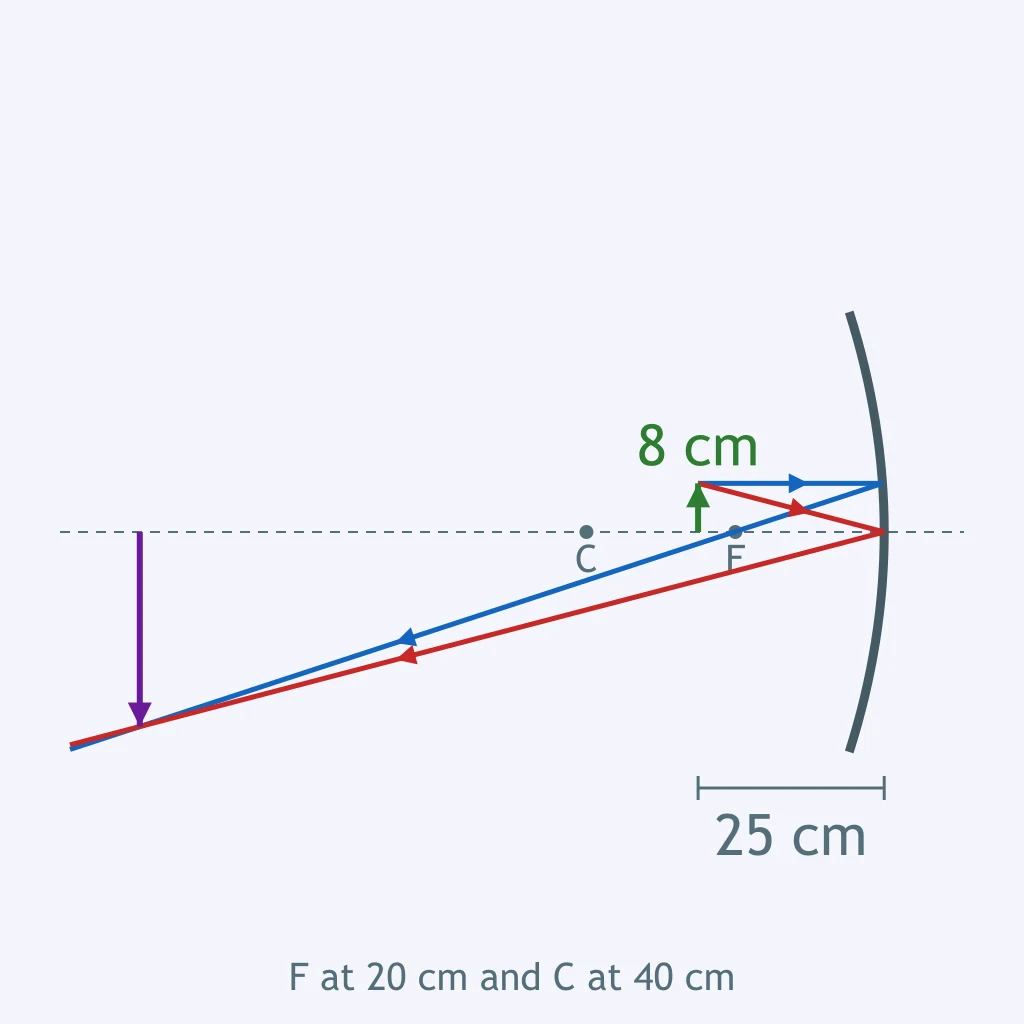

The object is between C and F in the concave-mirror ray diagram. How should the image be described?

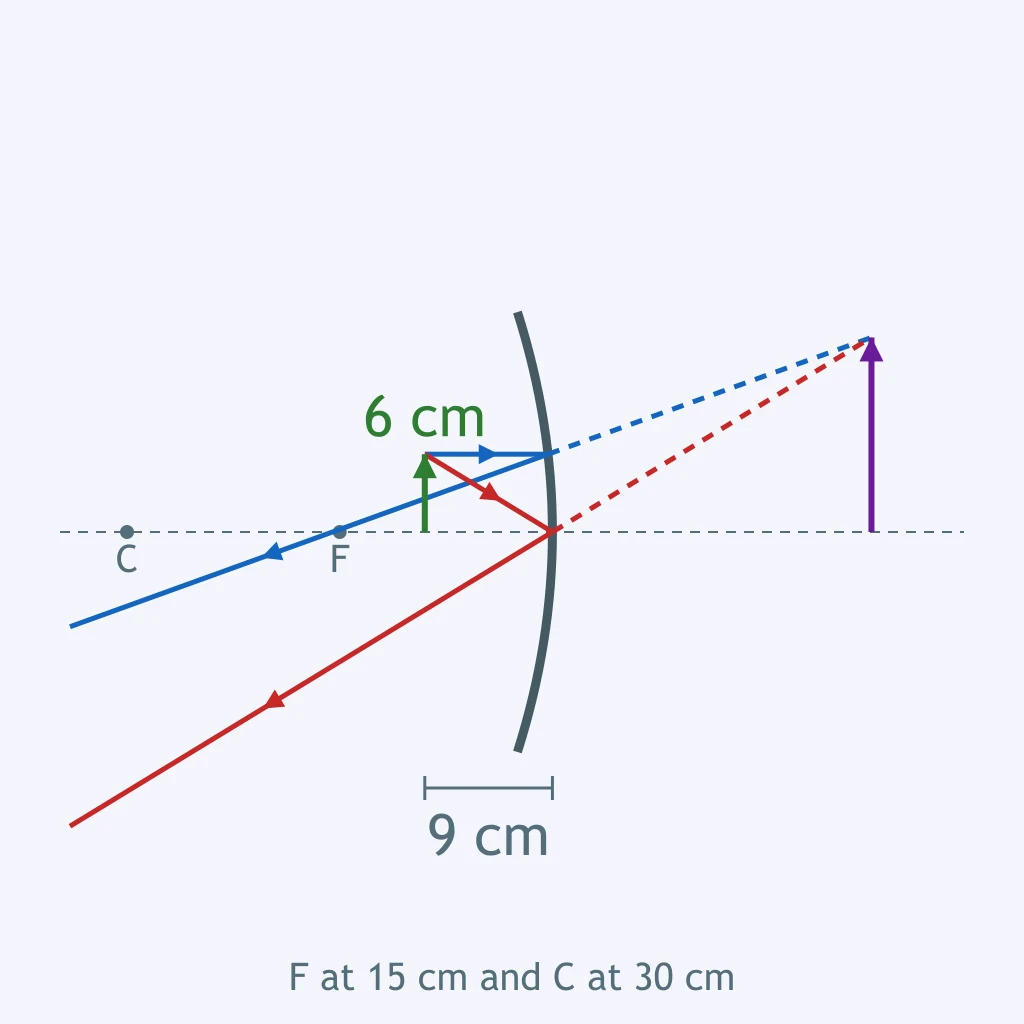

The object in the concave-mirror diagram is inside F. What image is formed?
A concave mirror has the object shown far beyond C. Which image description is correct?
The concave-mirror diagram places the object exactly at C. What happens to the image size and orientation?

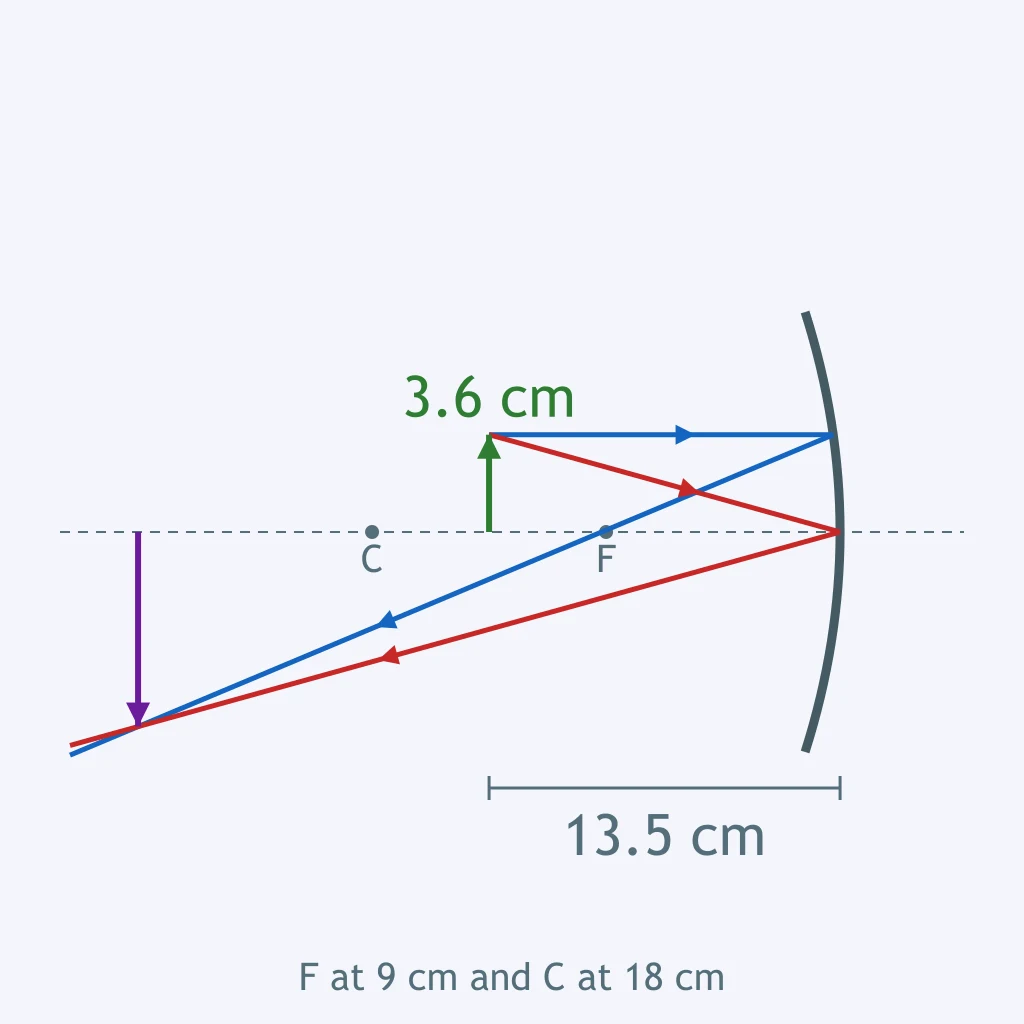

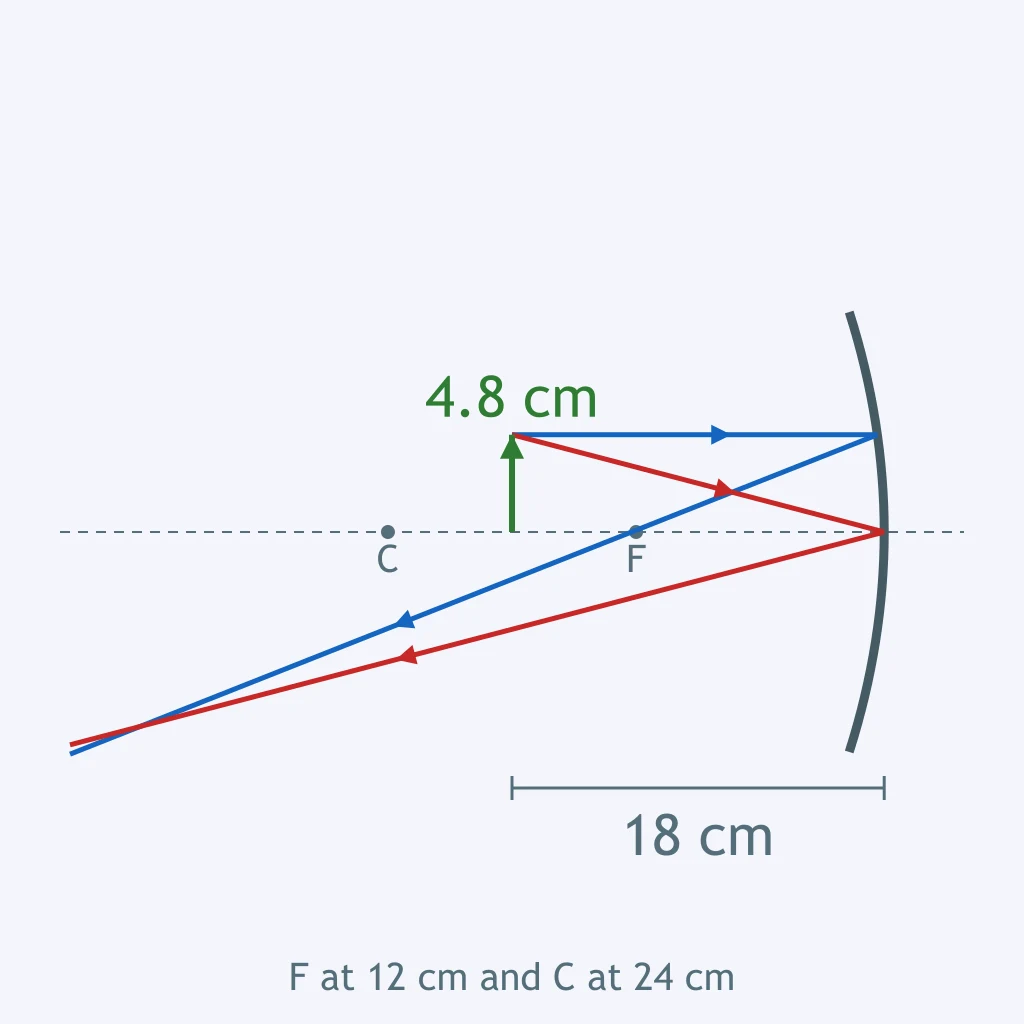

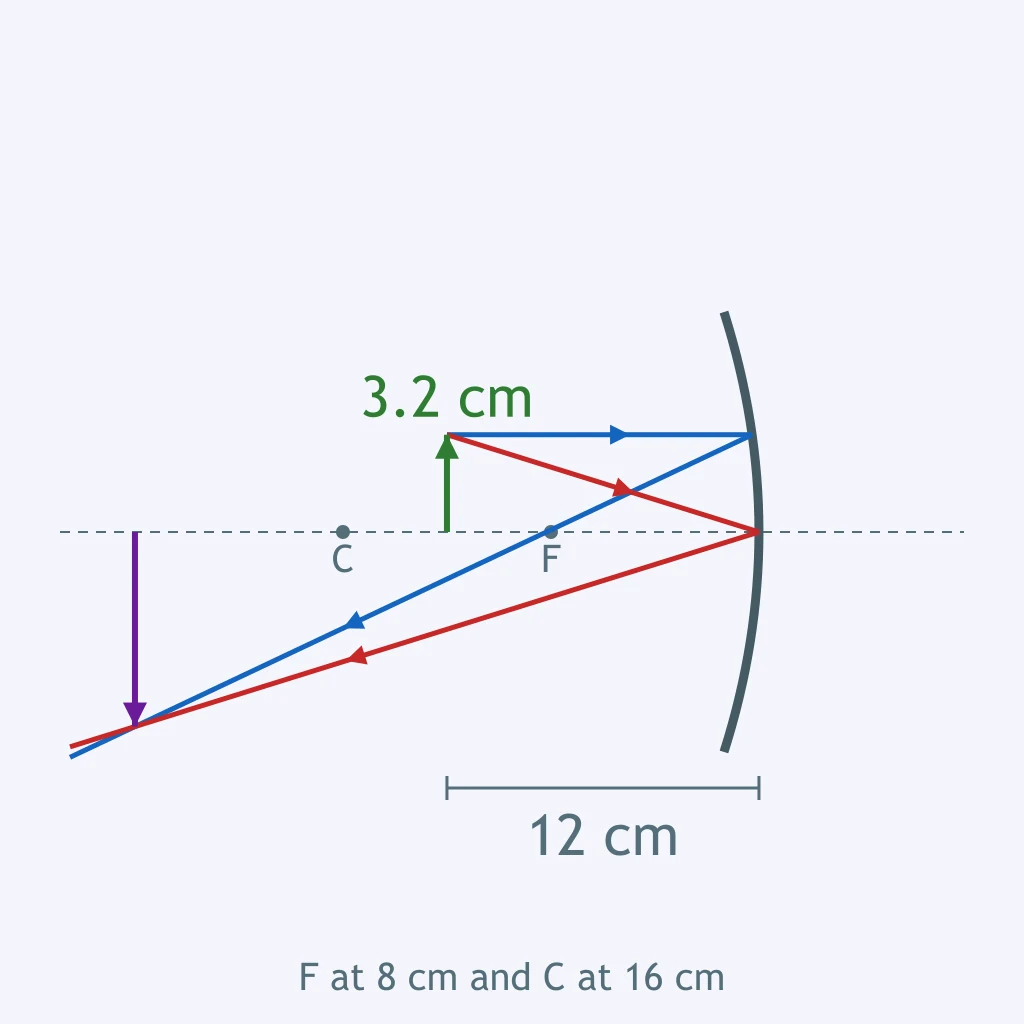

For the concave mirror shown, the object is between F and C. Which statement is true of the image?

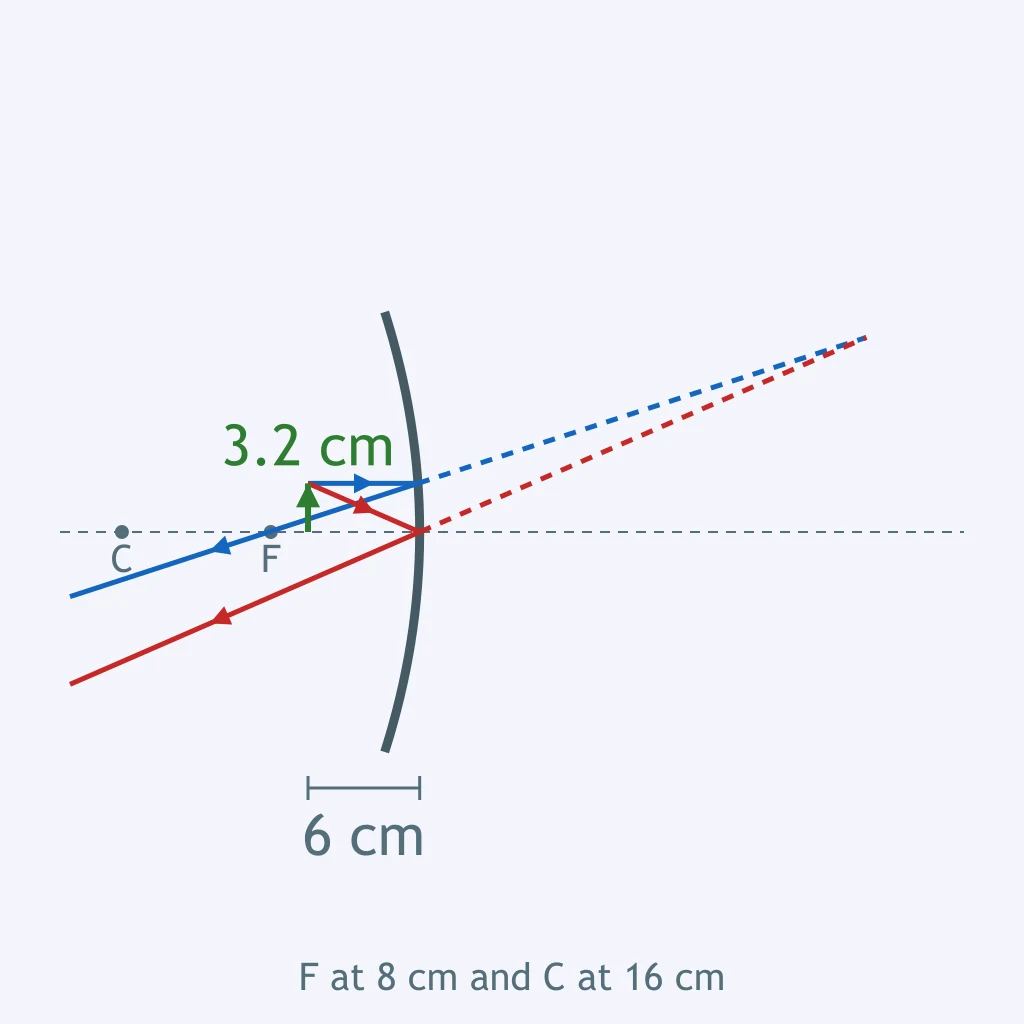

The object is closer to the concave mirror than F. Which description fits the image in the diagram?

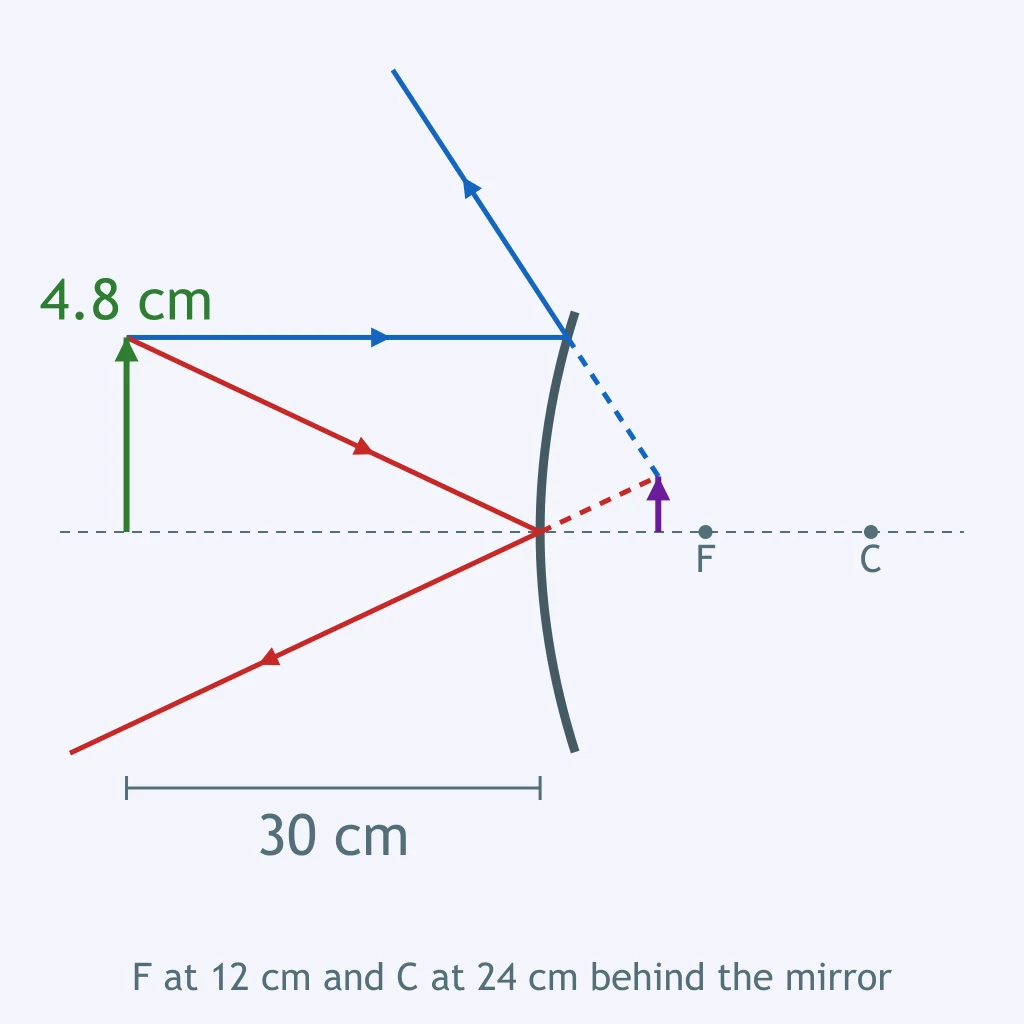

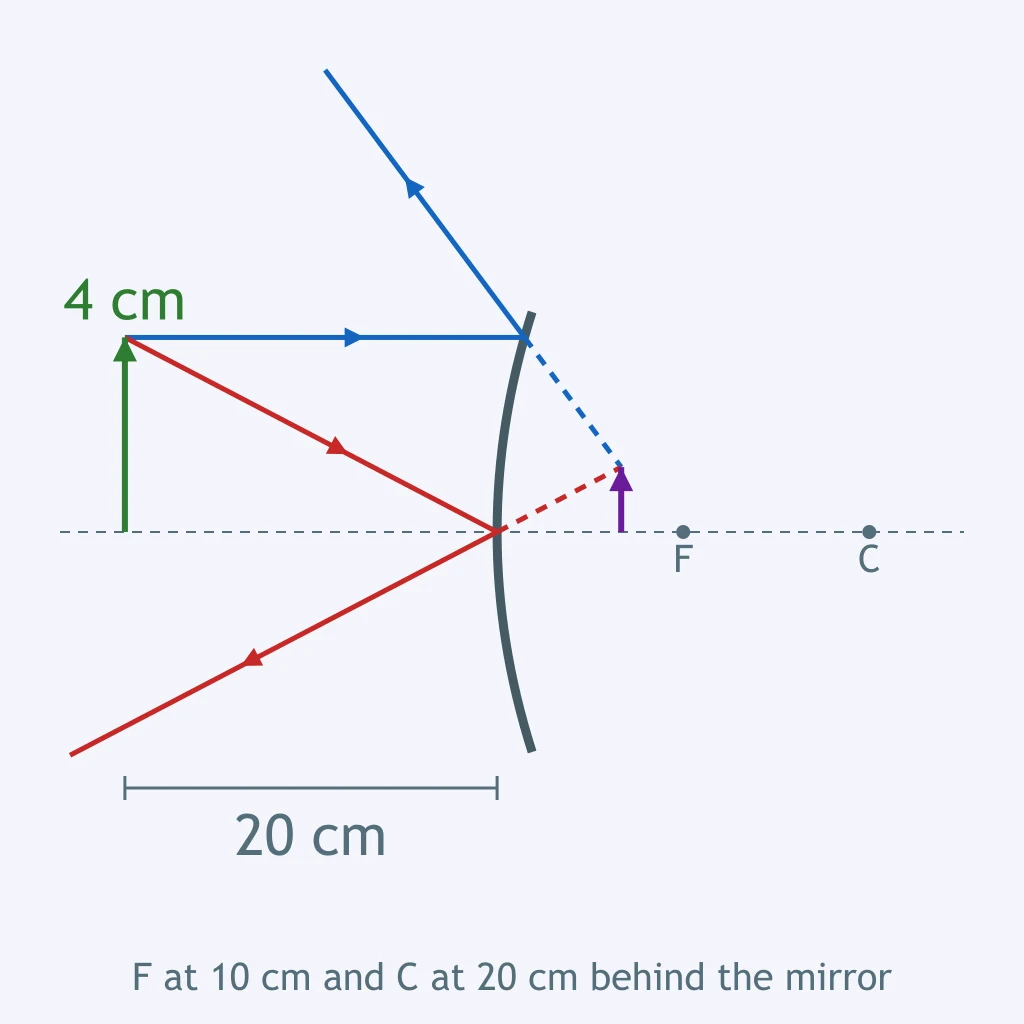

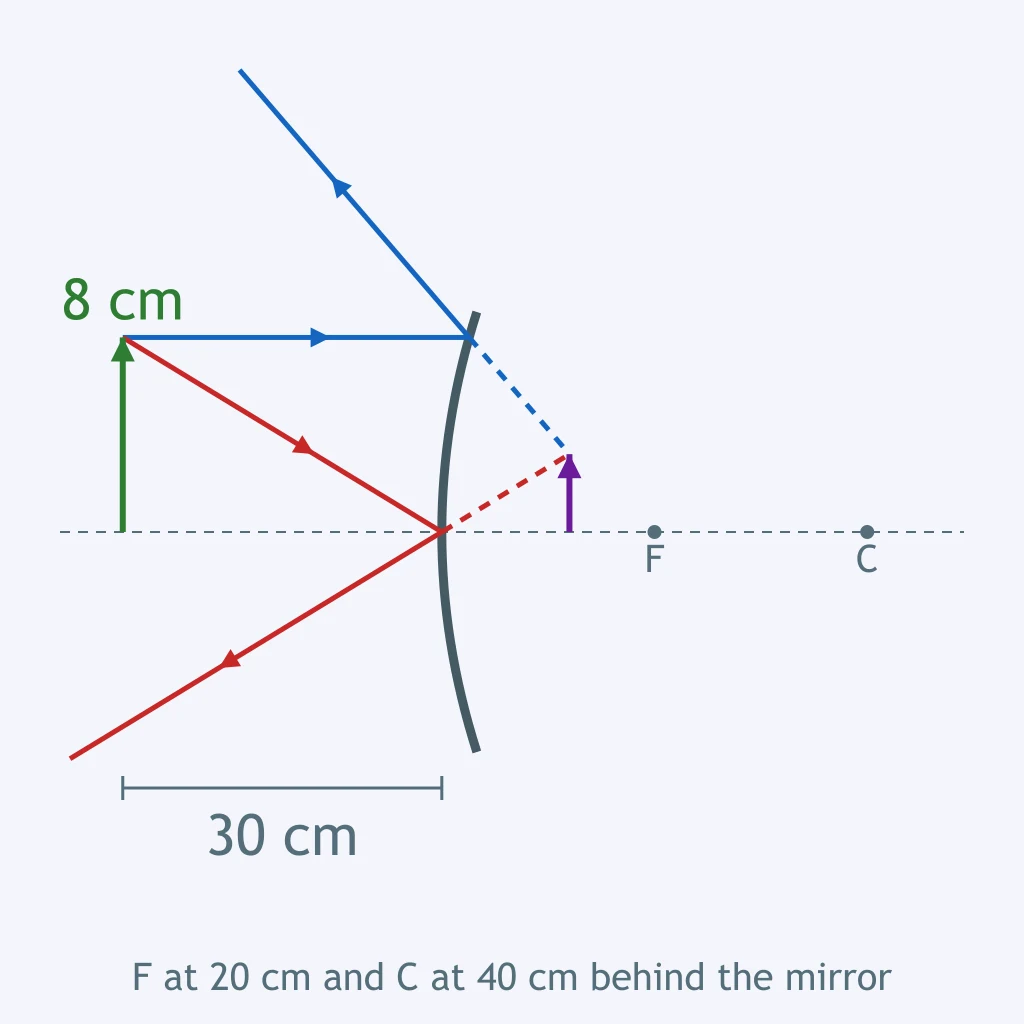

Look at the convex-mirror diagram. Where is the image and what is it like?

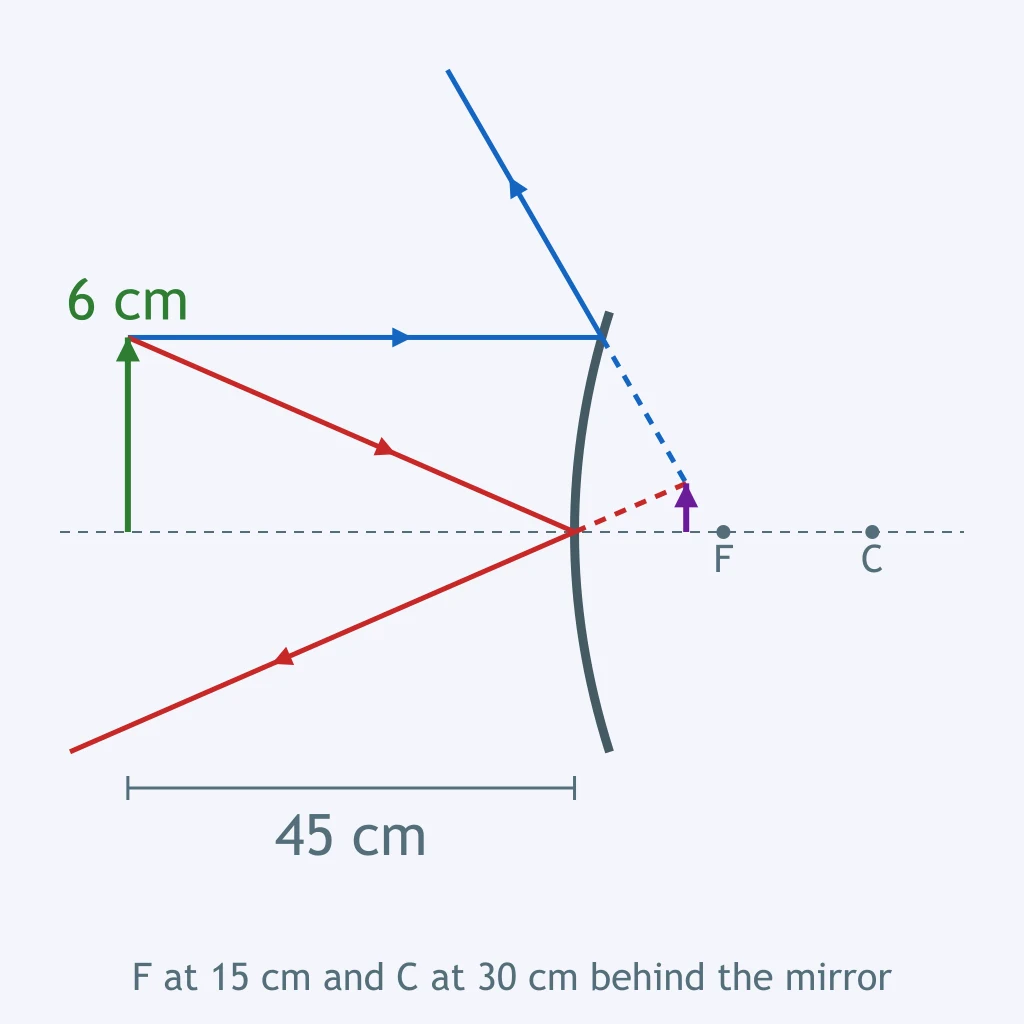

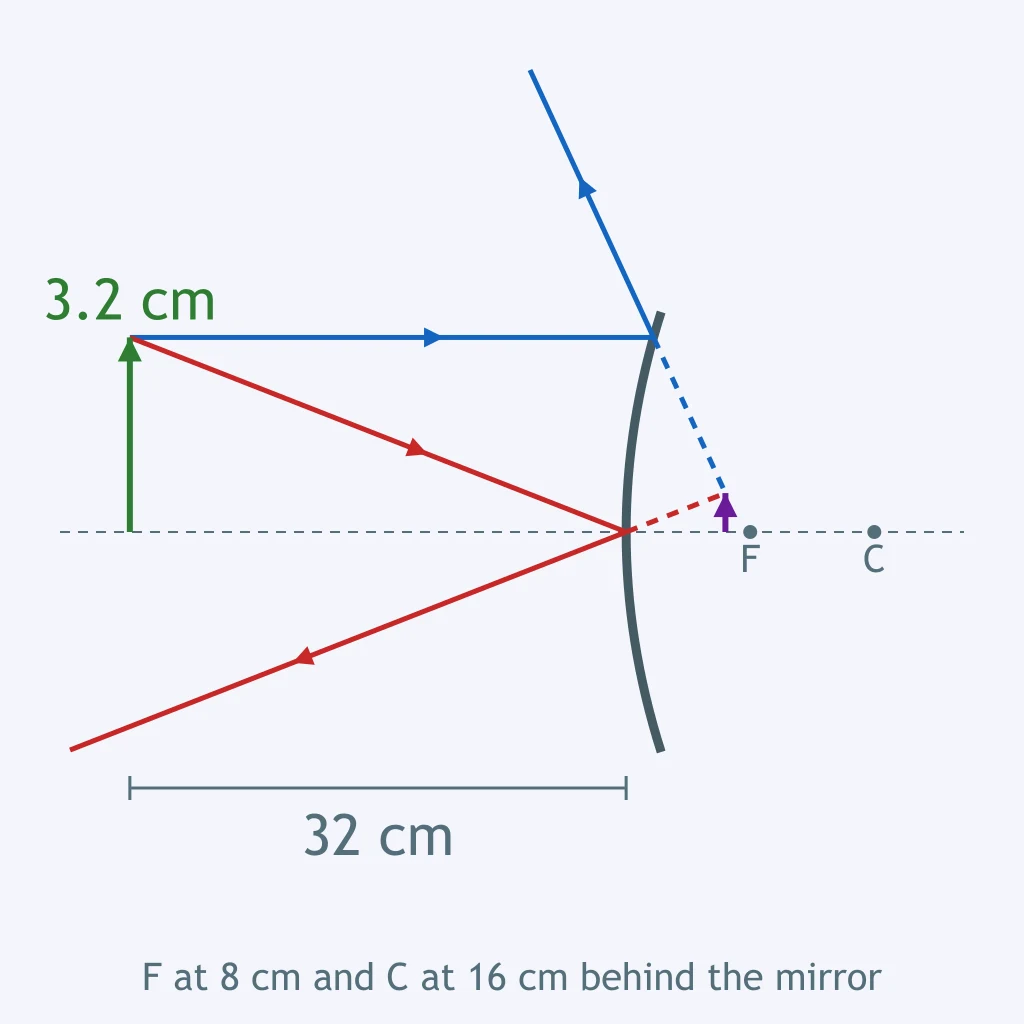

The object is far from the convex mirror in the figure. Which image description remains correct?
The convex-mirror diagram shows an object close to the mirror. What image is formed?
Which option describes the image produced by the convex mirror shown?
In the convex-mirror ray diagram, how does the image compare with the object?

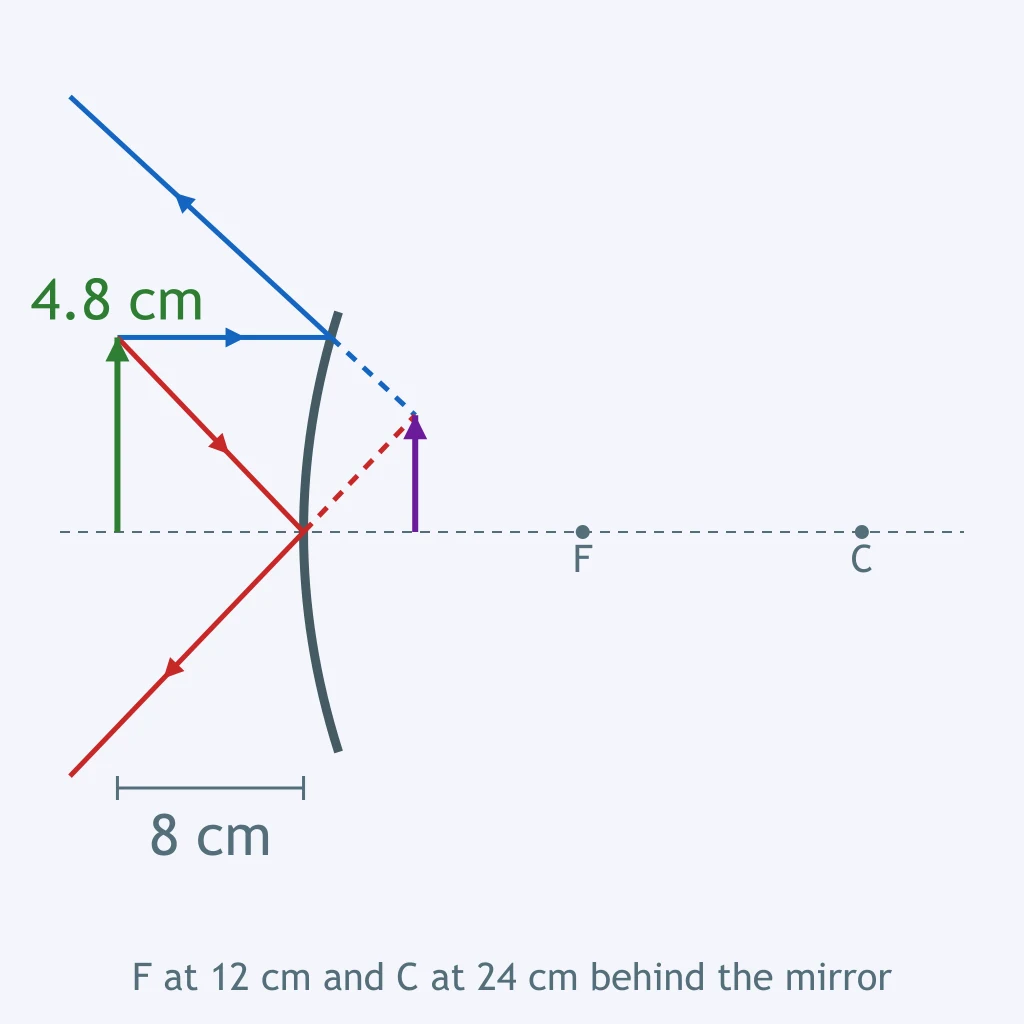

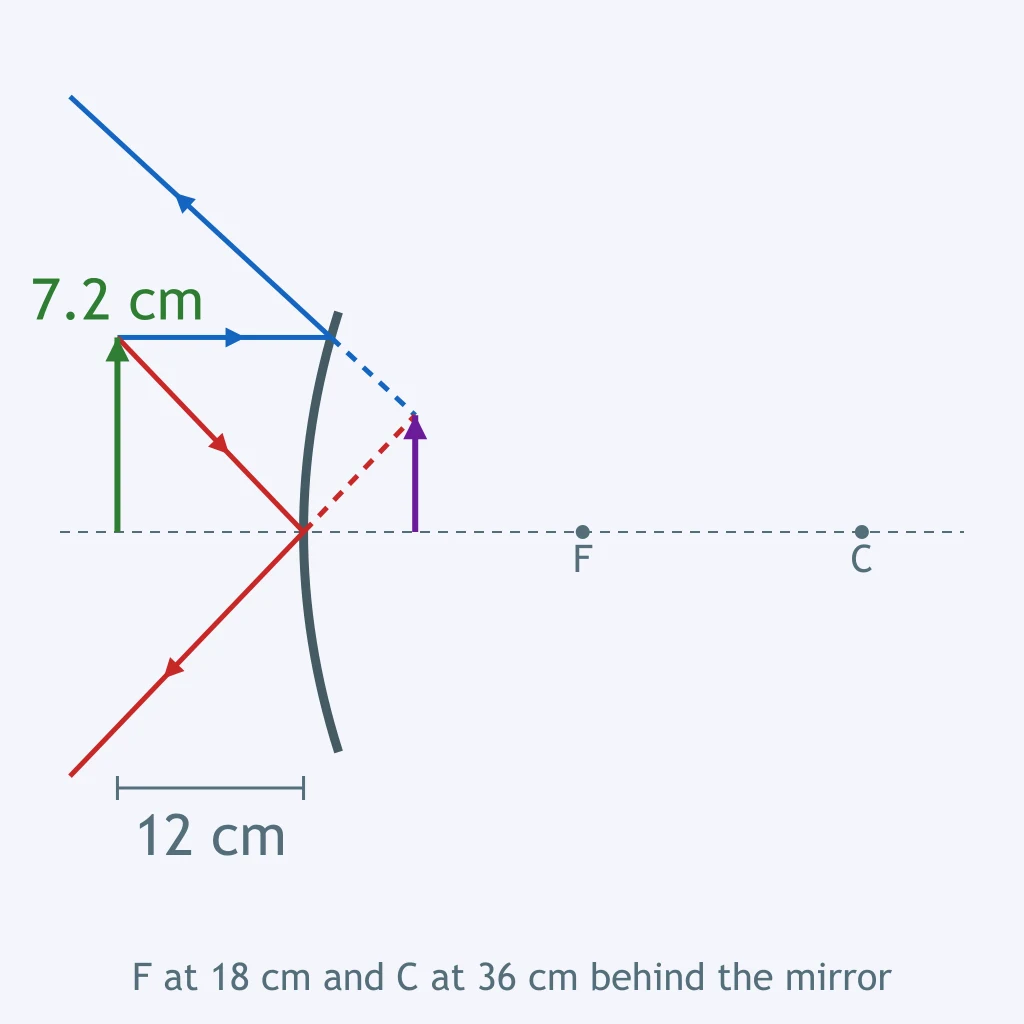

The object sits closer to the convex mirror than the focal length. Which description of the image is still correct?
The traced rays in the concave-mirror diagram come from an object beyond C. Where do they cross?
In the concave-mirror diagram, the object is at C. Where is the image located?
The object is between F and C for the concave mirror shown. In which region do the reflected rays meet?

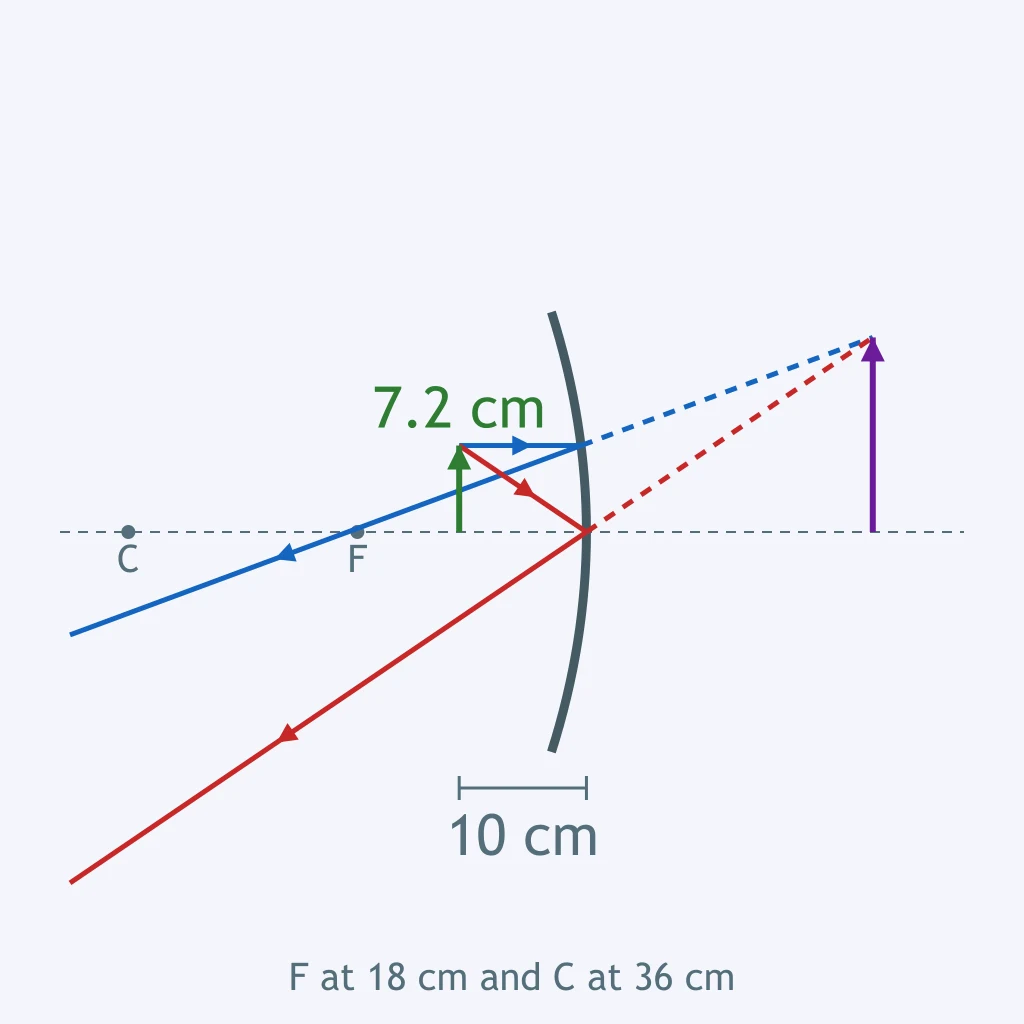

The object is inside F for the concave mirror shown. Where is the image located?
For the convex-mirror ray diagram, where do the backward extensions of the reflected rays meet?
The concave mirror has f = +10.0 cm and do = 30.0 cm. With positive di meaning a real image in front, what is di?
For the concave mirror shown, f = +12.0 cm and do = 18.0 cm. What image distance does the mirror equation give?
A concave mirror has f = +8.0 cm and do = 6.0 cm. With negative di meaning a virtual image behind the mirror, what is di?

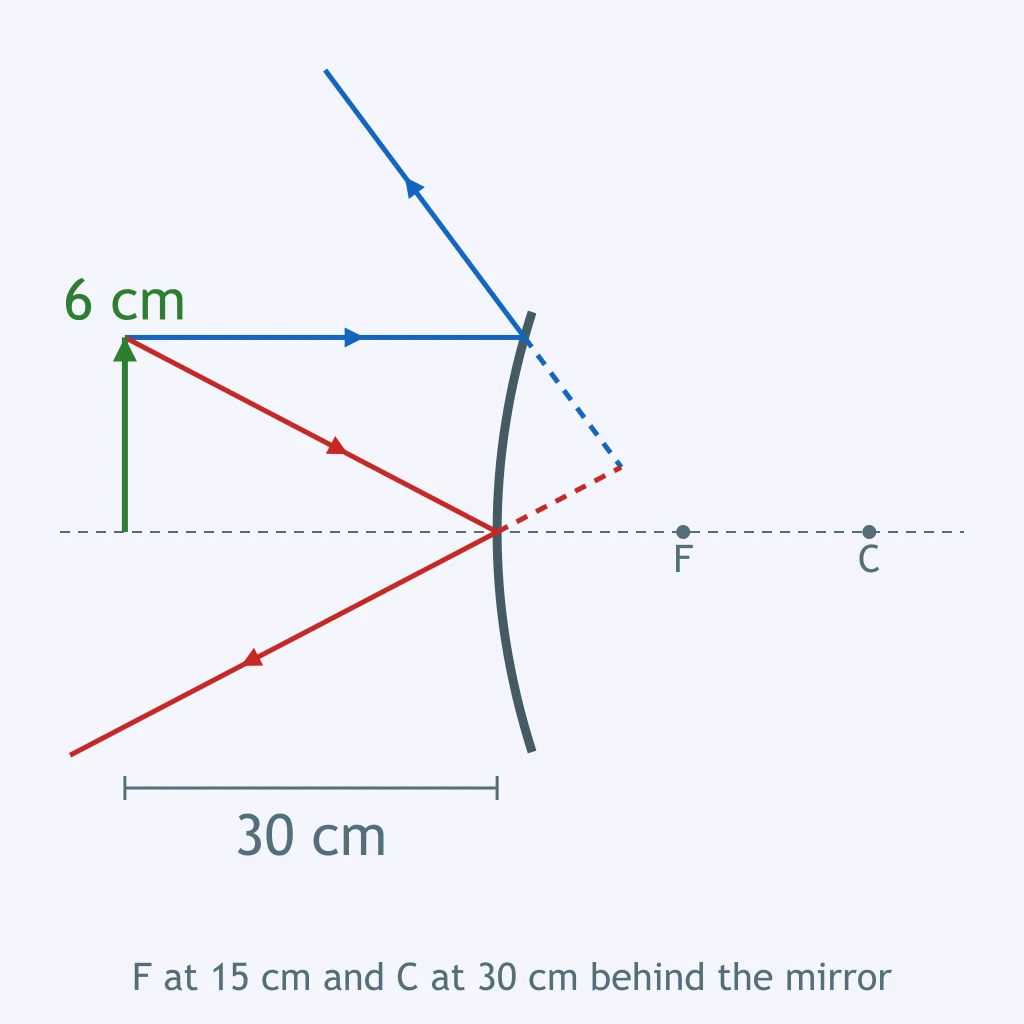

For the convex mirror shown, f = -15.0 cm and do = 30.0 cm. What is the image distance?

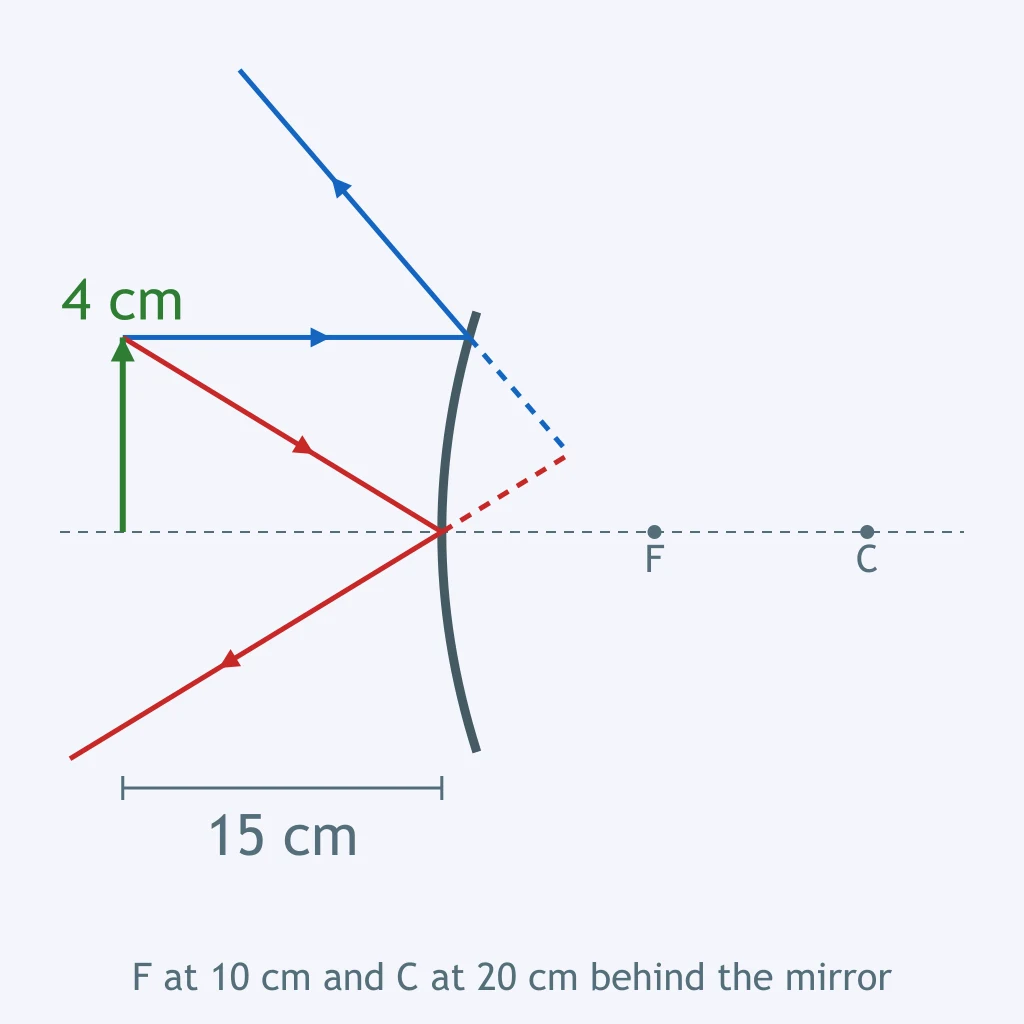

A convex mirror has f = -10.0 cm and do = 15.0 cm. If m = -di/do, what is the magnification?
A spherical mirror has a radius of curvature of 30 cm. What is its focal length?
For a concave spherical mirror, what does the center of curvature C represent?
Which statement best defines a real image in mirror optics?
With the sign convention for this set, what does a negative image distance di mean for a mirror?
A student says, “A virtual image cannot be photographed.” Which option is correct?
If the top half of a curved mirror is covered, what happens to the image formed by the remaining uncovered part?
