Mixed practice on wave anatomy, boundaries, standing waves, and sound.
#physics
30 questions
One question set, multiple game modes. Tap any game to see it in action. Not sure which to pick?
Answer to place stones and capture territory.
Outrun the snow together.
Earn blasts, then hunt the other team.
Answer to earn energy, then climb.
The class blasts through walls together.
Bid on mystery lots. Most money wins.
Sell tours. Nice, standard, or a total scam.
Answer, restock, and serve the rush.
More correct answers pulls the rope your way.
Answer, then shoot down the alien wave.
Answer, then tap to leap the frozen ridge.

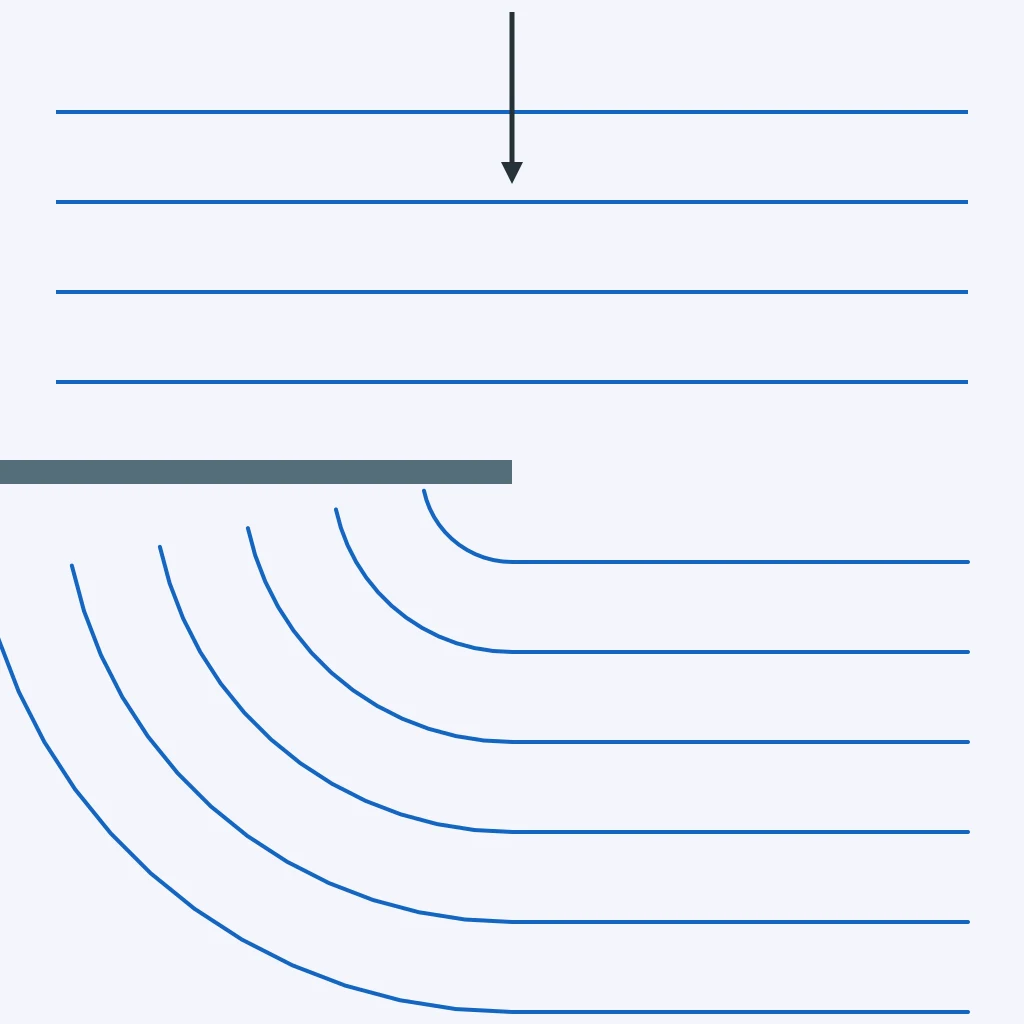

Use the figure. Straight wavefronts pass the end of a barrier and spread into the region behind it. Which wave behavior is shown?

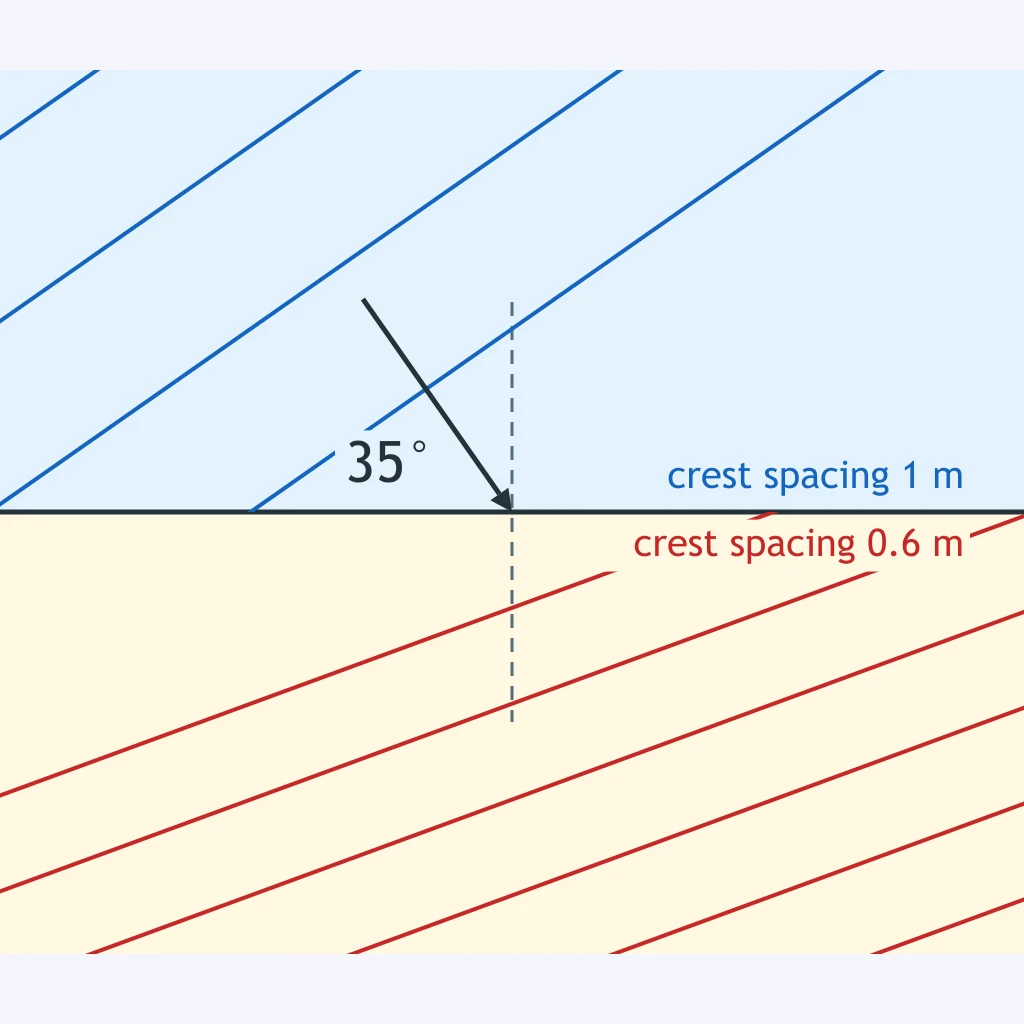

Use the figure. Wavefronts cross a boundary and change direction as their spacing changes. Which behavior is shown?

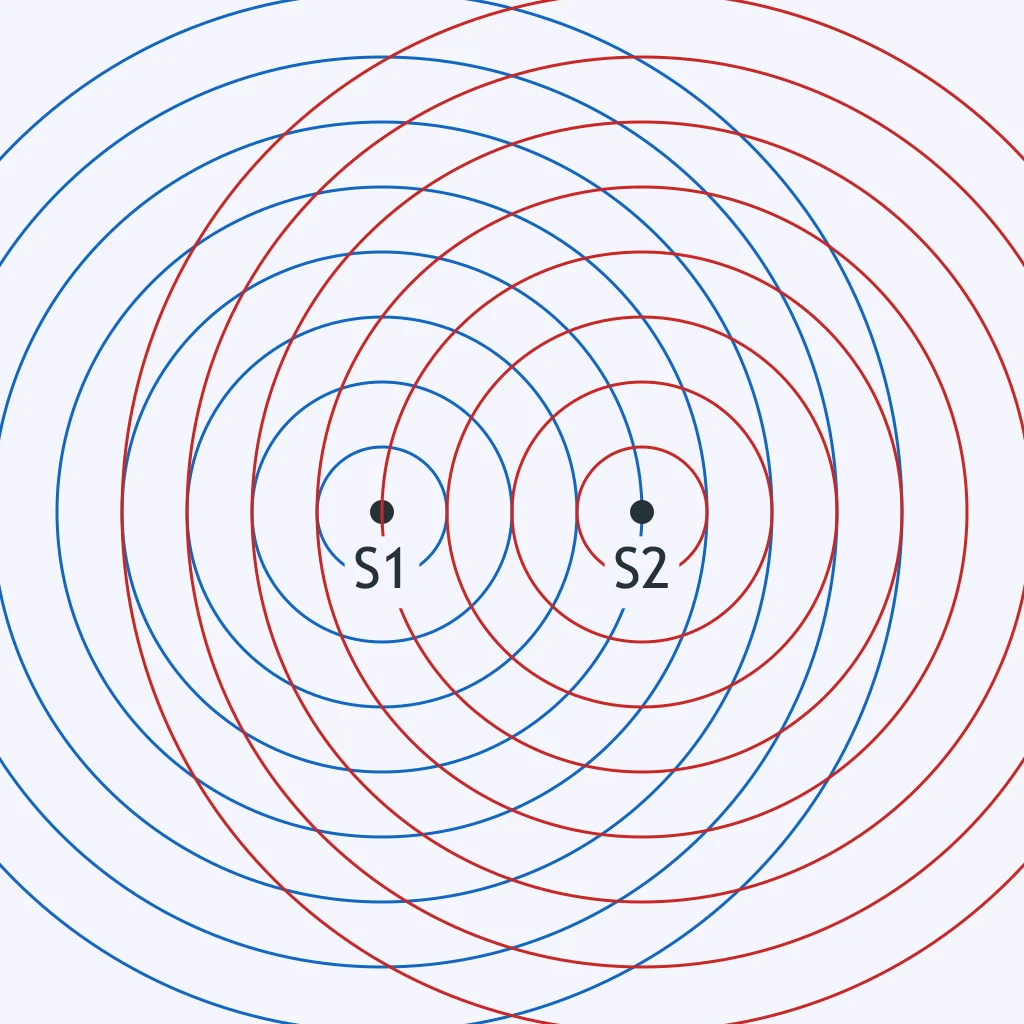

Use the figure. Two coherent sources make overlapping circular wavefronts. Which behavior creates the pattern of large and small disturbances?

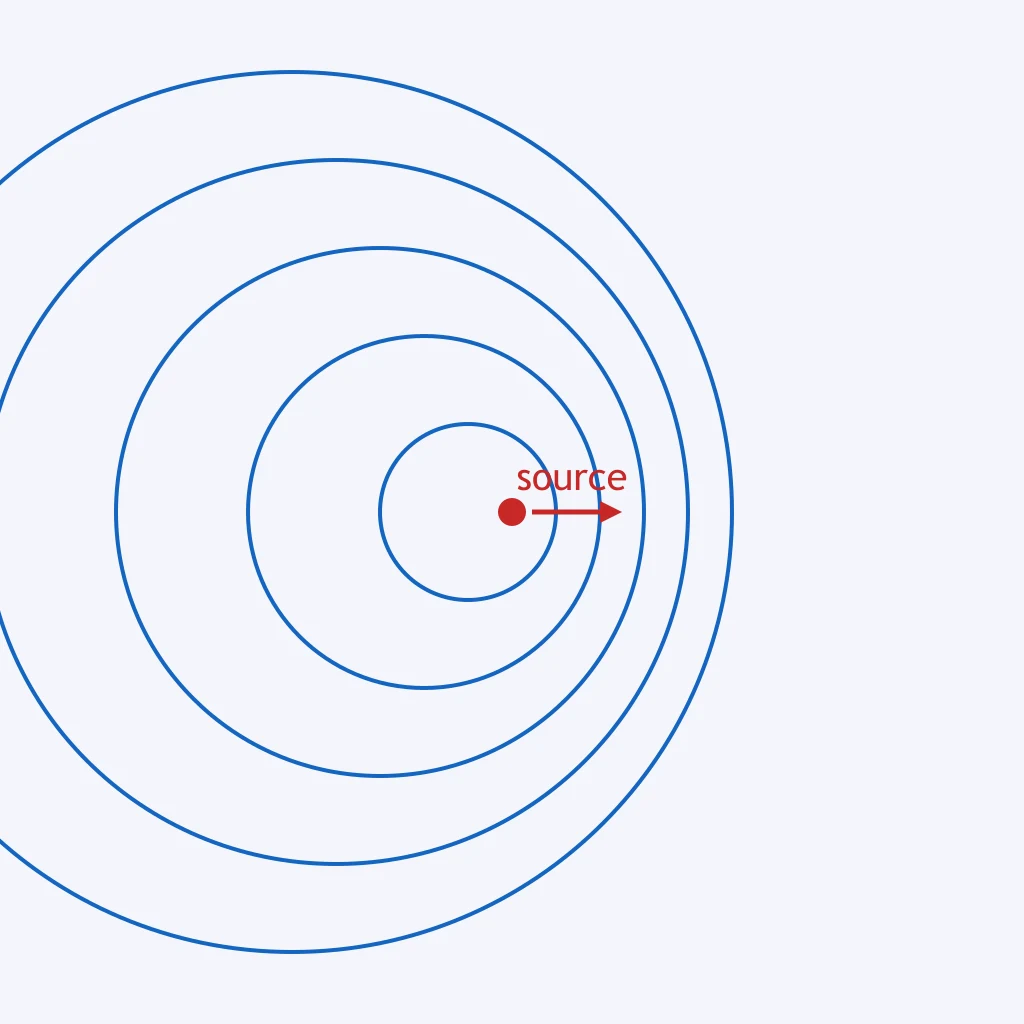

Use the figure. Circular wavefronts are crowded in front of a moving source and spread out behind it. What effect is shown?
Use the figure. The wave on a fixed string has points that stay still and loops that vibrate in place. What pattern is shown?

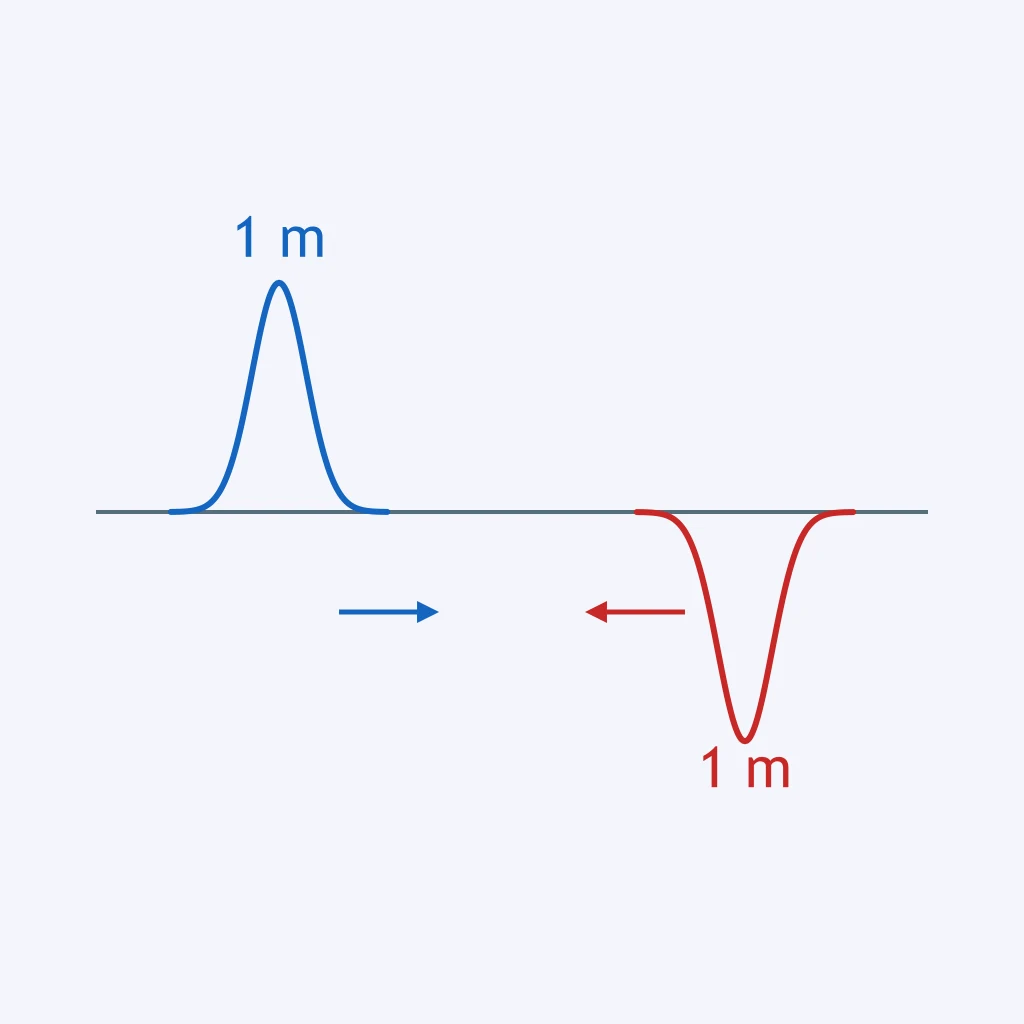

Use the figure. One upward pulse and one downward pulse move toward each other. What behavior occurs when they overlap?

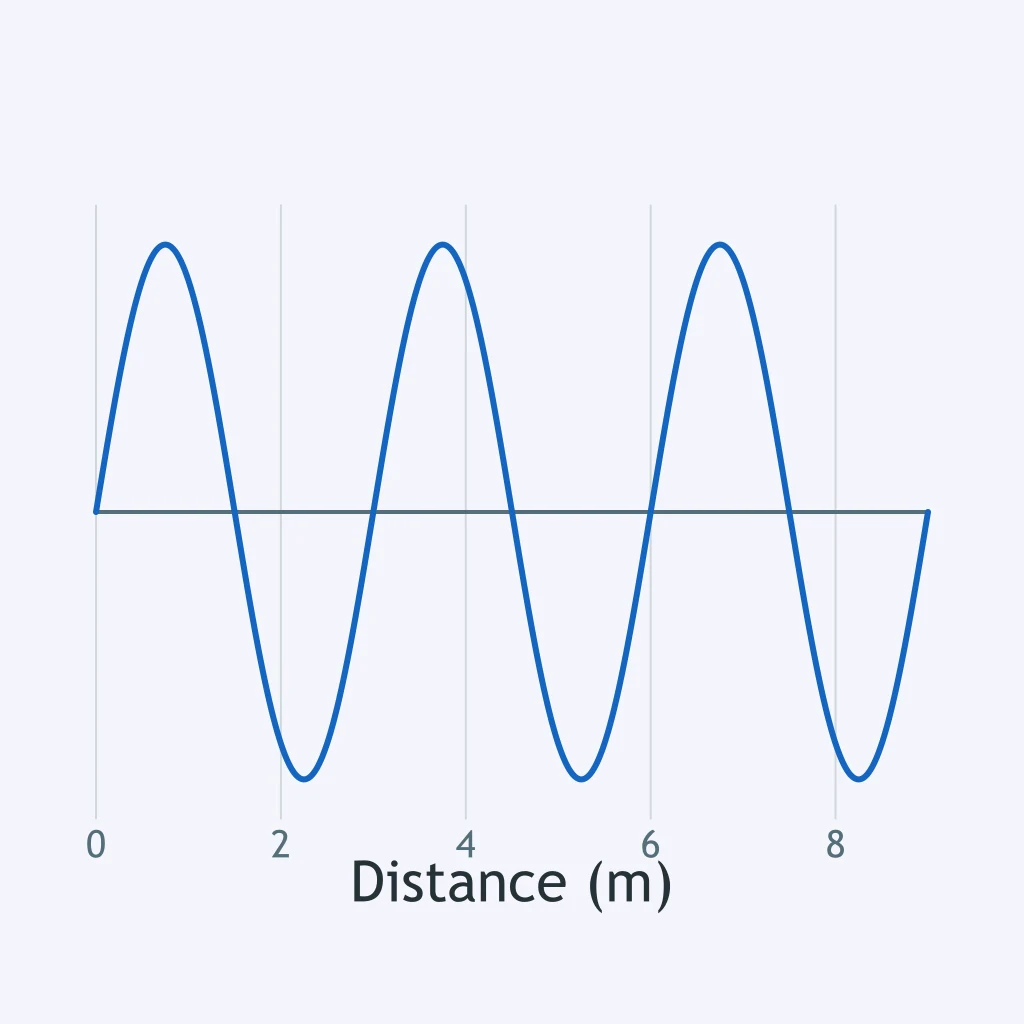

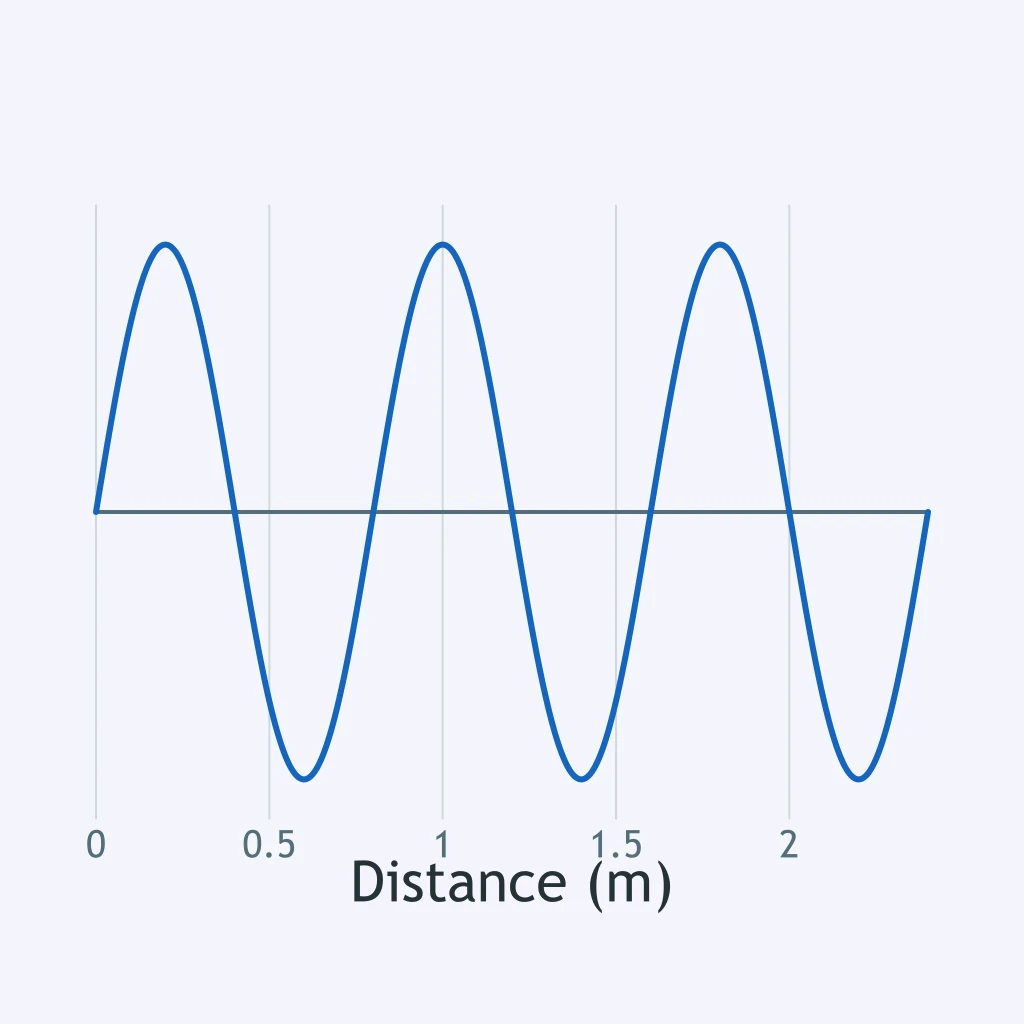

Use the figure. The wave travels at 6.0 m/s. What is its frequency?
Use the figure. The wave has frequency 4.0 Hz. What is its speed?
Use the figure. The period of the wave is 0.25 s. What is the wave speed?

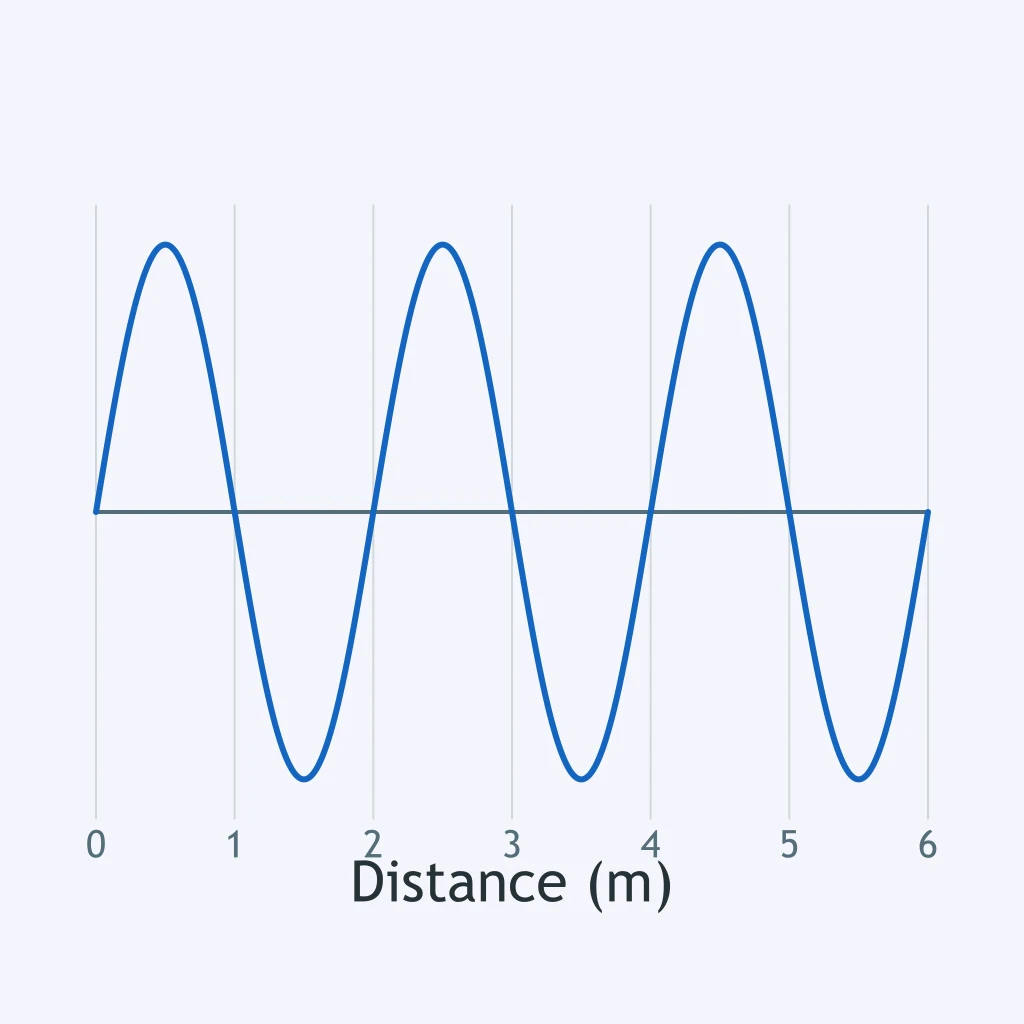

Use the figure. The wave travels at 12 m/s. What is its period?
Use the figure. The wave has frequency 2.5 Hz. What is its speed?

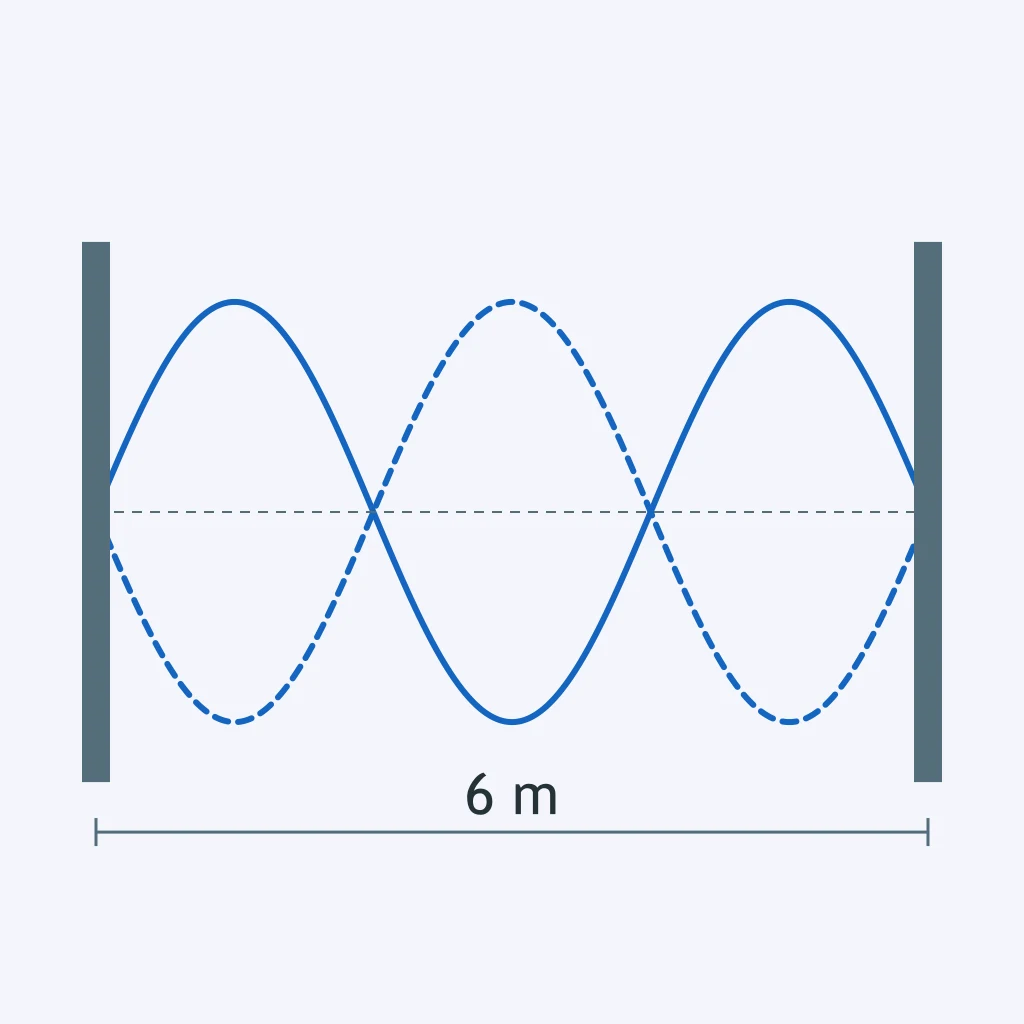

Use the standing-wave figure for a string fixed at both ends. How many nodes are shown in total?

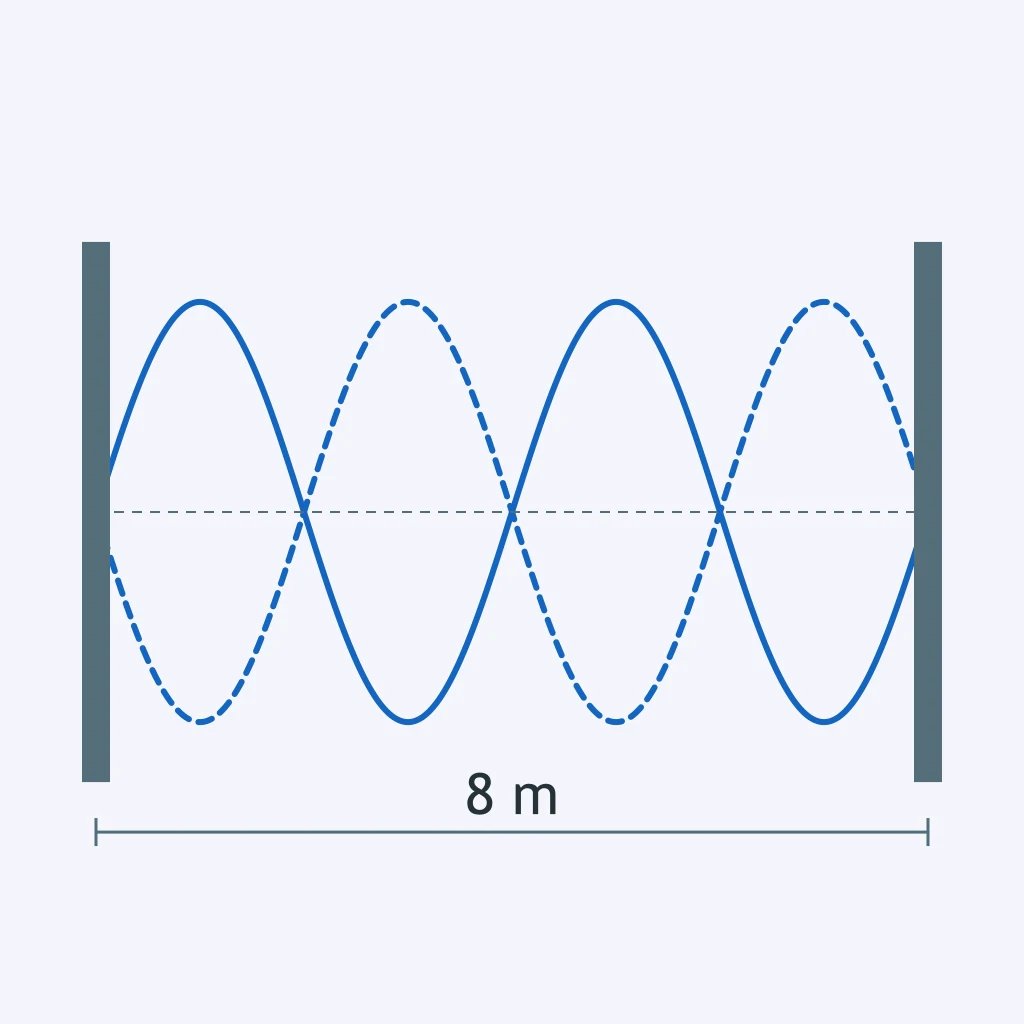

Use the standing-wave figure for a string fixed at both ends. How many antinodes are shown?

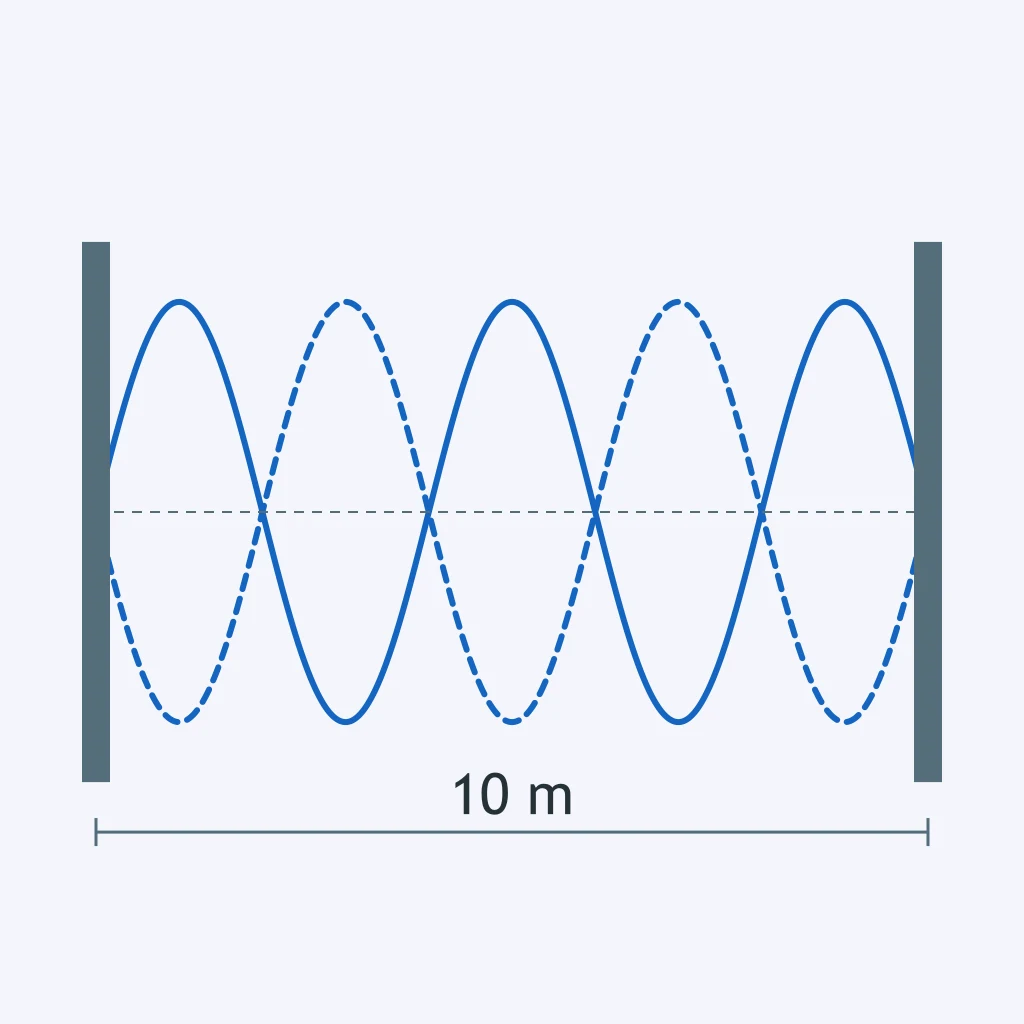

Use the standing-wave figure for a string fixed at both ends. How many complete loops are shown?
A tuning fork has frequency 440 Hz in air where sound travels at 343 m/s. What is the wavelength of the sound?
A sonar pulse in water travels at 1500 m/s and its echo returns 2.0 s after the pulse is sent. How far away is the reflecting object?
A wave on a rope has wavelength 0.60 m and period 0.20 s. What is its speed?
An electromagnetic wave travels at m/s and has frequency Hz. What is its wavelength?
A 1.50 m string fixed at both ends vibrates in its fundamental mode. If wave speed on the string is 120 m/s, what is the fundamental frequency?
Two tuning forks are sounded together at 256 Hz and 260 Hz. What beat frequency is heard?
A sound wave has frequency 50 Hz. What is its period?
Adjacent compressions in a sound wave are 0.85 m apart, and the frequency is 400 Hz. What is the wave speed?
A rope pulse reaches a wall where the rope is tied down and comes back upside down. Which statement best explains this?
Water waves move from deep water into shallow water while the source frequency stays the same, and the crests get closer together. What happened?
Two identical upward pulses on a spring arrive at the same place at the same time. What happens at that instant?
An upward pulse and an equal downward pulse overlap completely on a rope. What does superposition predict?
A student hears a band around a corner, even though a wall blocks the direct line of sight. Which behavior lets sound spread there?
A siren moves toward a stationary listener in still air. Which effect is heard, and what changes?
A swing is pushed once every natural period, and its motion grows larger. Which wave idea describes the growth?
A shout returns from a cliff as an echo. If the air is the same on the trip out and back, what happened to the sound's speed?
