How are the lamps connected in this diagram?

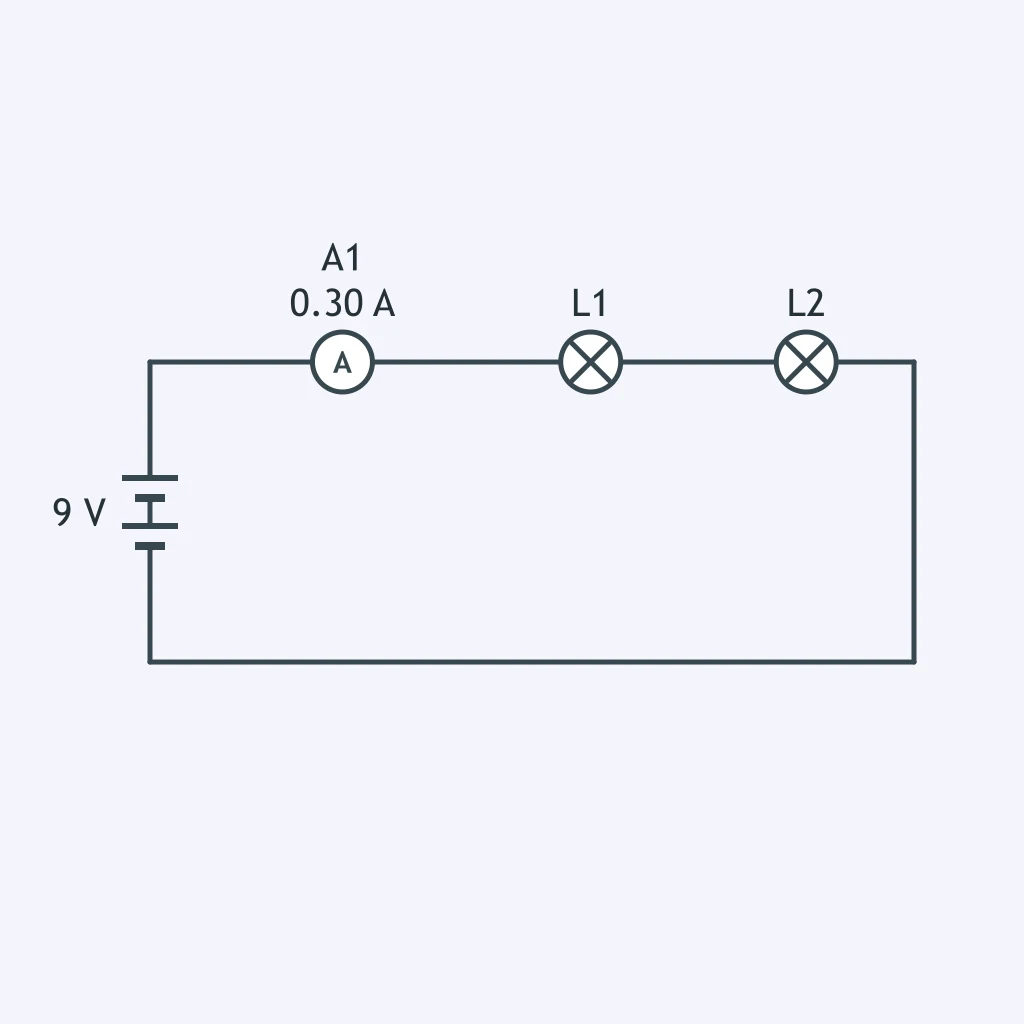

Using the ammeter reading, what current flows through L2?

Four 140 Ω resistors are connected in series. What is their total resistance?

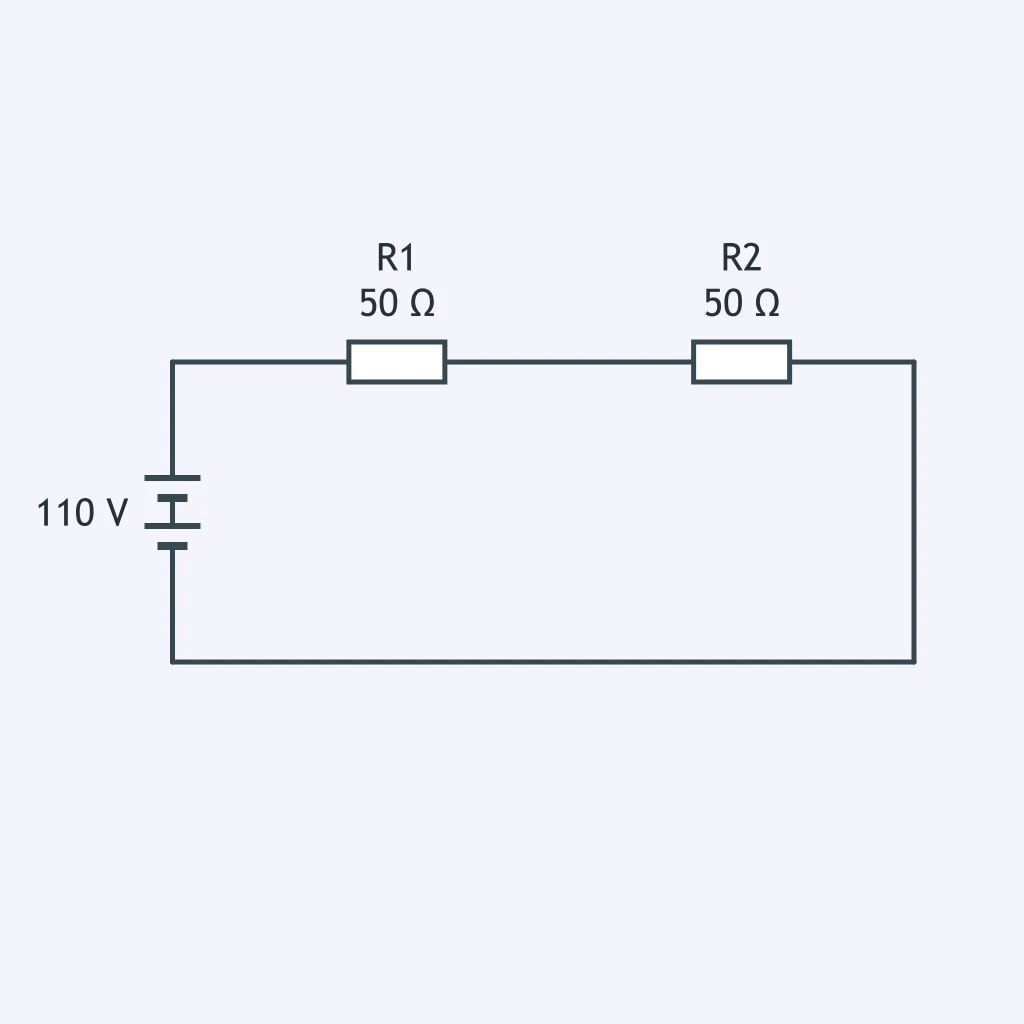

What voltage is across R2 in the circuit shown?

Three resistors in series have voltage drops of 3 V, 4 V, and 5 V. What is the source voltage?

Ana adds another resistor in series while keeping the source voltage unchanged. What happens to the circuit current?

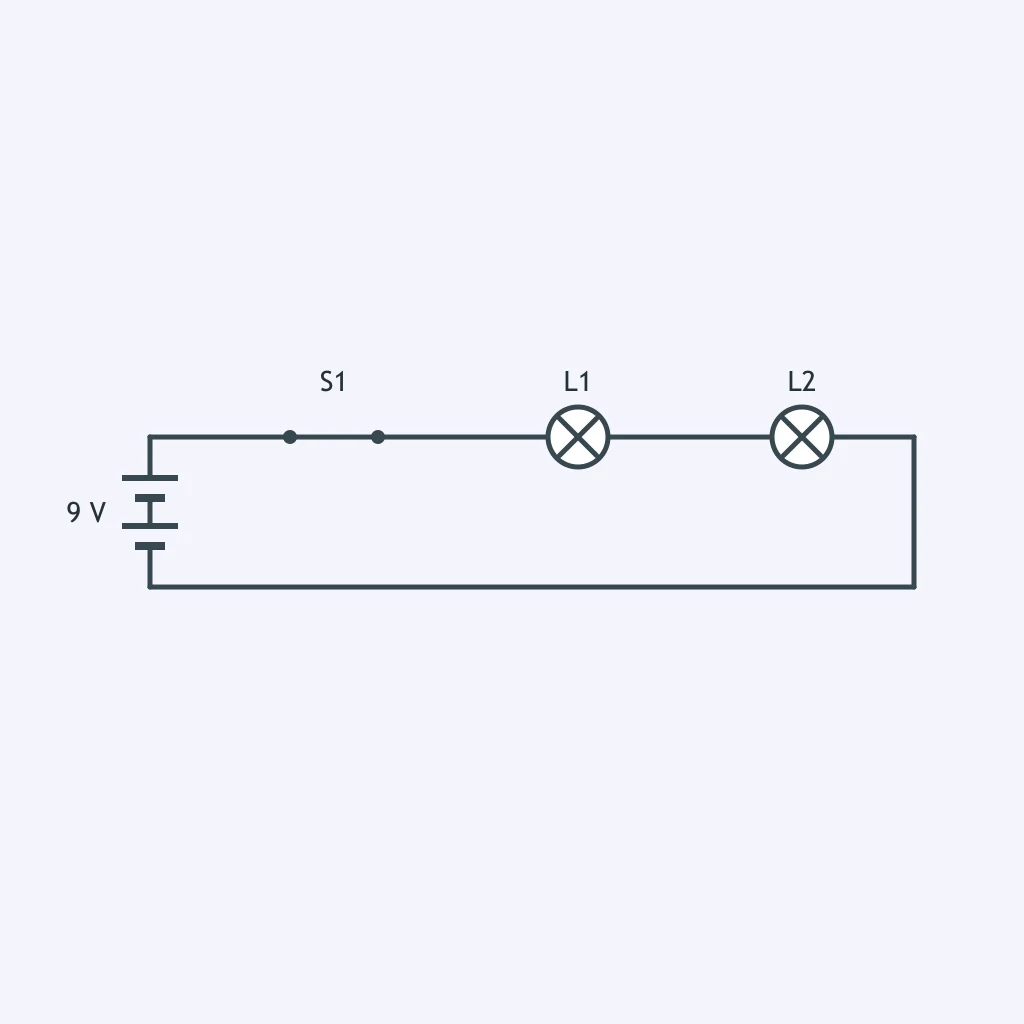

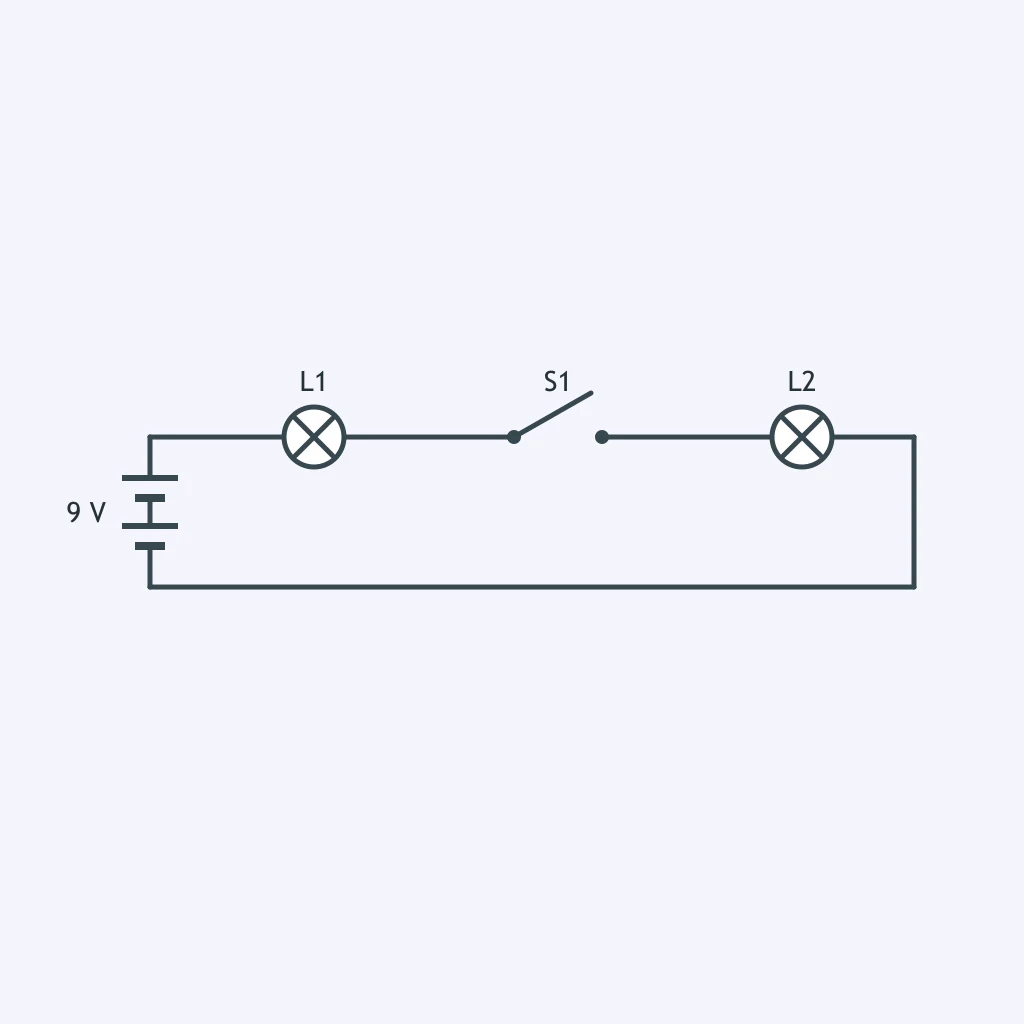

What happens to the lamps with S1 in the position shown?

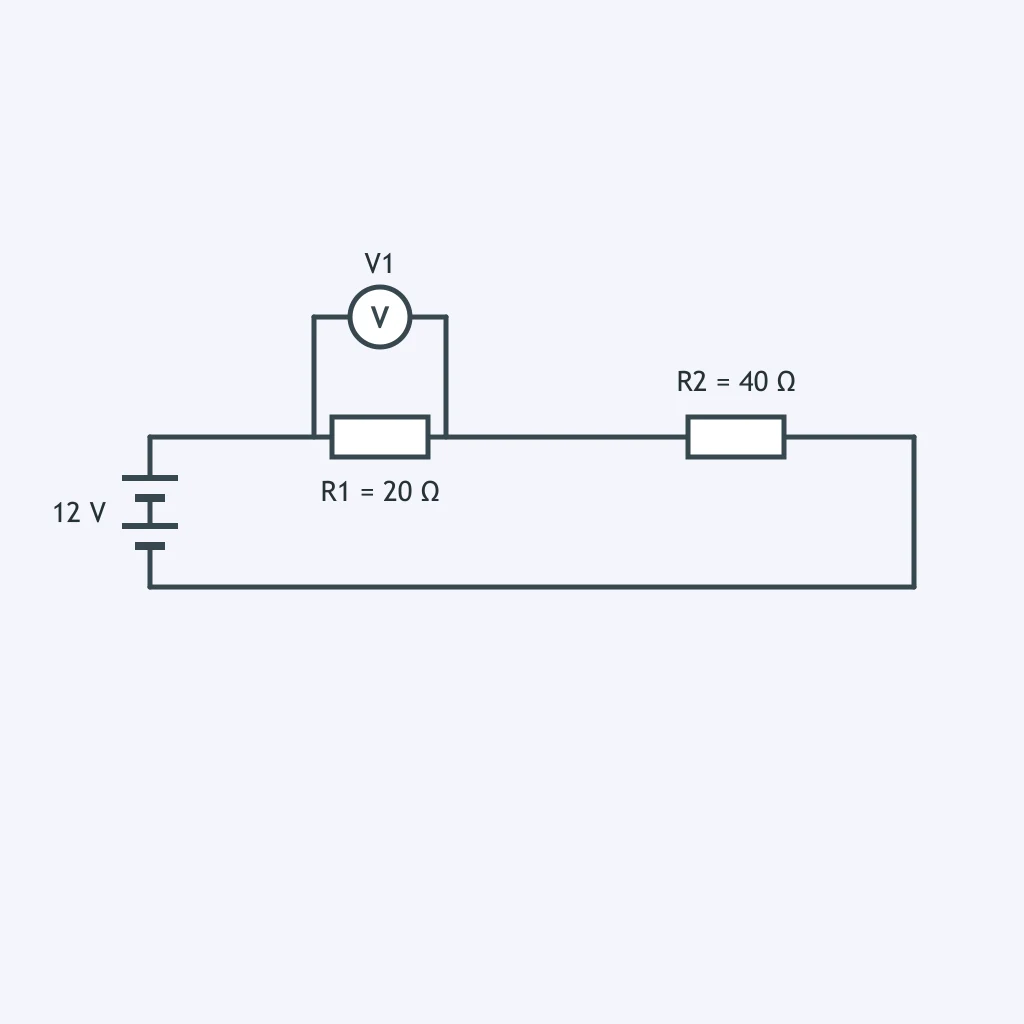

Why is V1 connected to both ends of R1?

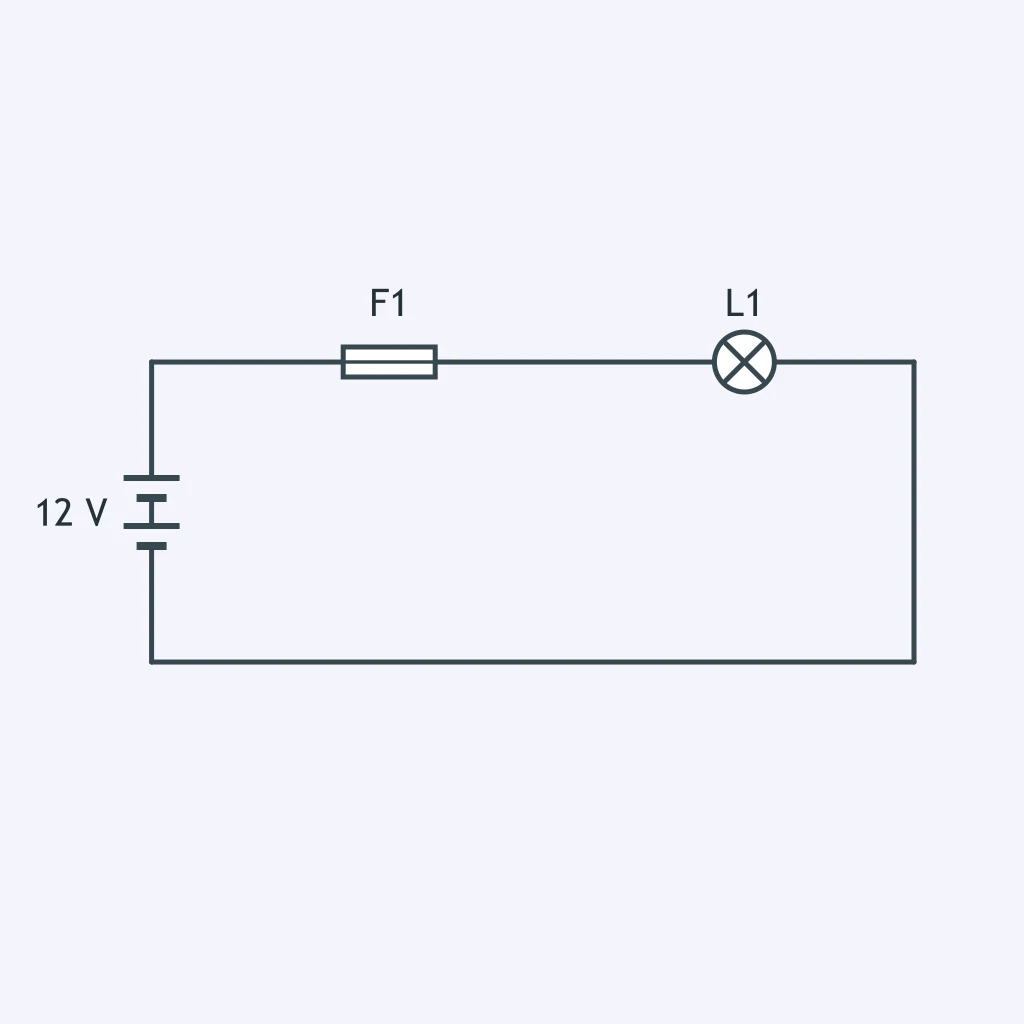

Why is F1 placed in the same current path as the lamp?

Which is a practical advantage of connecting several loads in series rather than giving each its own branch?

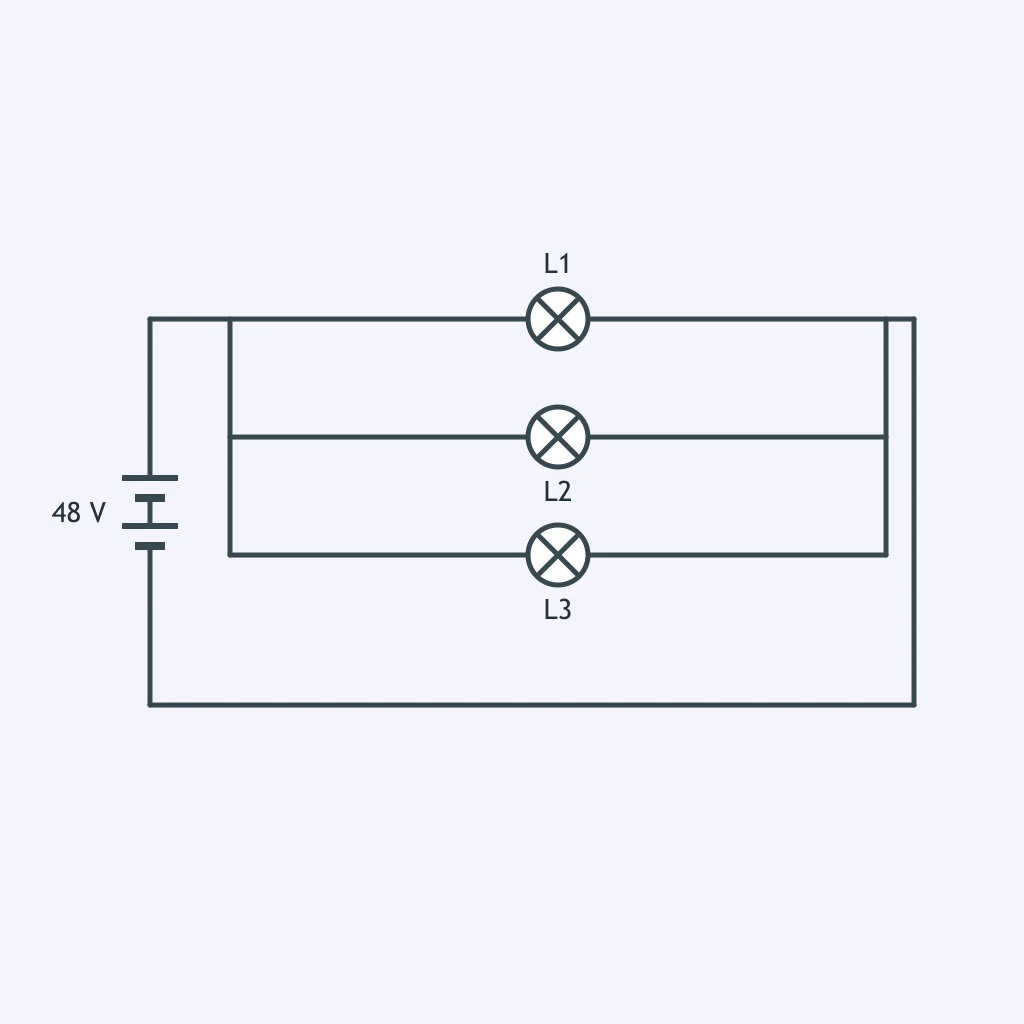

How many separate lamp branches can carry current in this circuit?

What is the voltage across L2 in the diagram?

Three parallel branches carry 0.20 A, 0.30 A, and 0.40 A. What current does the source supply?

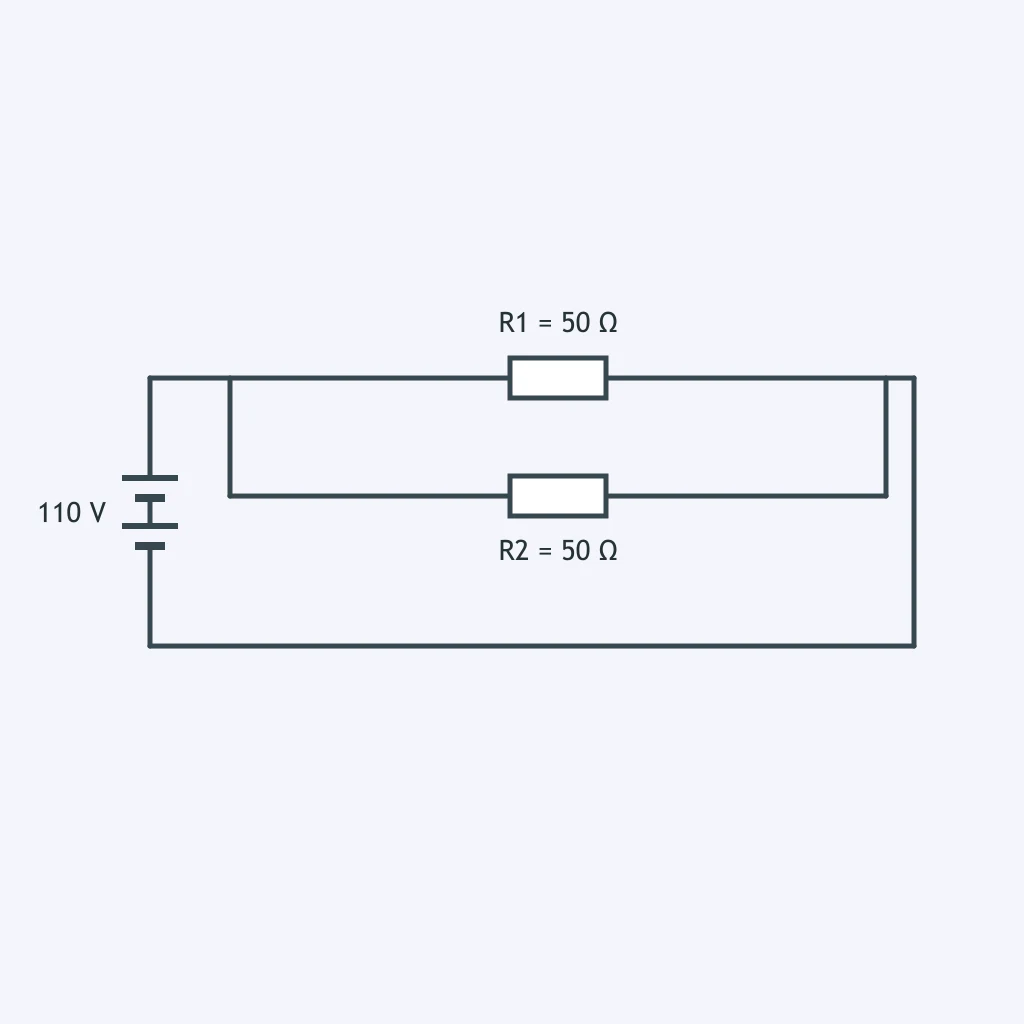

What is the equivalent resistance of the two resistors shown?

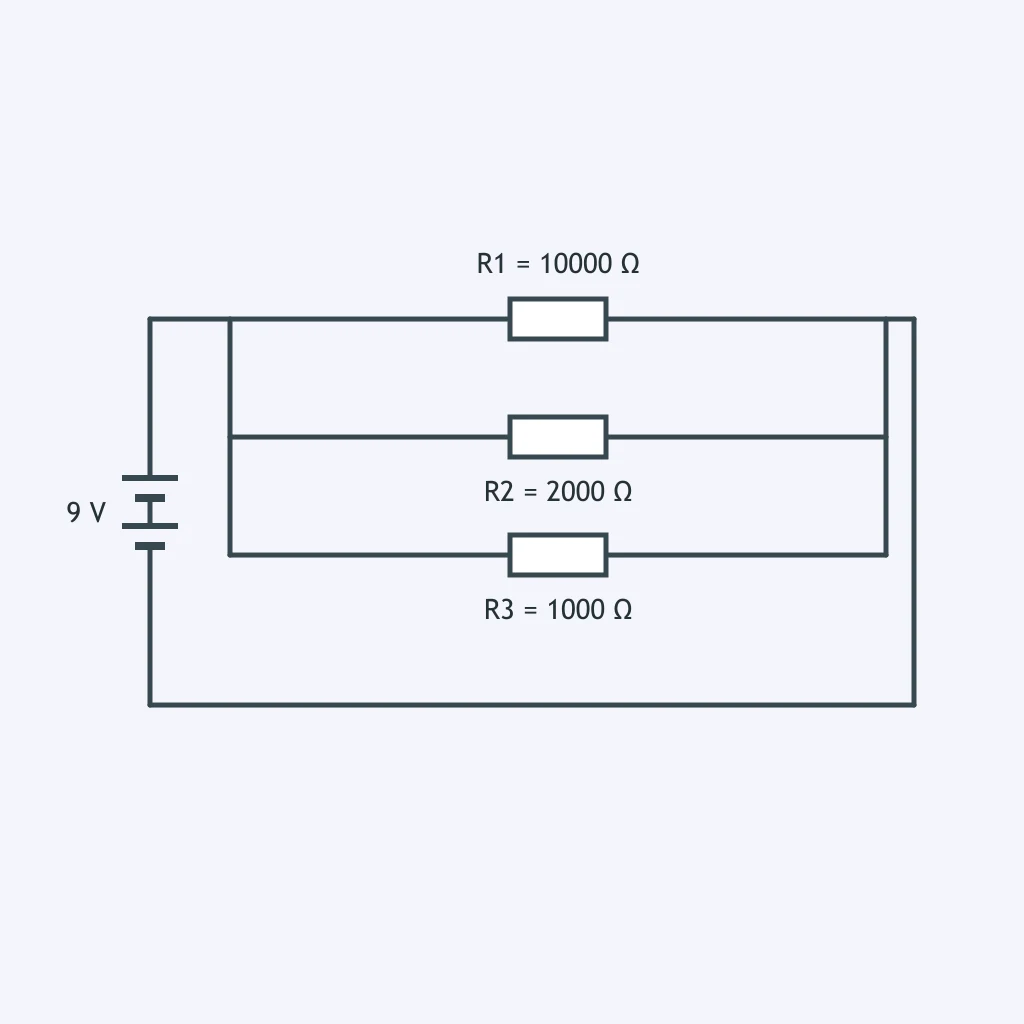

Which resistor carries the greatest current?

Three 80 Ω resistors are connected in parallel across 48 V. What current flows through each resistor?

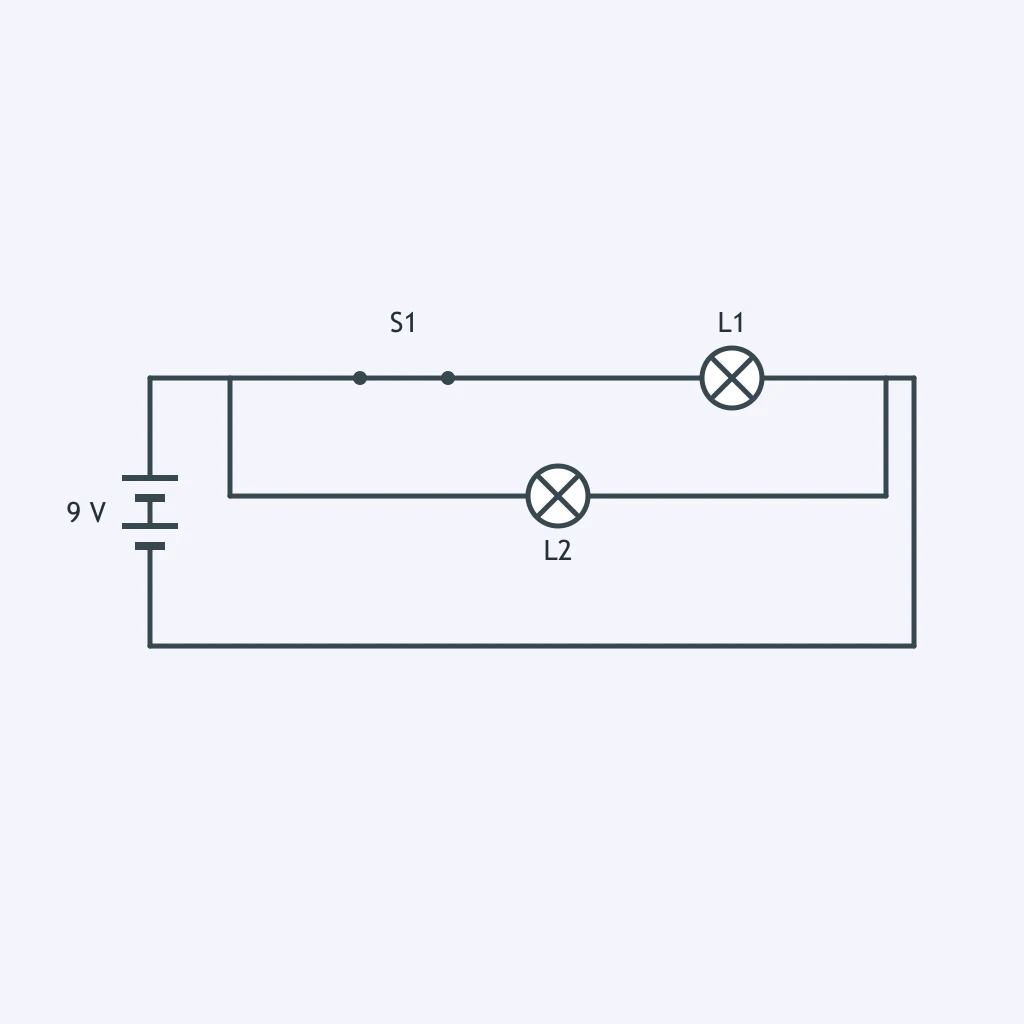

When S1 is opened, what happens to L2's brightness with an ideal battery?

Another resistor branch is added to a parallel circuit. How does the equivalent resistance change?

Which arrangement lets household appliances receive the same supply voltage and be switched independently?

More appliances are plugged into a household circuit. Why can using too many at once become dangerous?

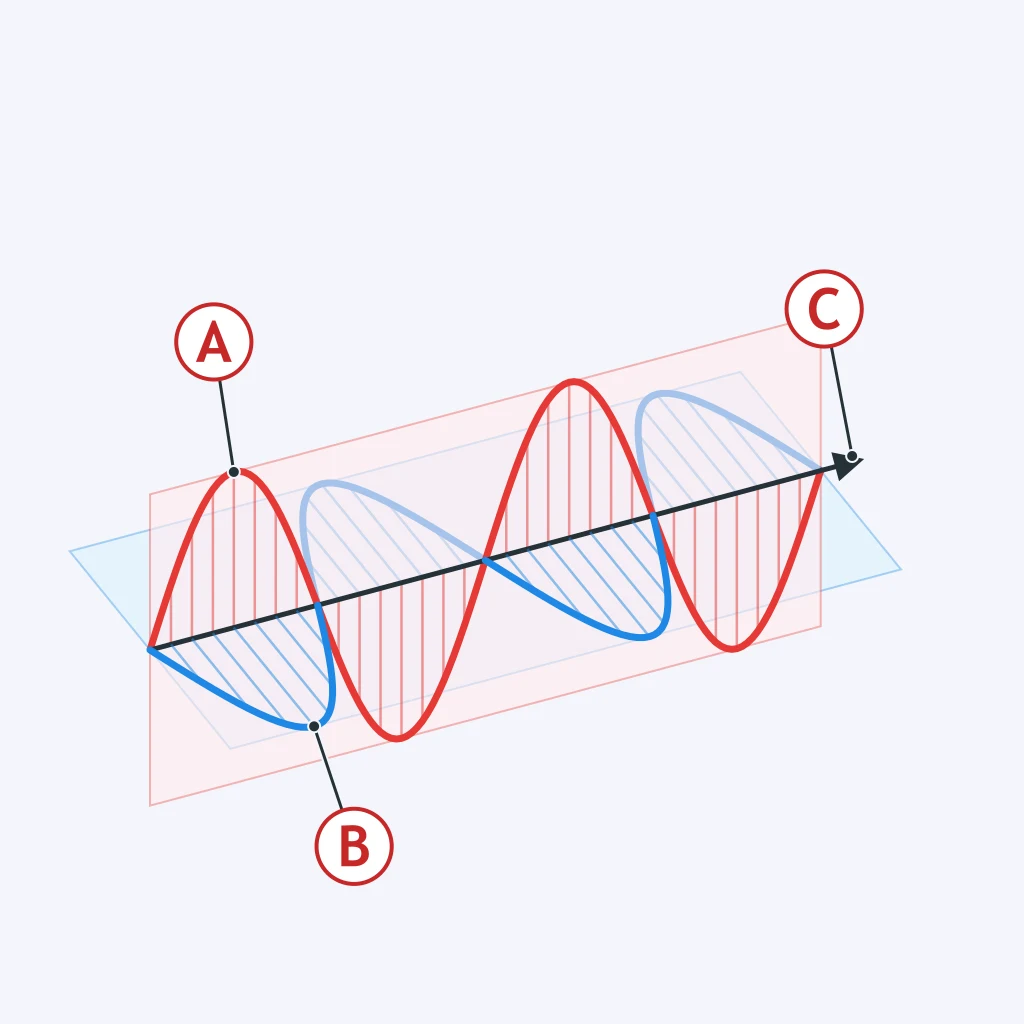

How is the field marked A oriented relative to the direction marked C?

Which motion of electric charges can generate electromagnetic radiation?

A light signal and a sound signal are sent across a vacuum chamber. Which can cross the vacuum to reach a detector?

A radio signal and visible light travel through a vacuum. Which travels faster?

Which wave property tells how many complete cycles pass a fixed point each second?

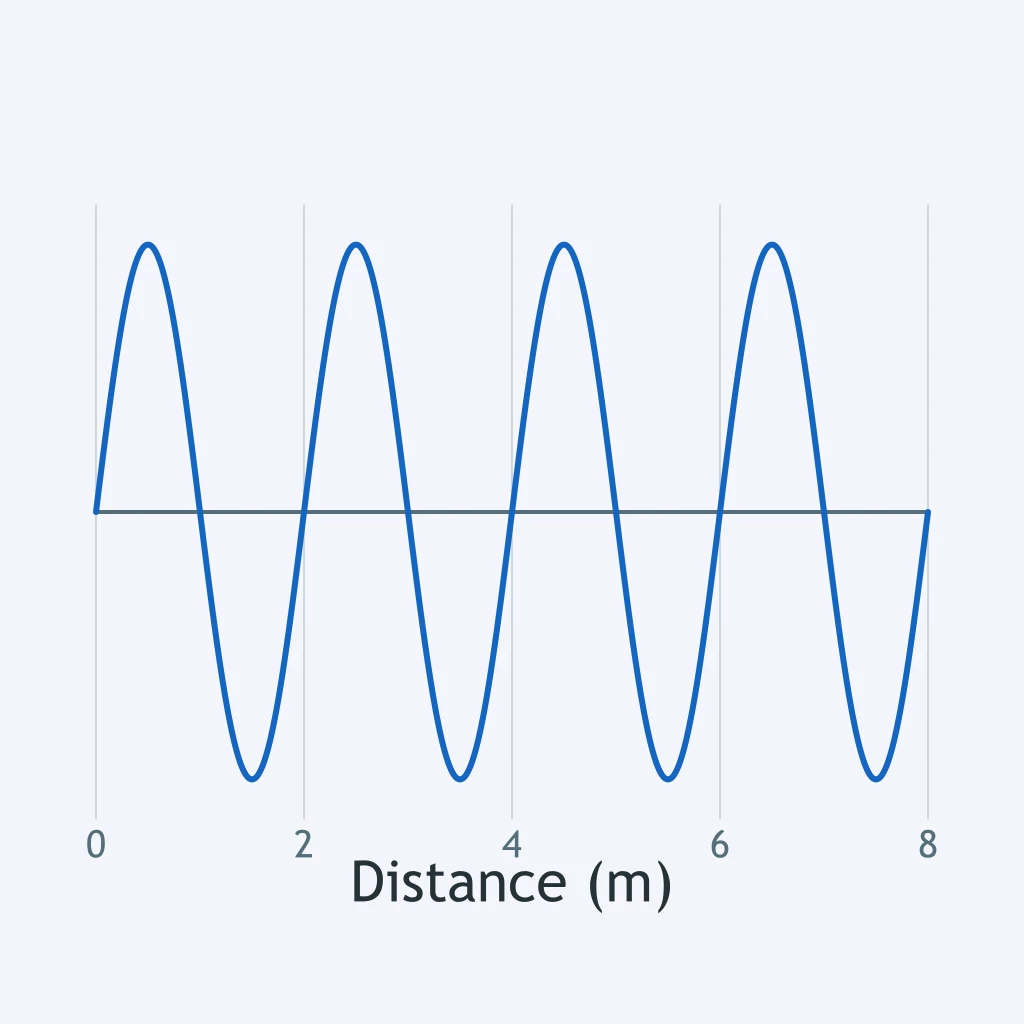

Use the distance axis. What is the wavelength of this wave?

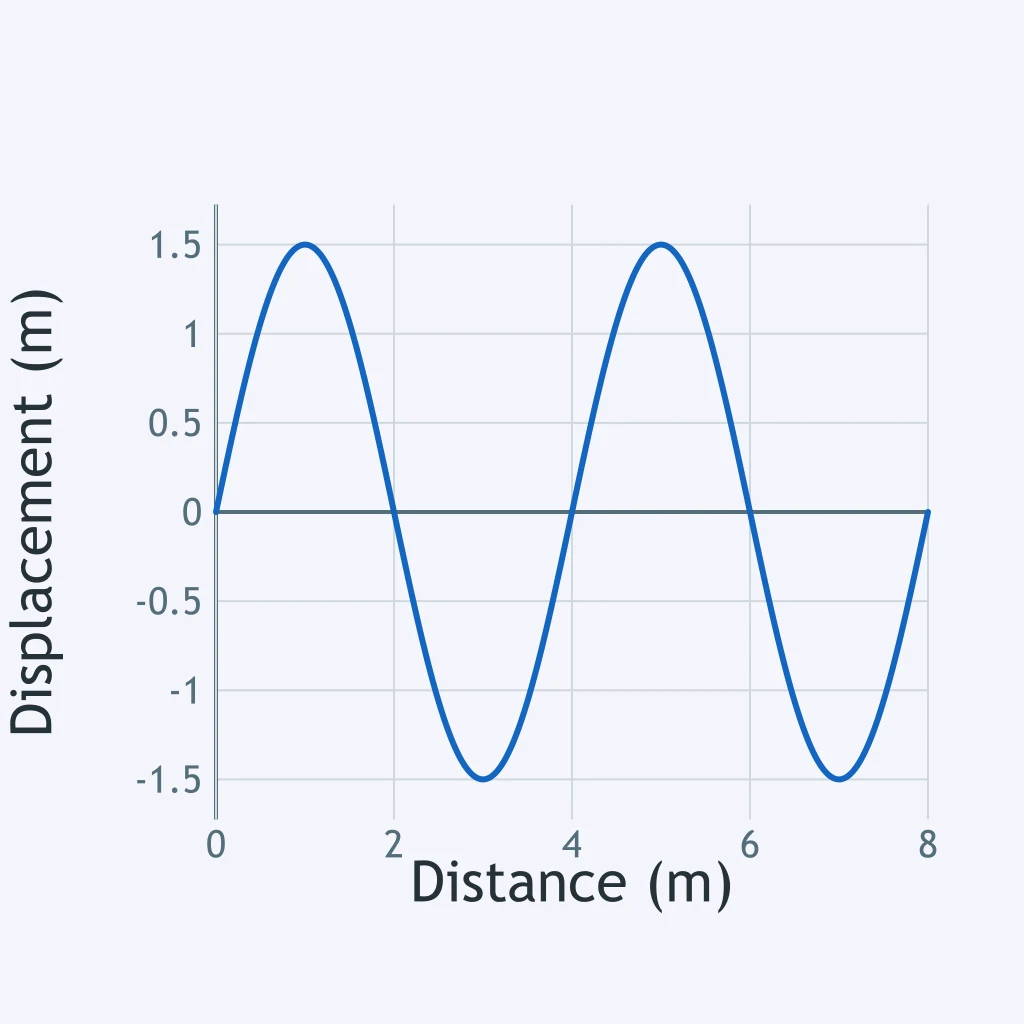

Read the displacement axis. What is the amplitude of this wave?

An electromagnetic wave's frequency doubles in a vacuum. What happens to its wavelength?

Compared with an infrared photon, a typical X-ray photon has a shorter wavelength. How does its energy compare?

Which electromagnetic region lies between microwaves and visible light?

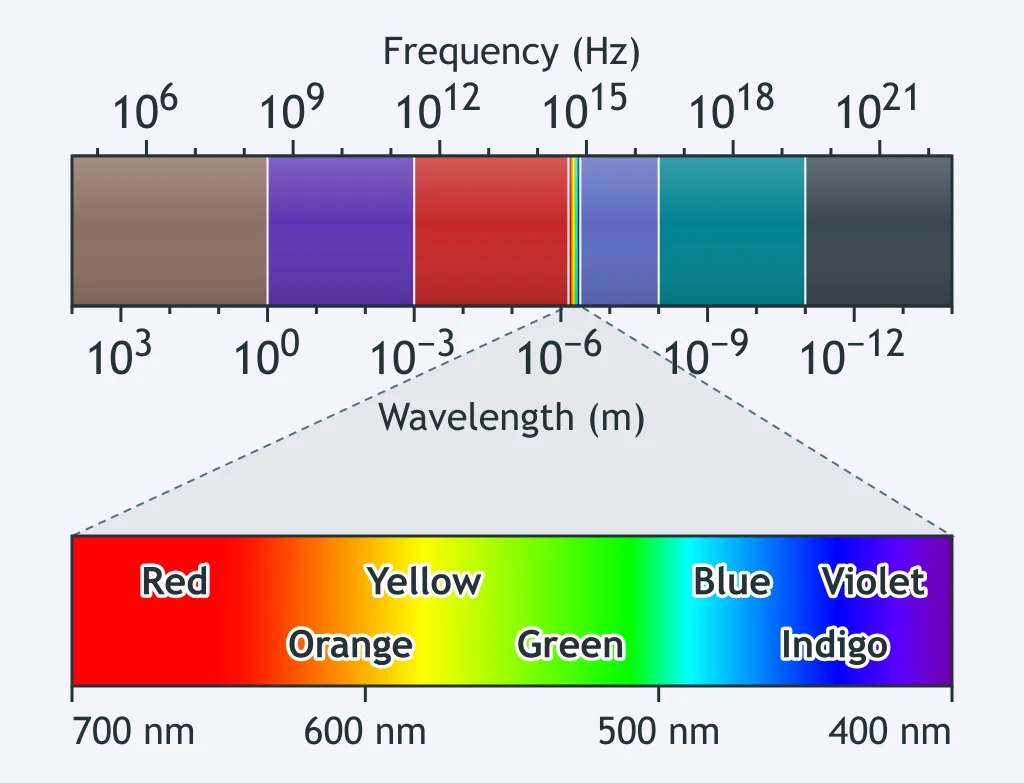

Use the expanded color strip. Which listed color has the highest frequency?

Which sequence runs from longer to shorter wavelengths?

A station in Cebu broadcasts an AM program. Which part of the electromagnetic spectrum carries its signal?

Which electromagnetic waves are used in an oven that heats food by transferring energy to polar molecules such as water?

Which radiation commonly carries commands from a conventional television remote to the television?

Which radiation is commonly used to produce a medical image of a suspected broken bone?

What is the main effect of gamma radiation on cancer cells during treatment?

Before a beach trip to Boracay, Liza applies sunscreen. Which radiation is it designed to protect her skin against?

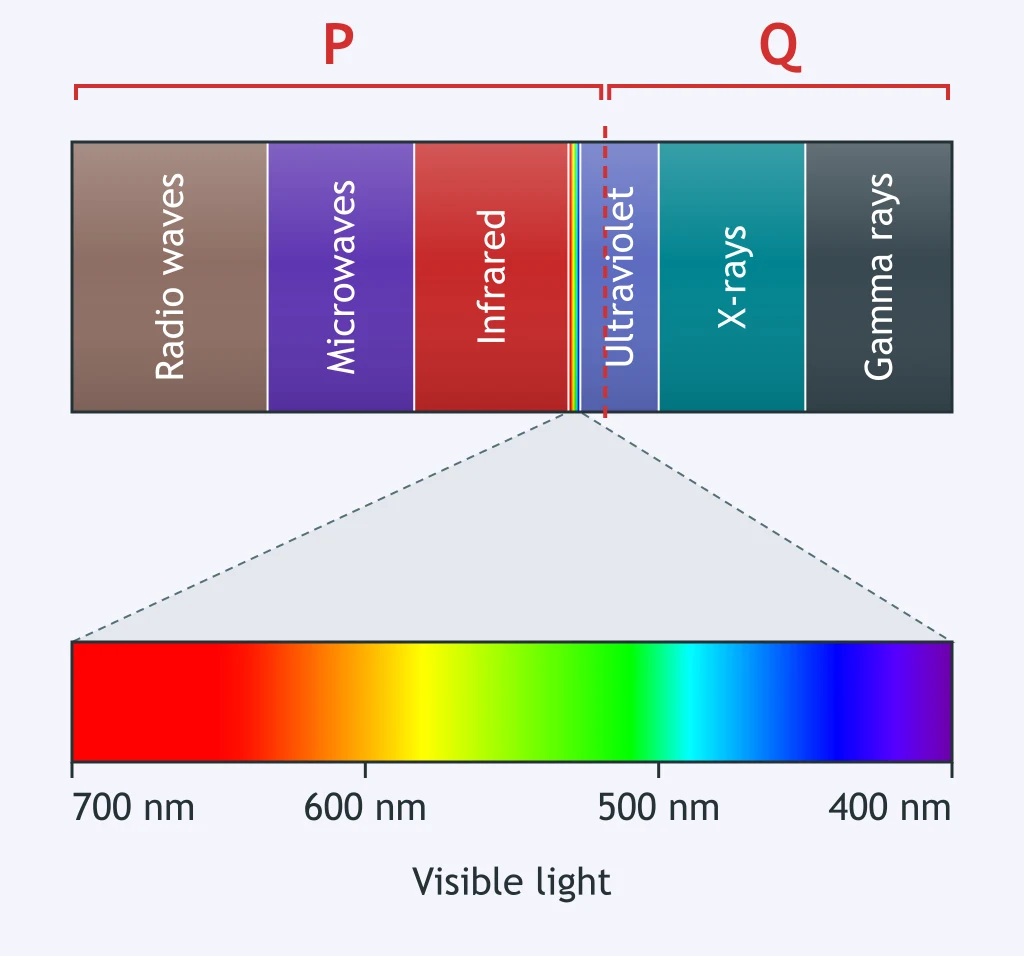

Which bracket marks radiation with photons energetic enough to remove electrons from atoms?

Which statement explains why doctors weigh benefits against risks before ordering a diagnostic X-ray?
