Identify force types and match situations to free-body diagrams.
#physics
40 questions
One question set, multiple game modes. Tap any game to see it in action. Not sure which to pick?
Answer to place stones and capture territory.
Outrun the snow together.
Earn blasts, then hunt the other team.
Answer to earn energy, then climb.
The class blasts through walls together.
Bid on mystery lots. Most money wins.
Sell tours. Nice, standard, or a total scam.
Answer, restock, and serve the rush.
More correct answers pulls the rope your way.
Answer, then shoot down the alien wave.
Answer, then tap to leap the frozen ridge.

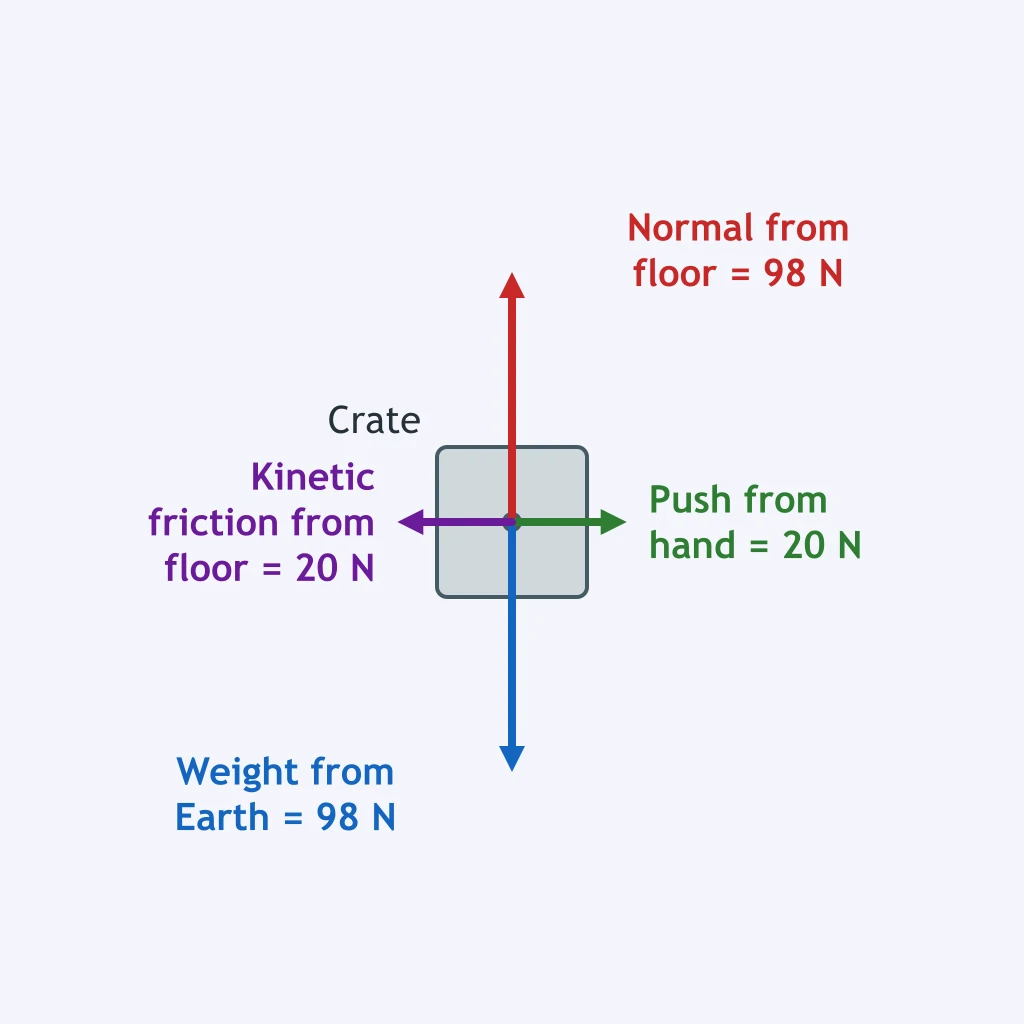

The diagram shows every force acting on a crate. Right is positive. Which situation does this diagram represent?

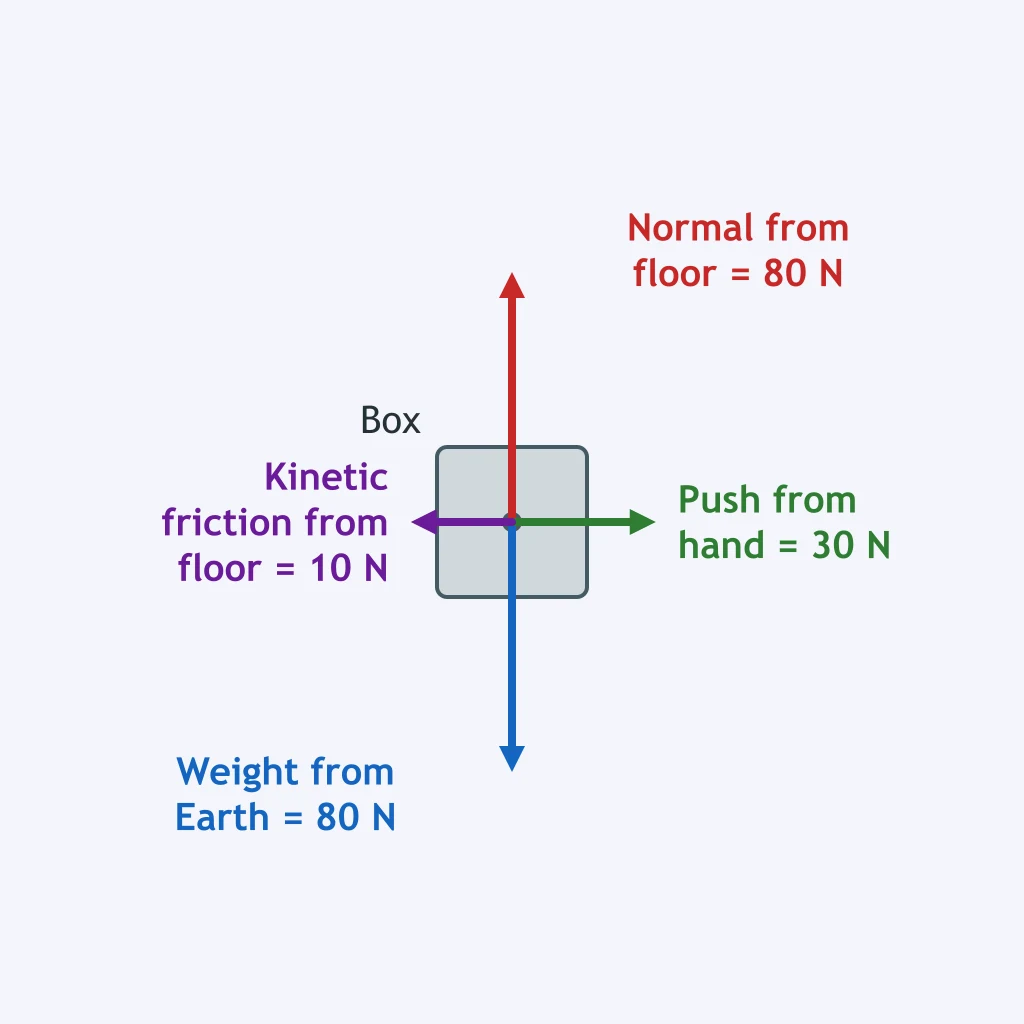

The diagram shows every force on a box. Right is positive. Which situation is represented?
The diagram shows every force on a puck moving to the right on a level surface. Right is positive. Which situation matches it?

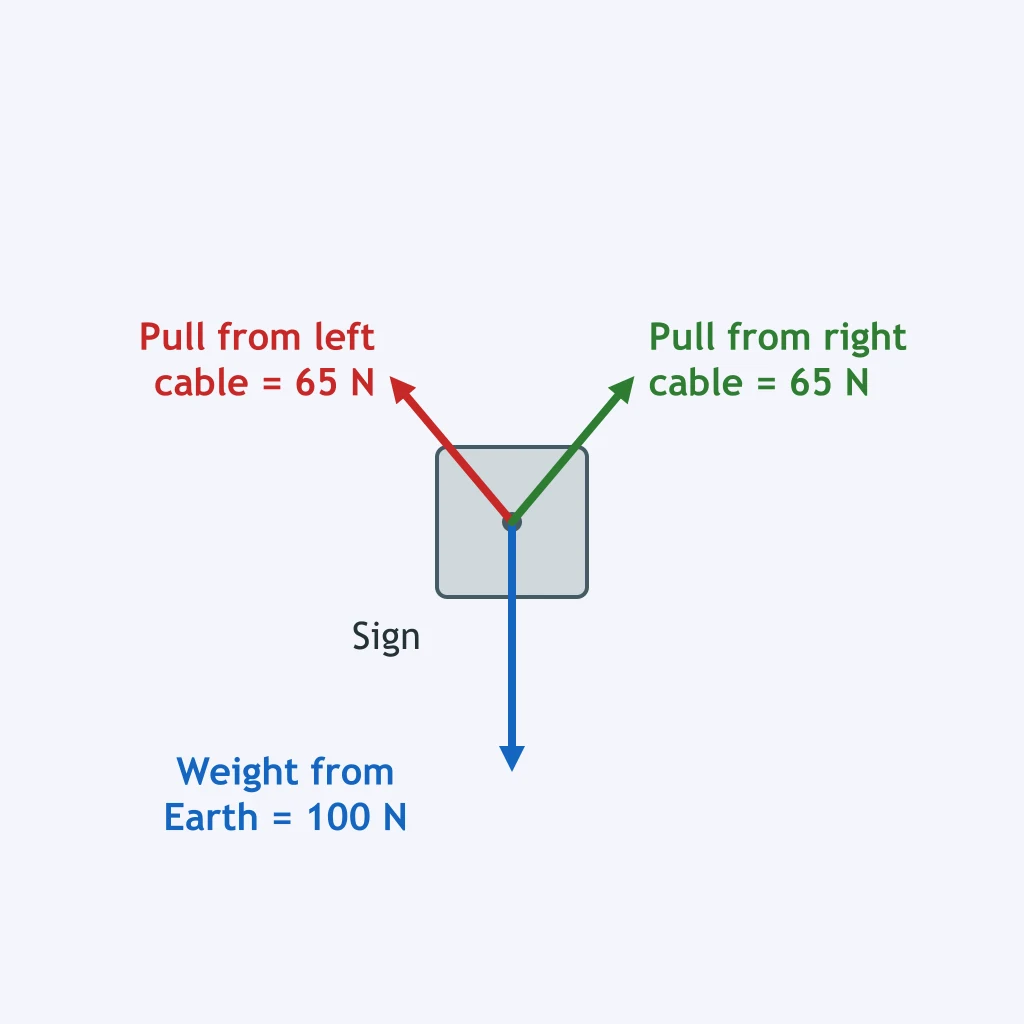

The diagram shows every force on a sign. Up is positive. Which situation does it represent?

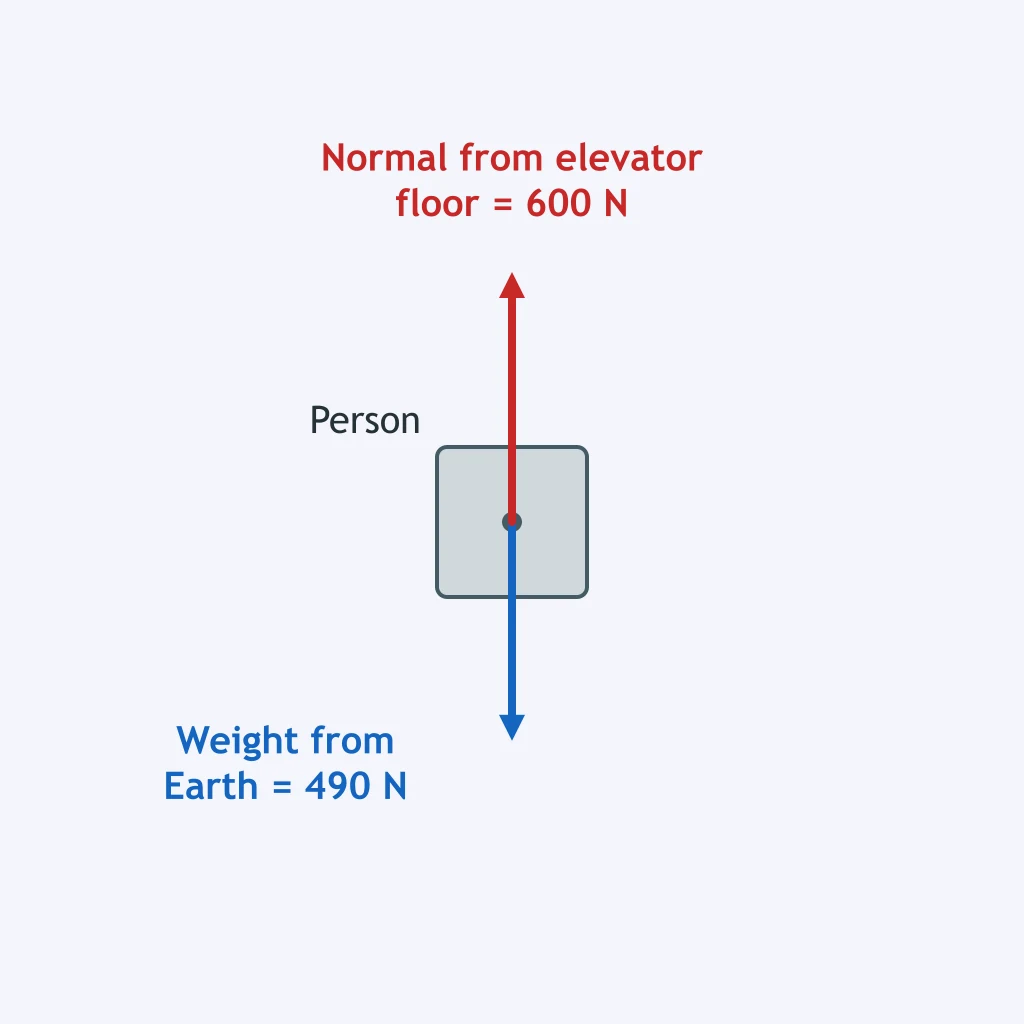

The diagram shows every force on a person in an elevator. Up is positive. Which situation is represented?

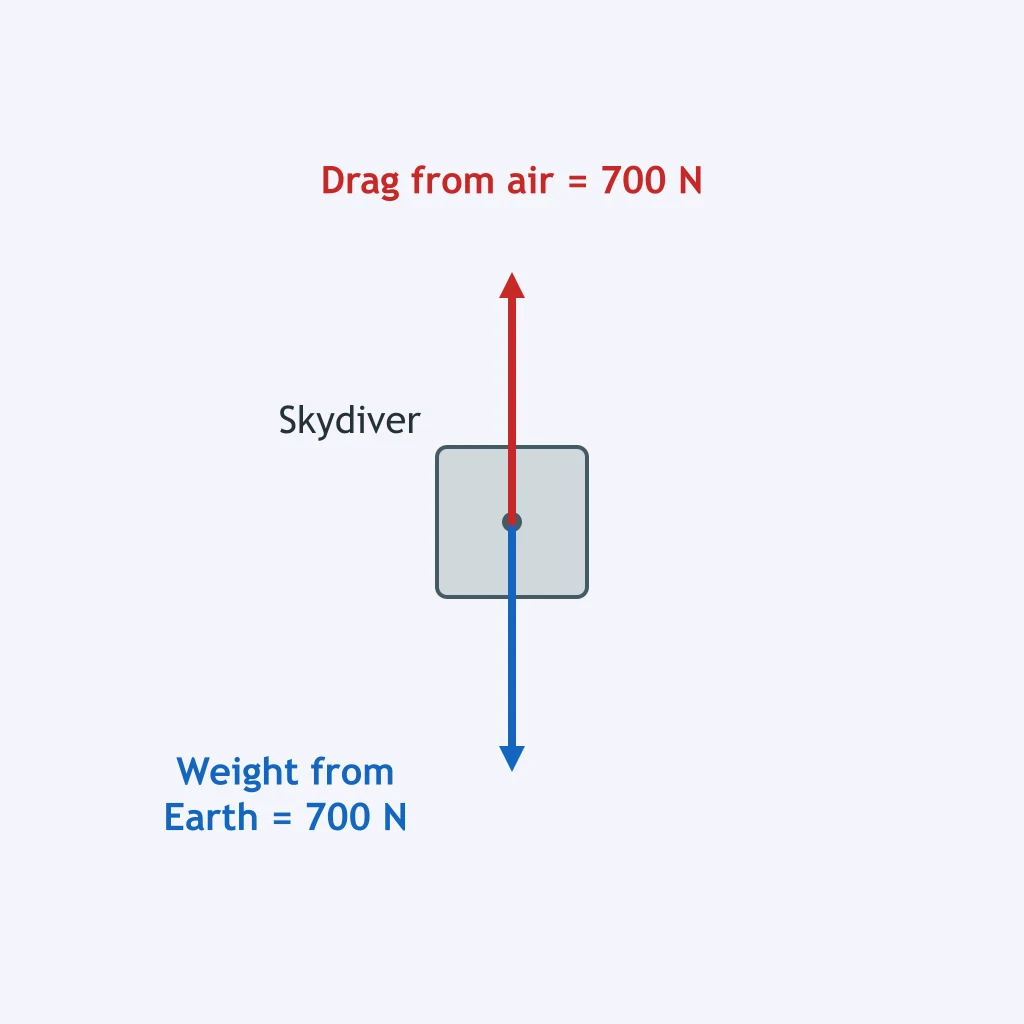

The diagram shows every force on a skydiver moving downward. Up is positive. Which situation does it represent?

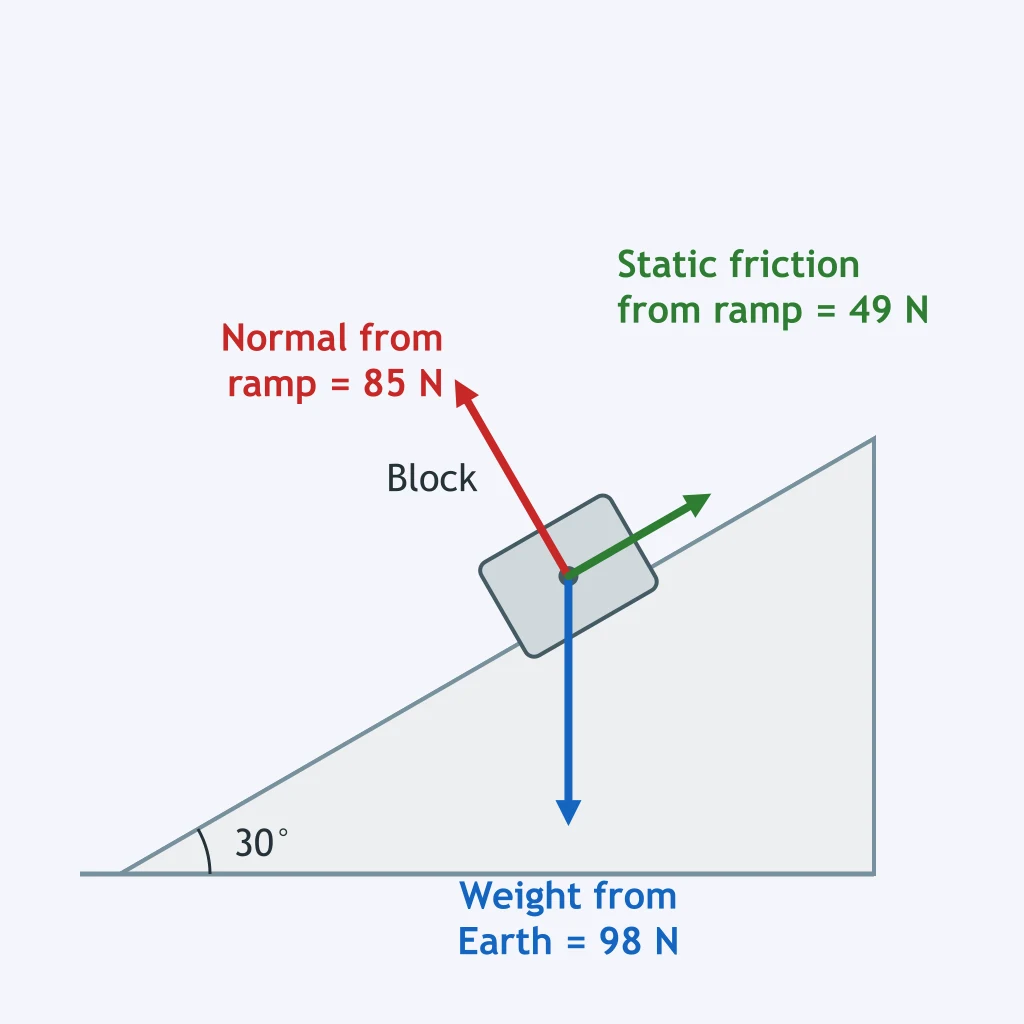

The diagram shows every force on a block on a rough ramp. Up the ramp is positive. Which situation matches it?

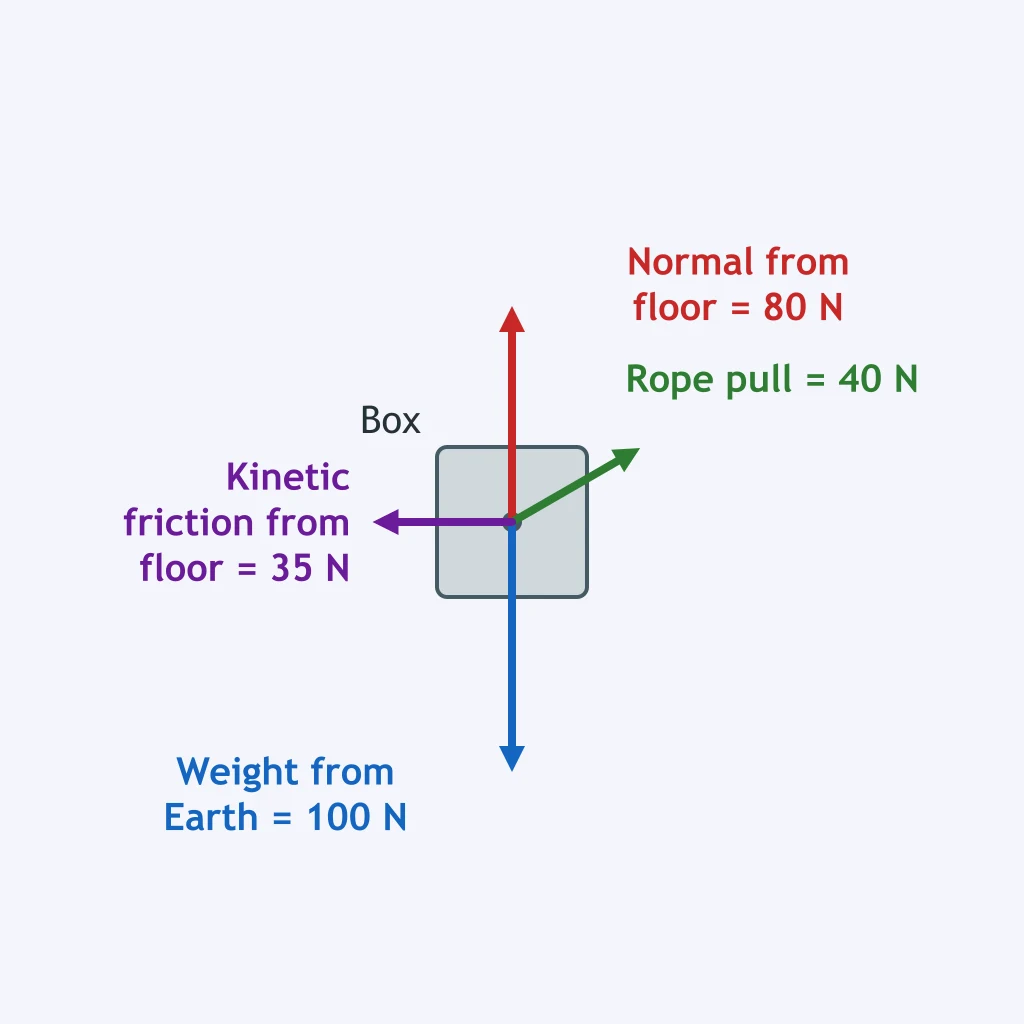

The diagram shows every force on a box pulled by a rope on a level floor. Right is positive. Which situation is represented?

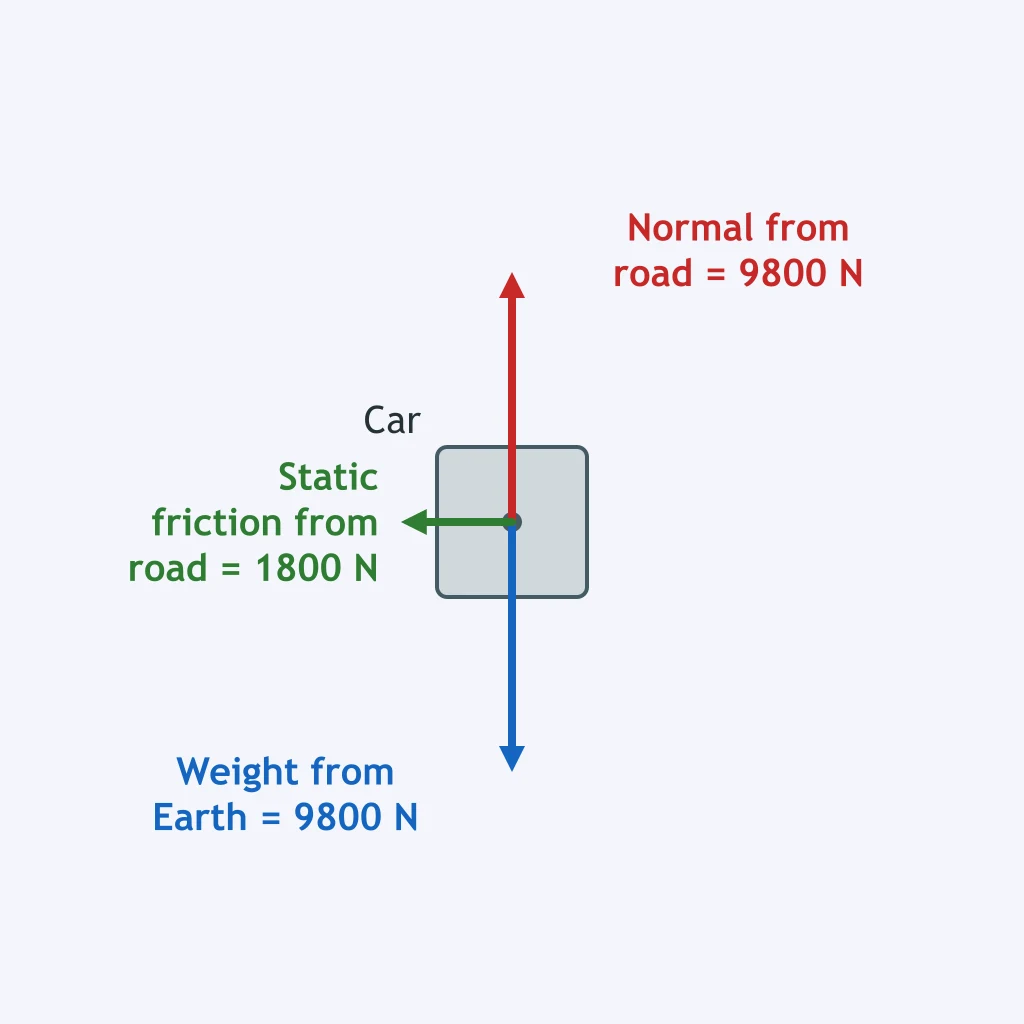

The diagram shows every force on a car at one instant. Left is toward the center of the curve. Which situation does it represent?

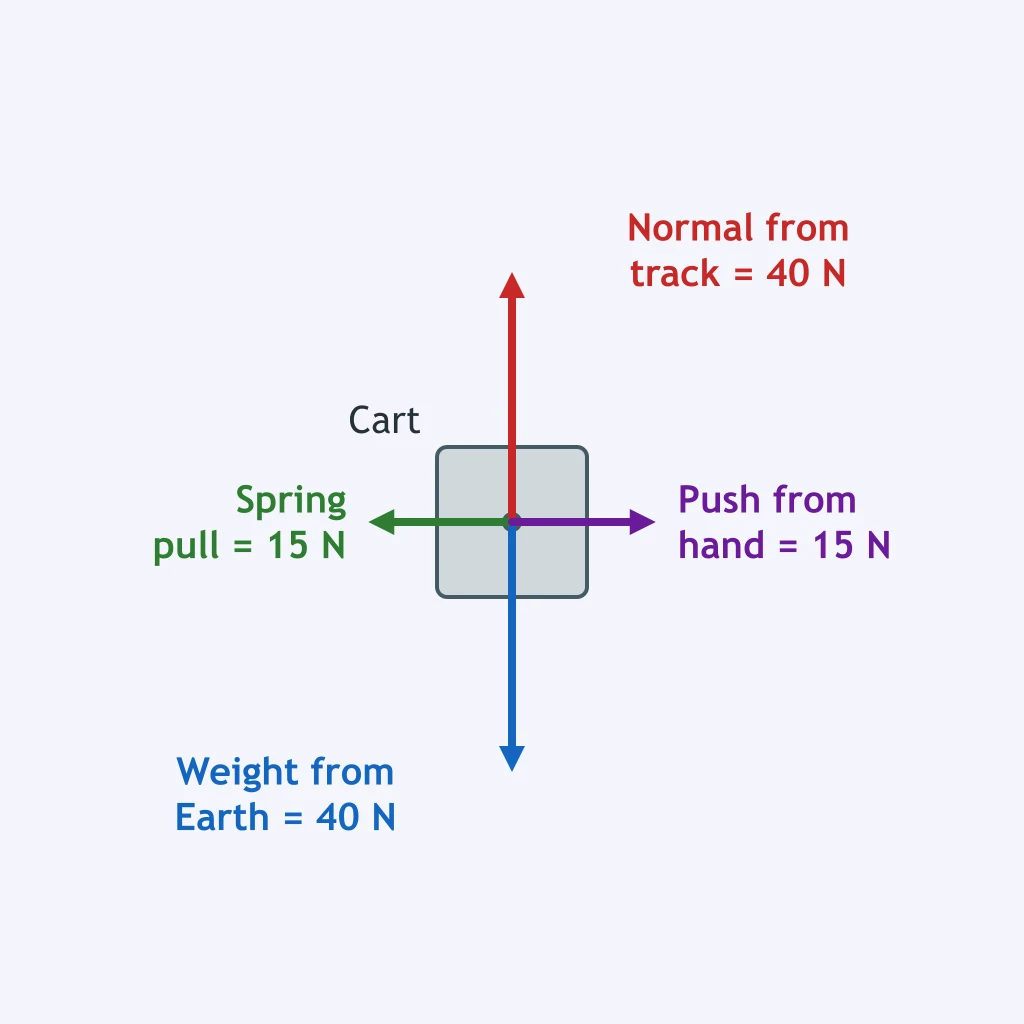

The diagram shows every force on a cart on a level track. Right is positive. Which situation matches it?

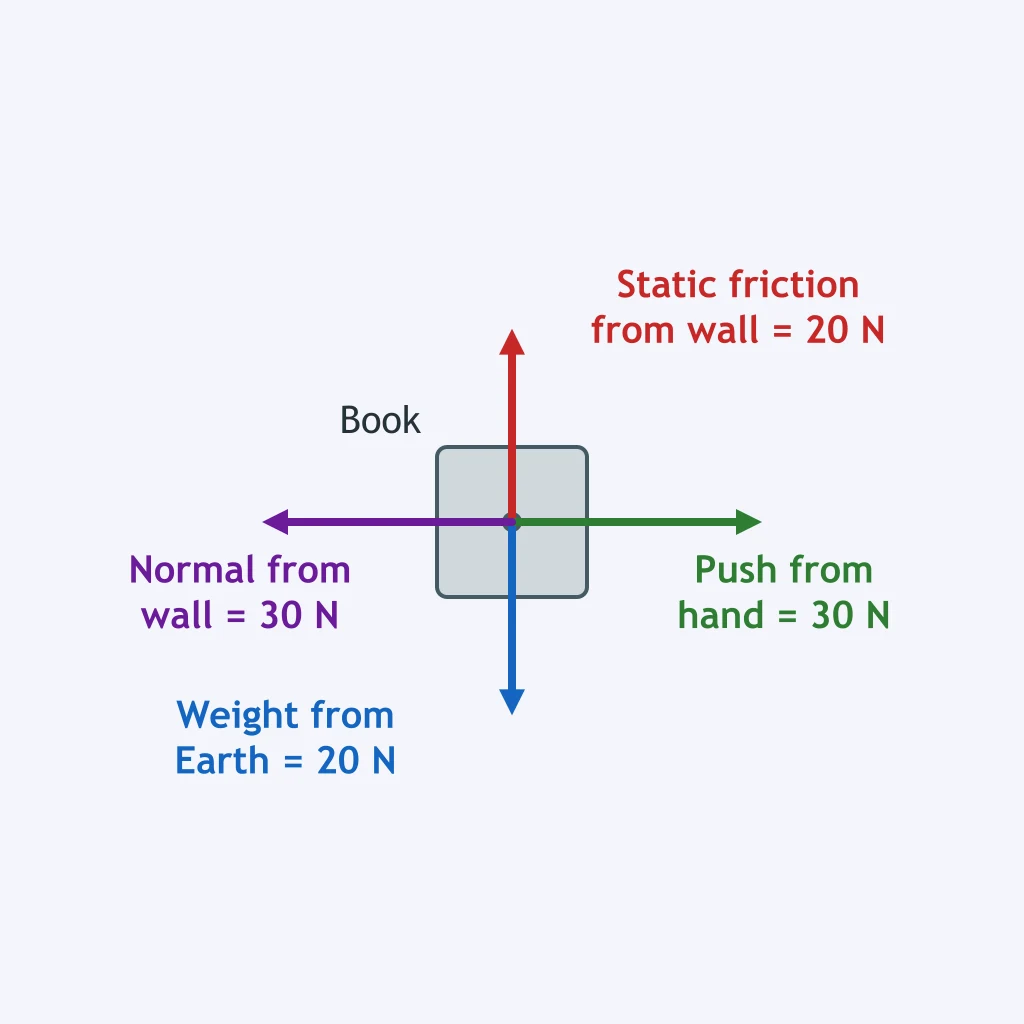

The diagram shows every force on a book pressed against a vertical wall. Right is positive. Which situation is represented?

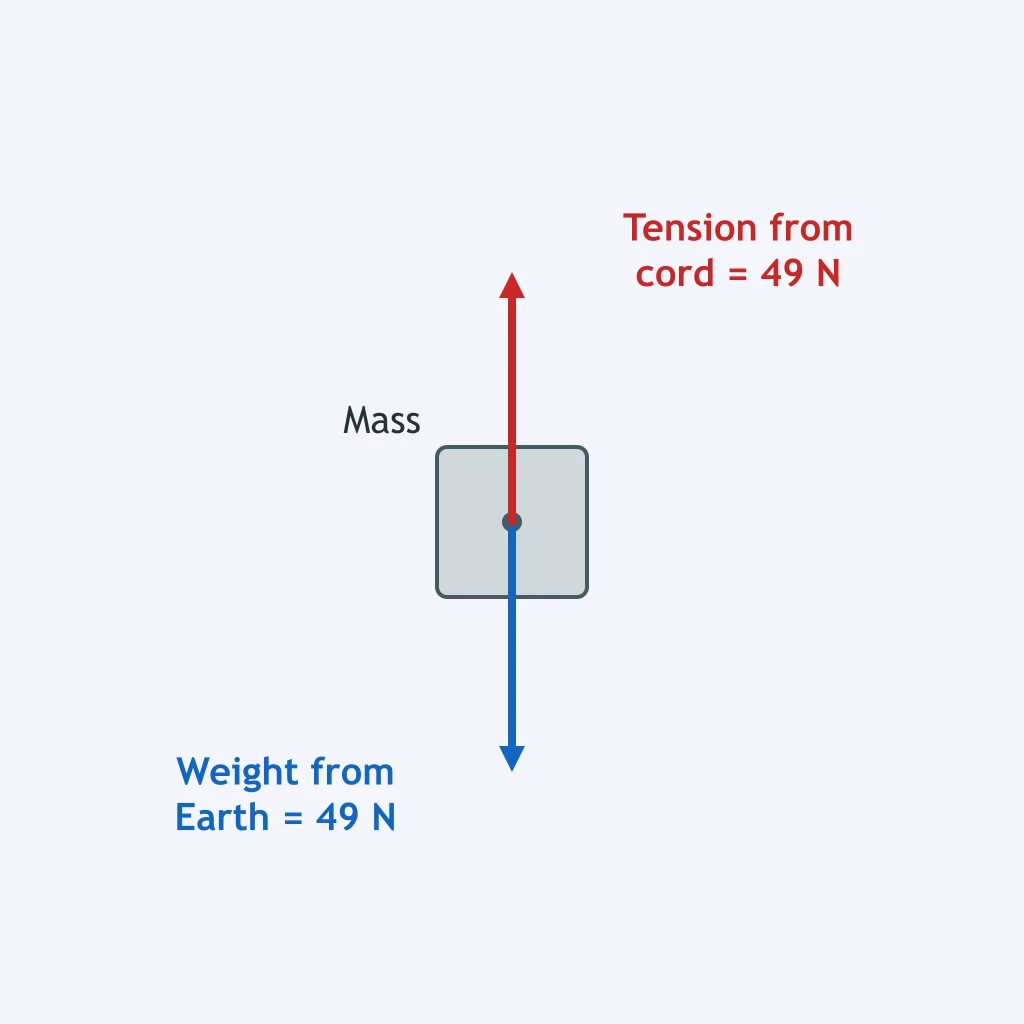

The diagram shows every force on a 5.0 kg mass hanging from a vertical cord. Take g = 9.8 m/s². Which situation matches it?

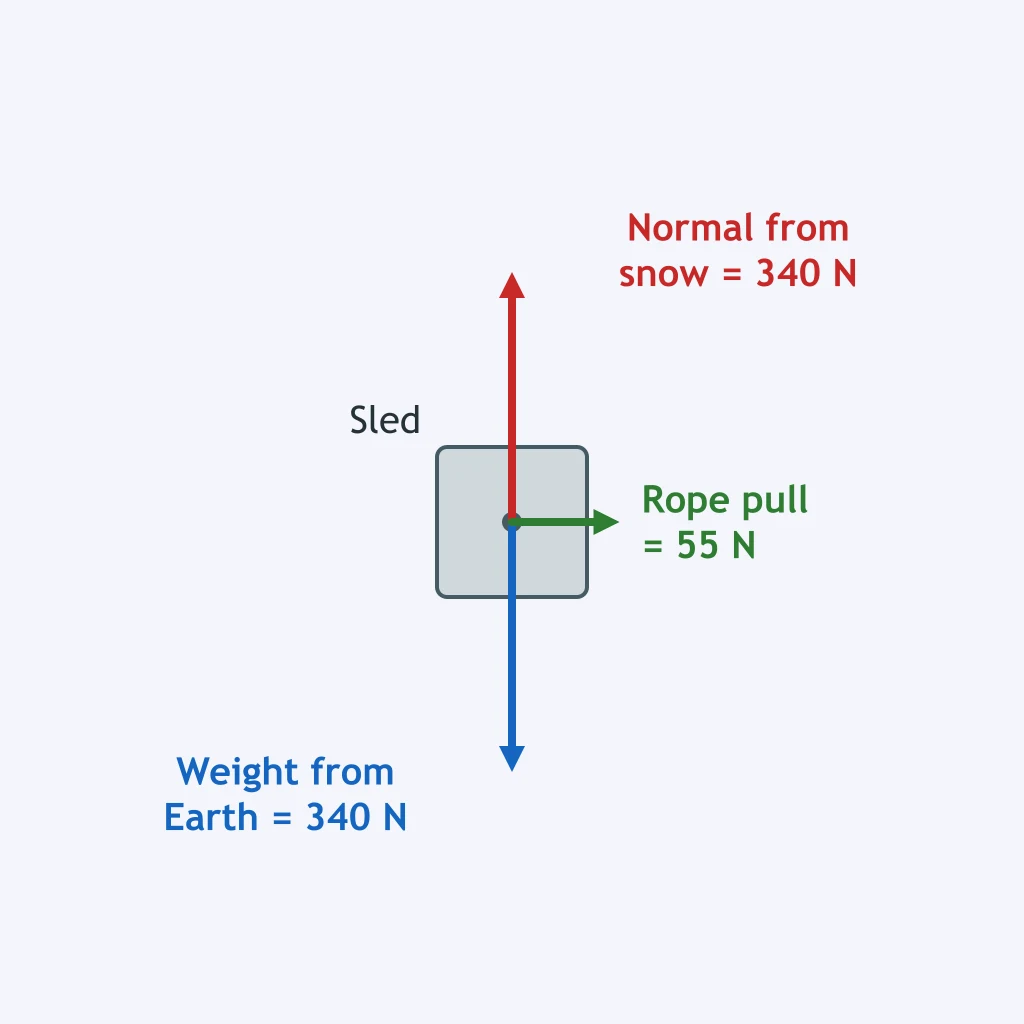

A loaded sled is pulled across level snow at a steady speed by a horizontal rope. The diagram shows only three forces on the sled. Which force is missing?

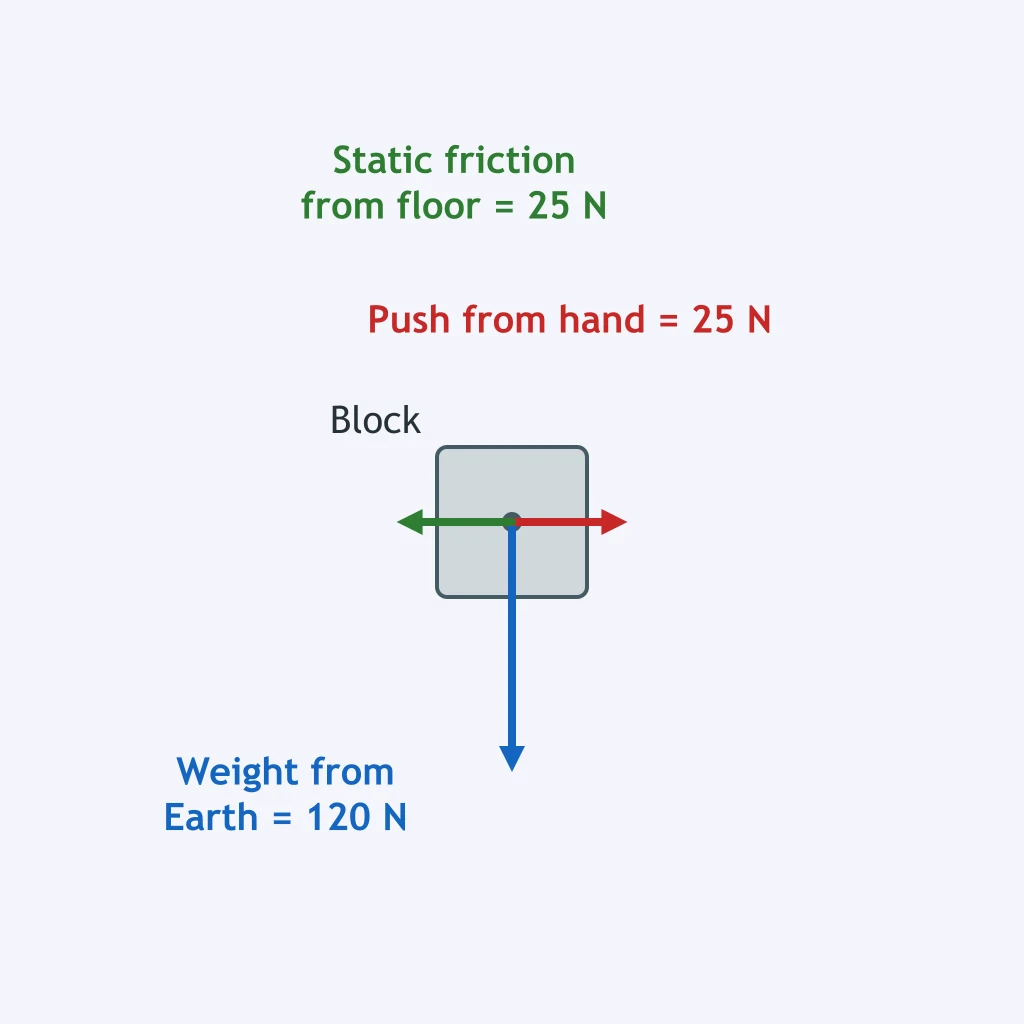

A block is at rest on a level floor while a hand pushes it horizontally. The diagram leaves out one force on the block. Which force is missing?

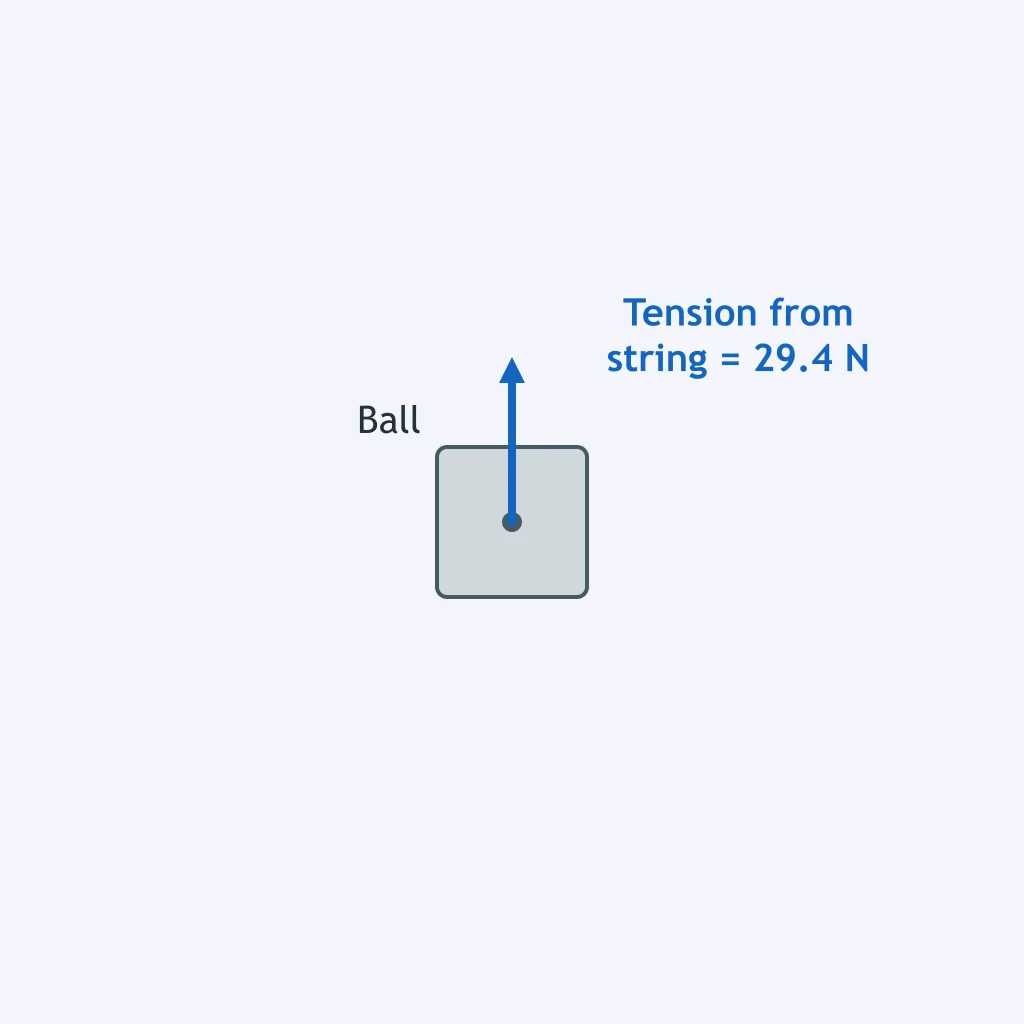

A 3.0 kg ball hangs motionless from a vertical string. Take g = 9.8 m/s². The diagram shows only one force on the ball. Which force is missing?

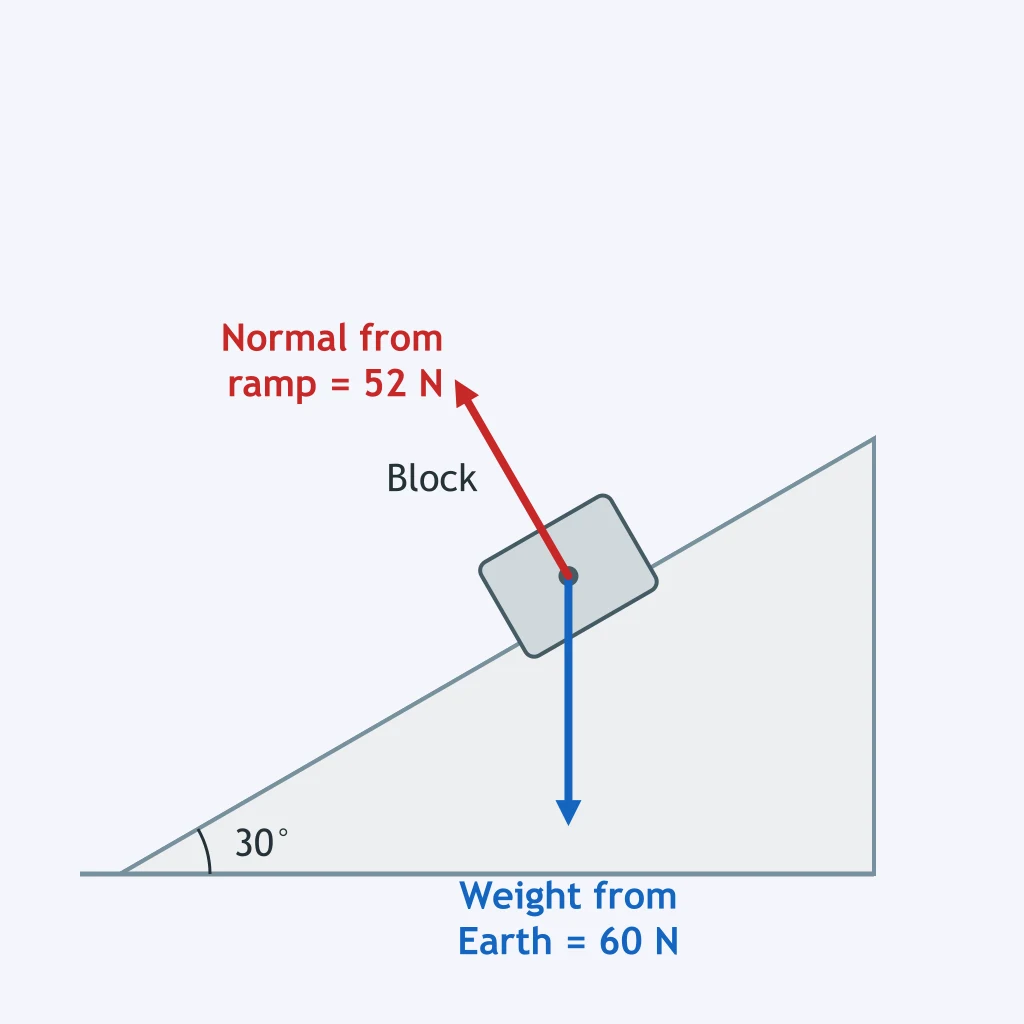

A block slides down a rough 30° ramp. Up the ramp is positive. The diagram shows only two forces on the block. Which force is missing?

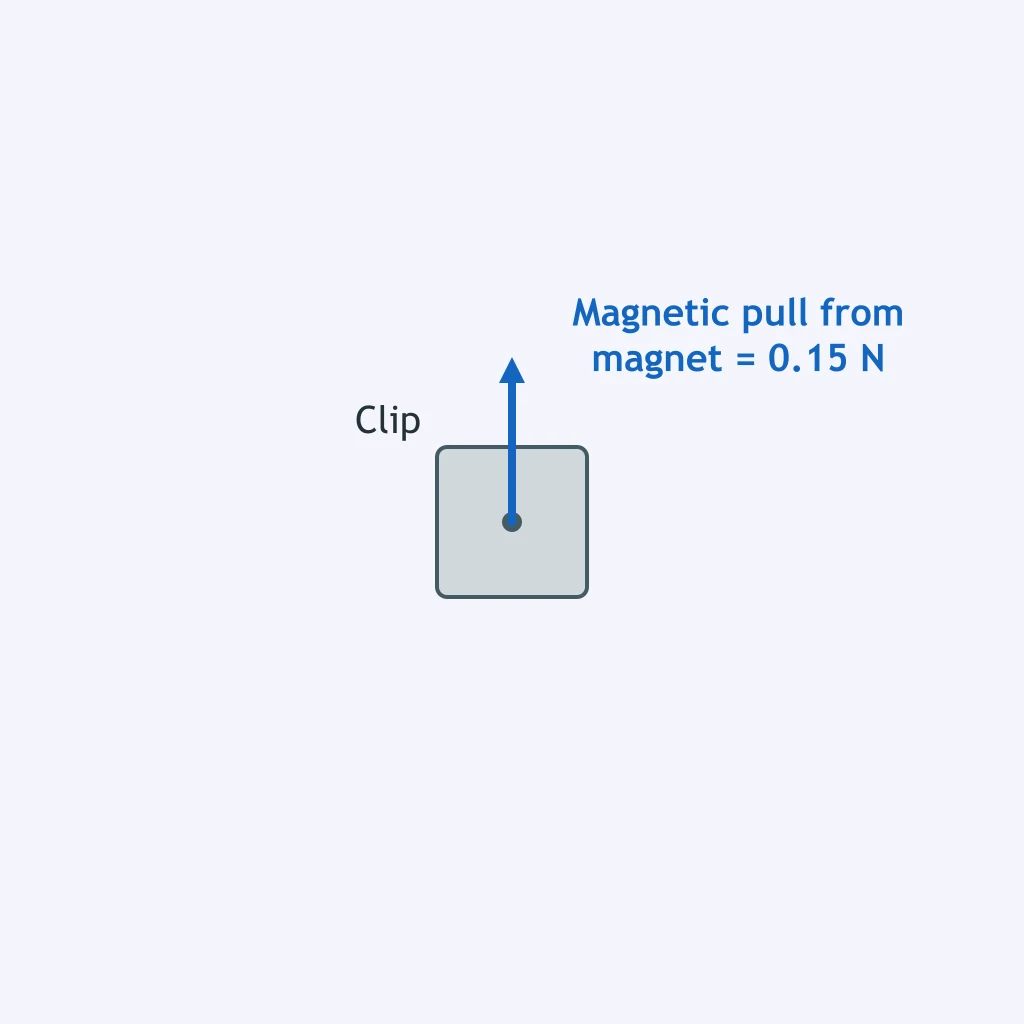

A steel paper clip hangs motionless from the underside of a magnet. The diagram leaves out one force on the clip. Which force is missing?

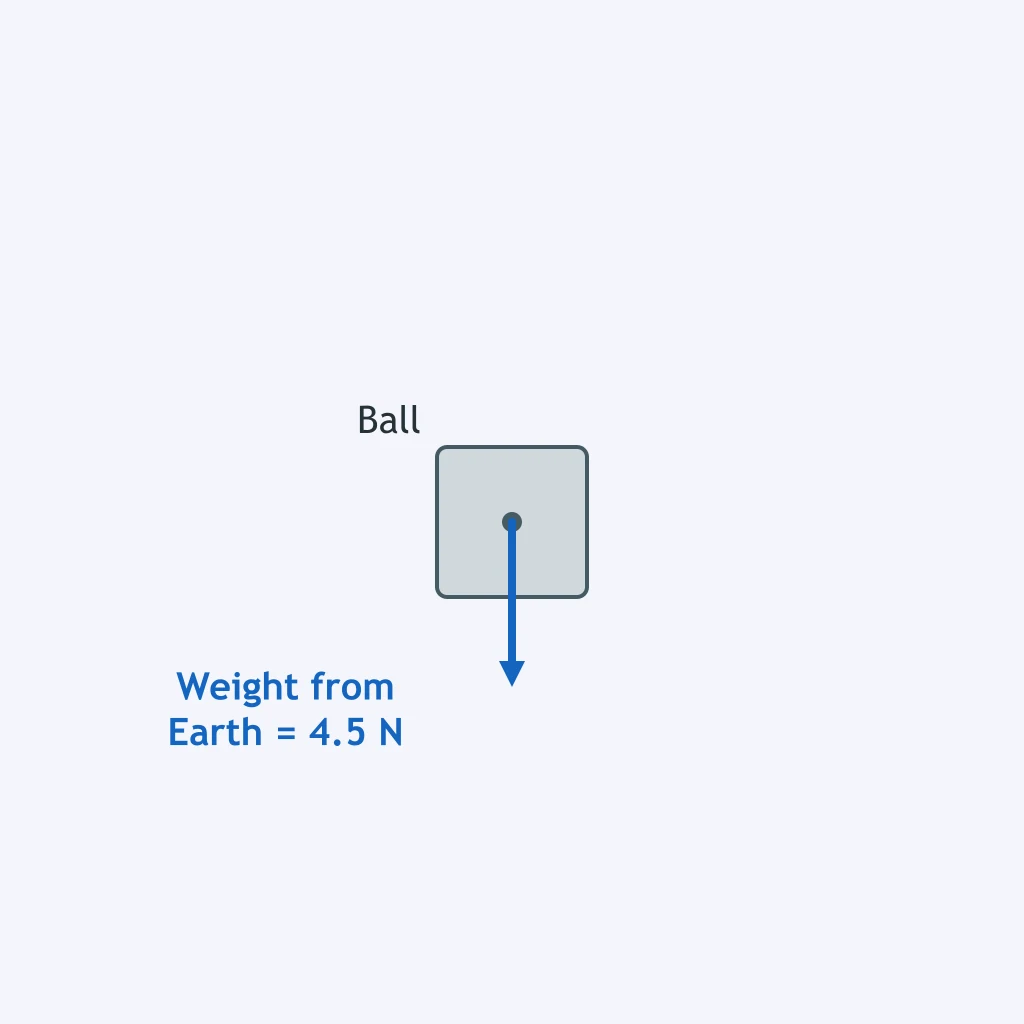

A soccer ball is falling downward after being kicked, and the air affects its motion. The diagram shows only one force. Which force on the ball is missing?

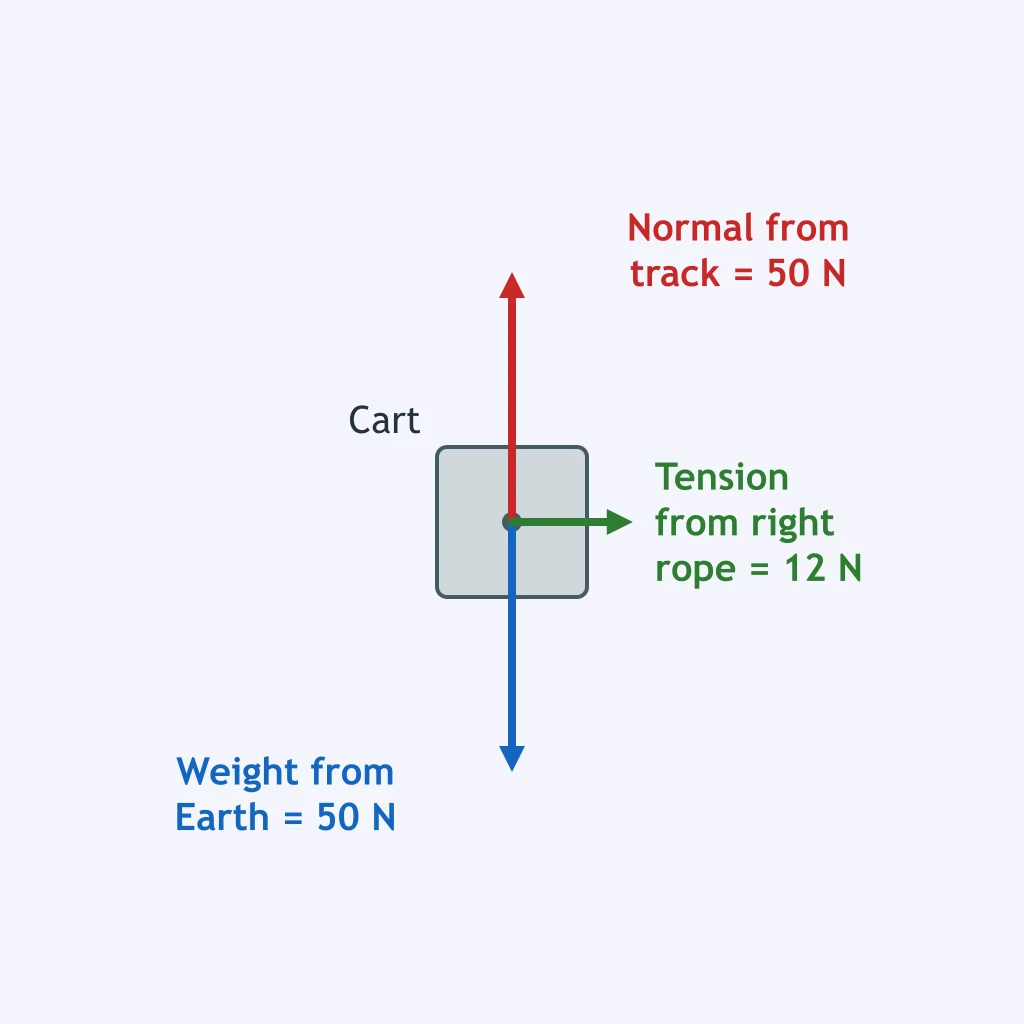

A cart on a nearly frictionless track is pulled by two horizontal ropes and is moving at steady speed. The diagram leaves out one force. Which is missing?

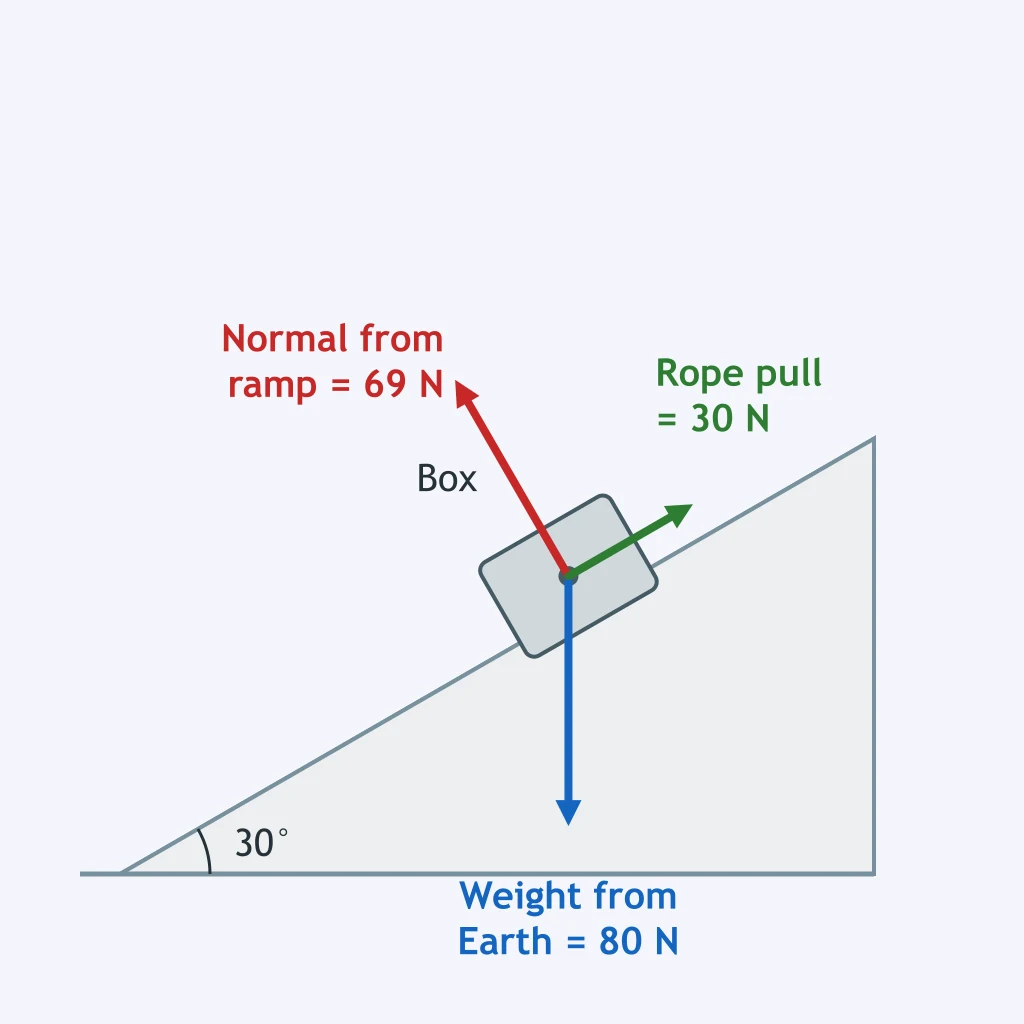

A box rests on a rough ramp while a rope pulls it up the ramp. Up the ramp is positive. The diagram has three forces. Which force is missing?

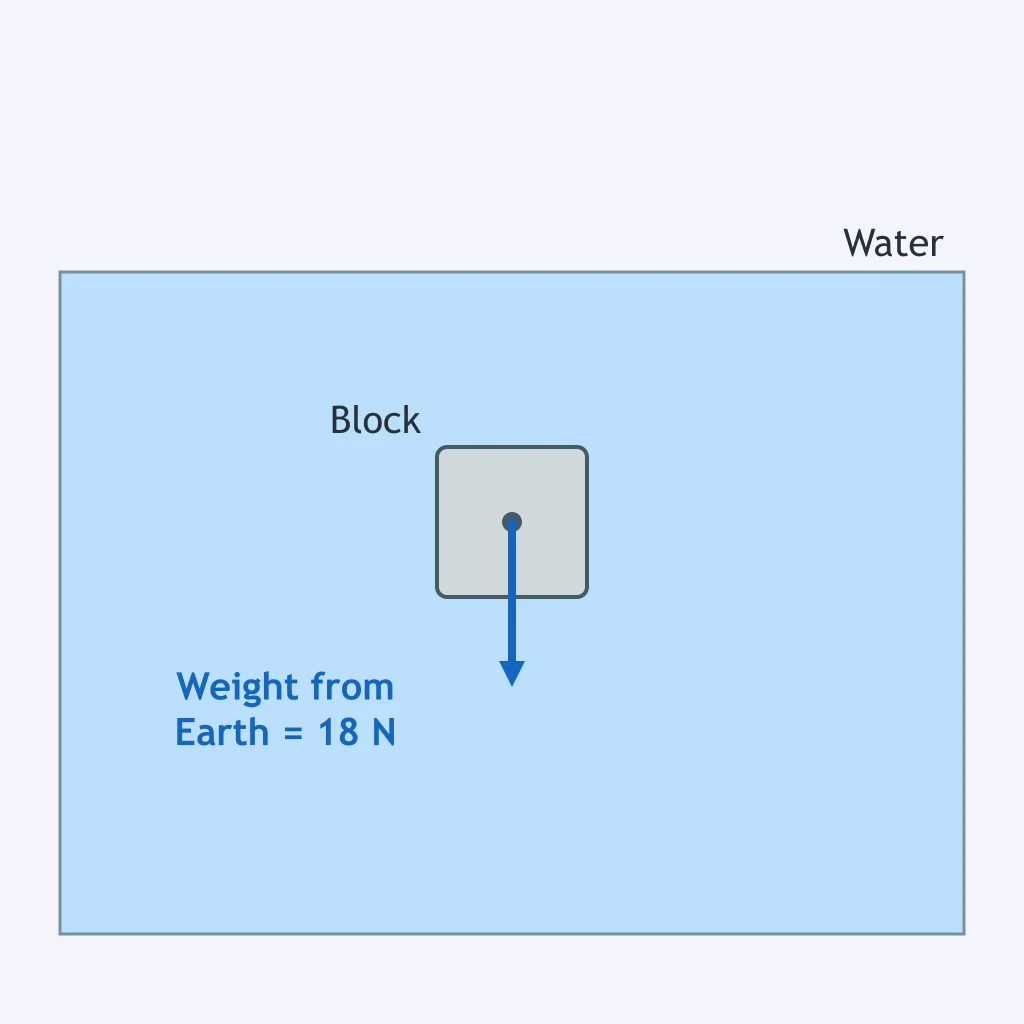

A block floats motionless in water. The diagram shows only one force on the block. Which force is missing?

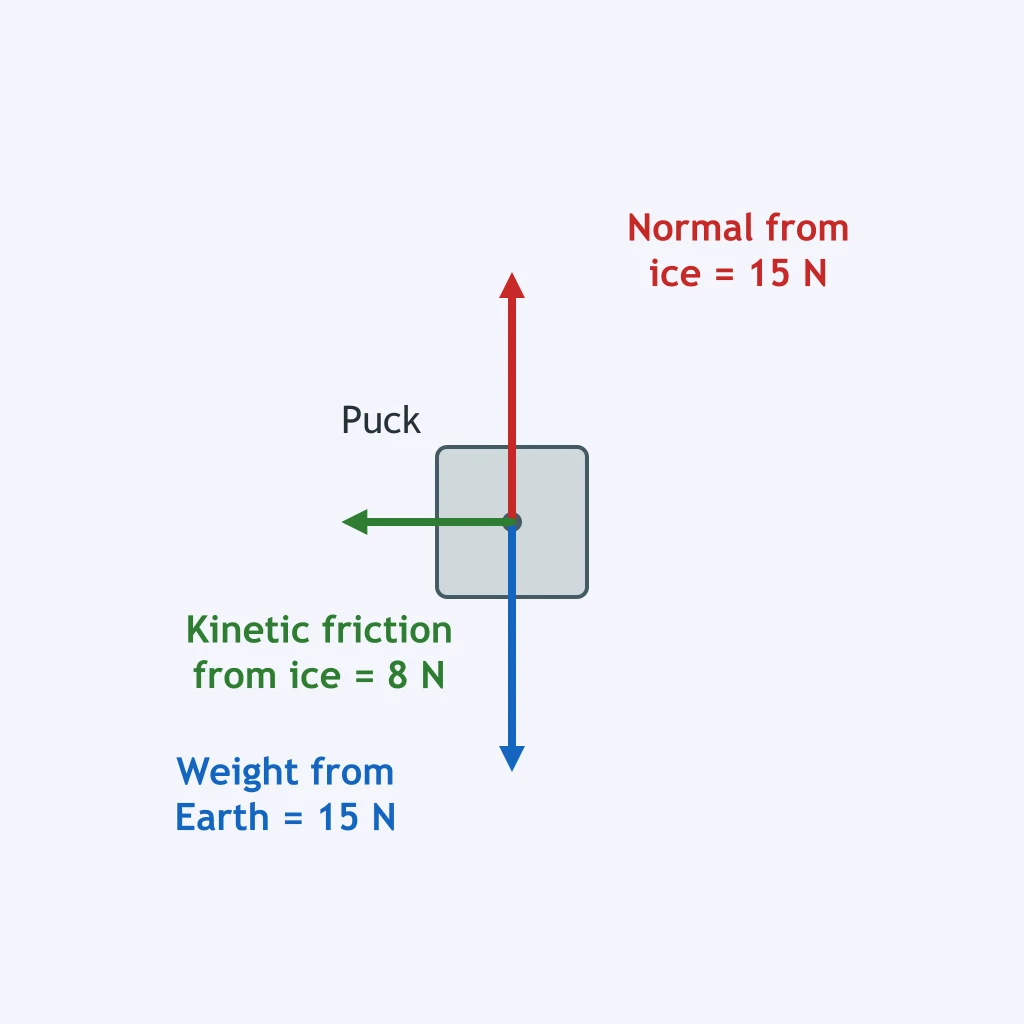

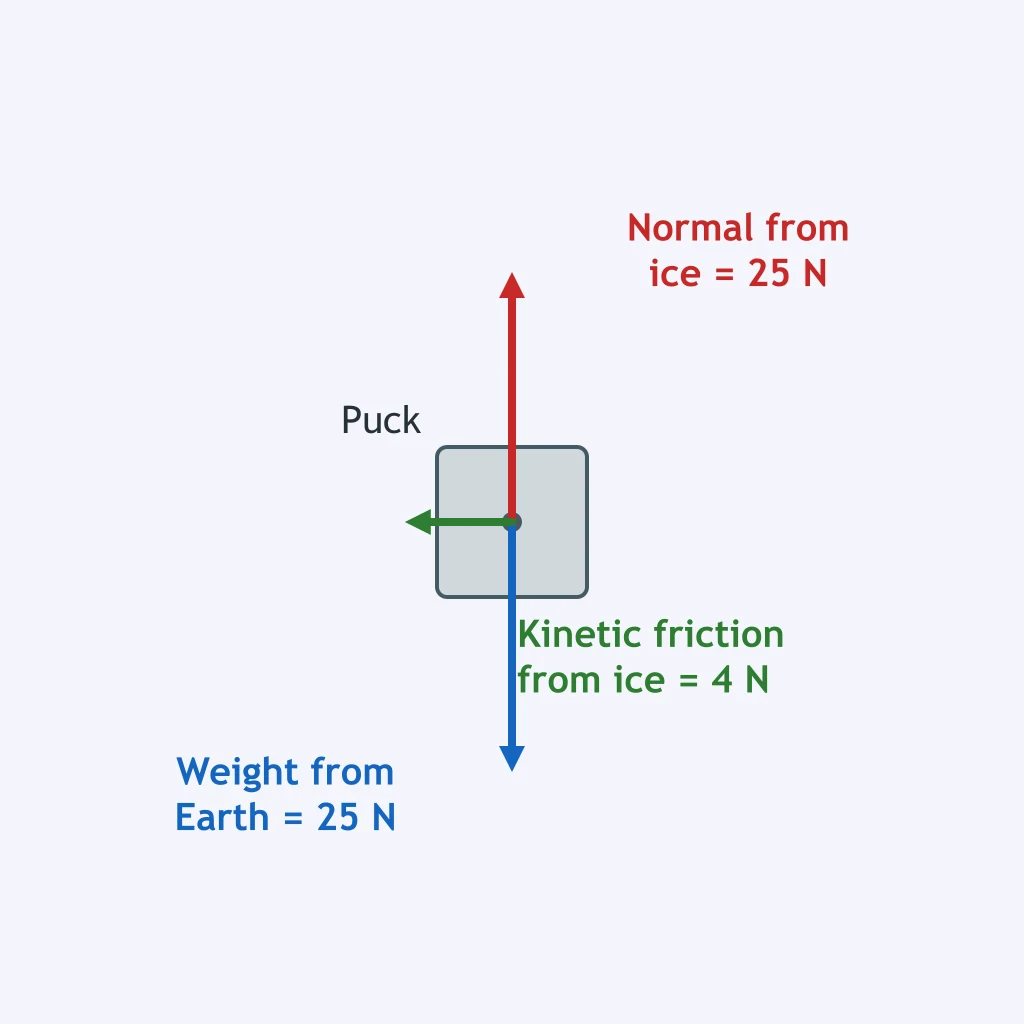

A gloved hand pushes a puck right across rough ice at steady speed. The diagram leaves out one force on the puck. Which is missing?

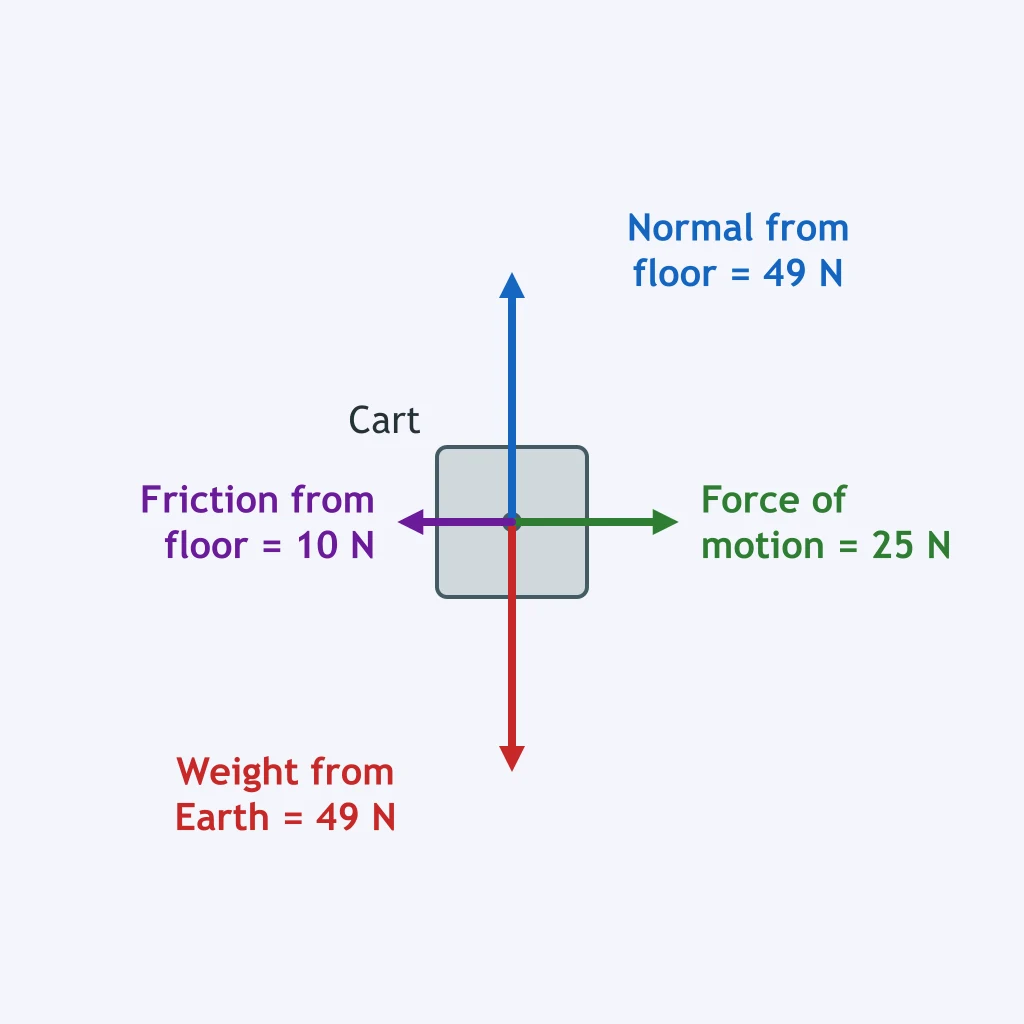

A cart rolls right across a level floor after a short push; the hand is no longer touching it. Which arrow in the student's diagram is not a real force on the cart?

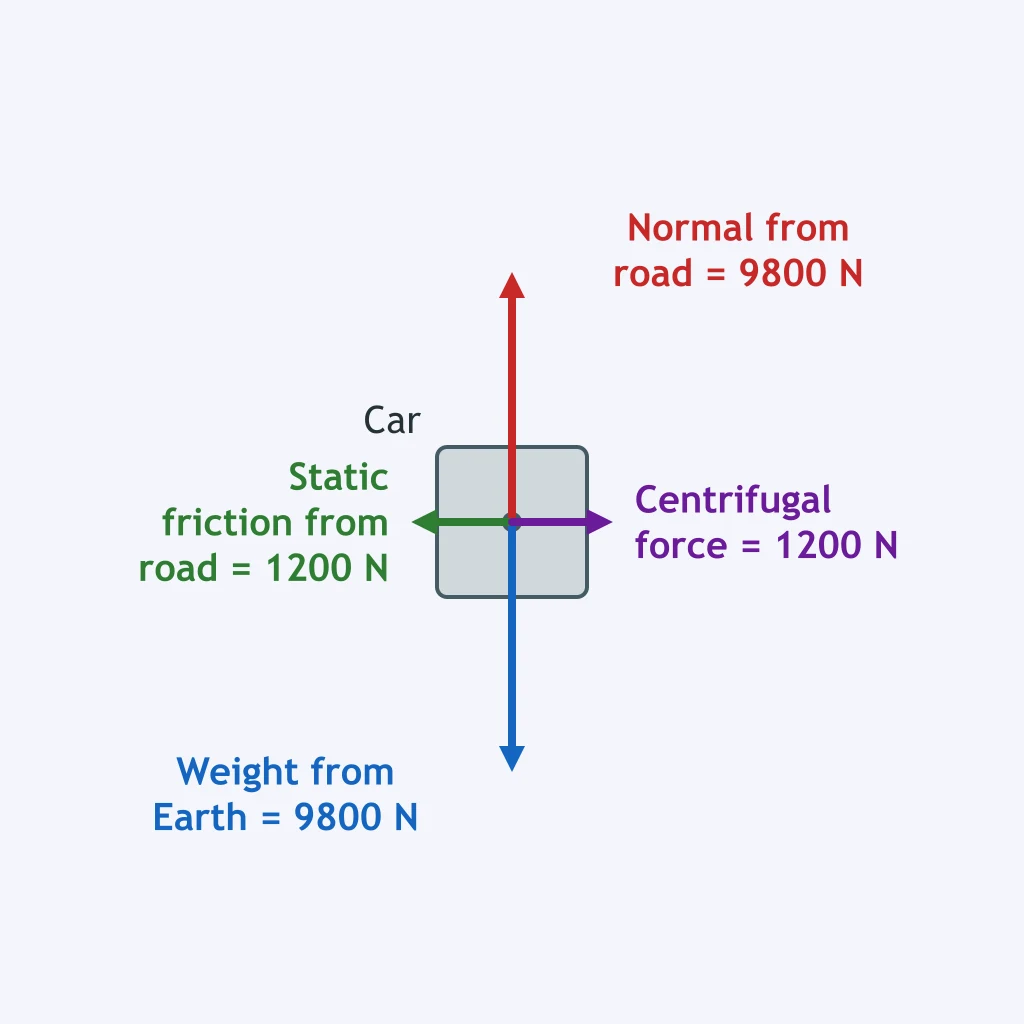

A car rounds a level curve, and the center of the curve is to the left. Which arrow in the student's diagram is not a real force on the car?

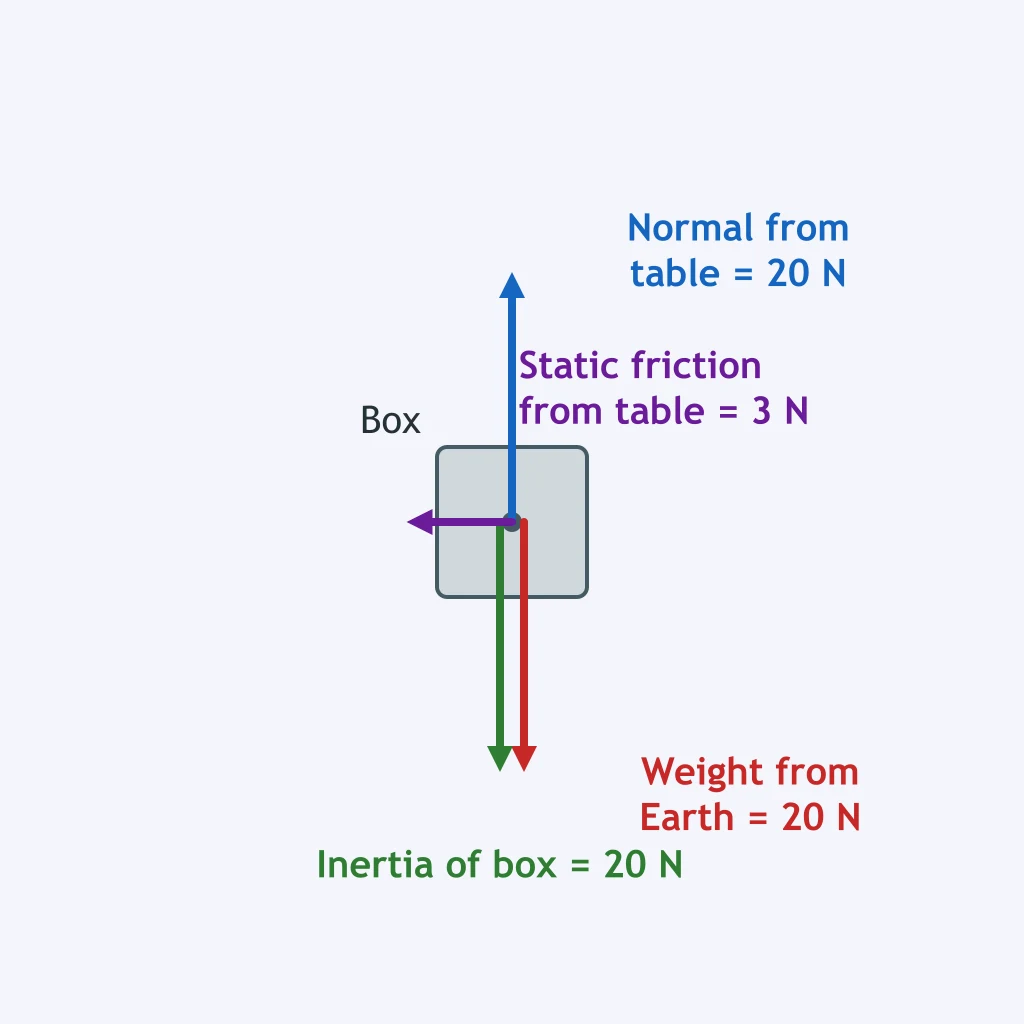

A box sits at rest on a level table. Which arrow in the student's diagram does not stand for a force exerted by another object on the box?

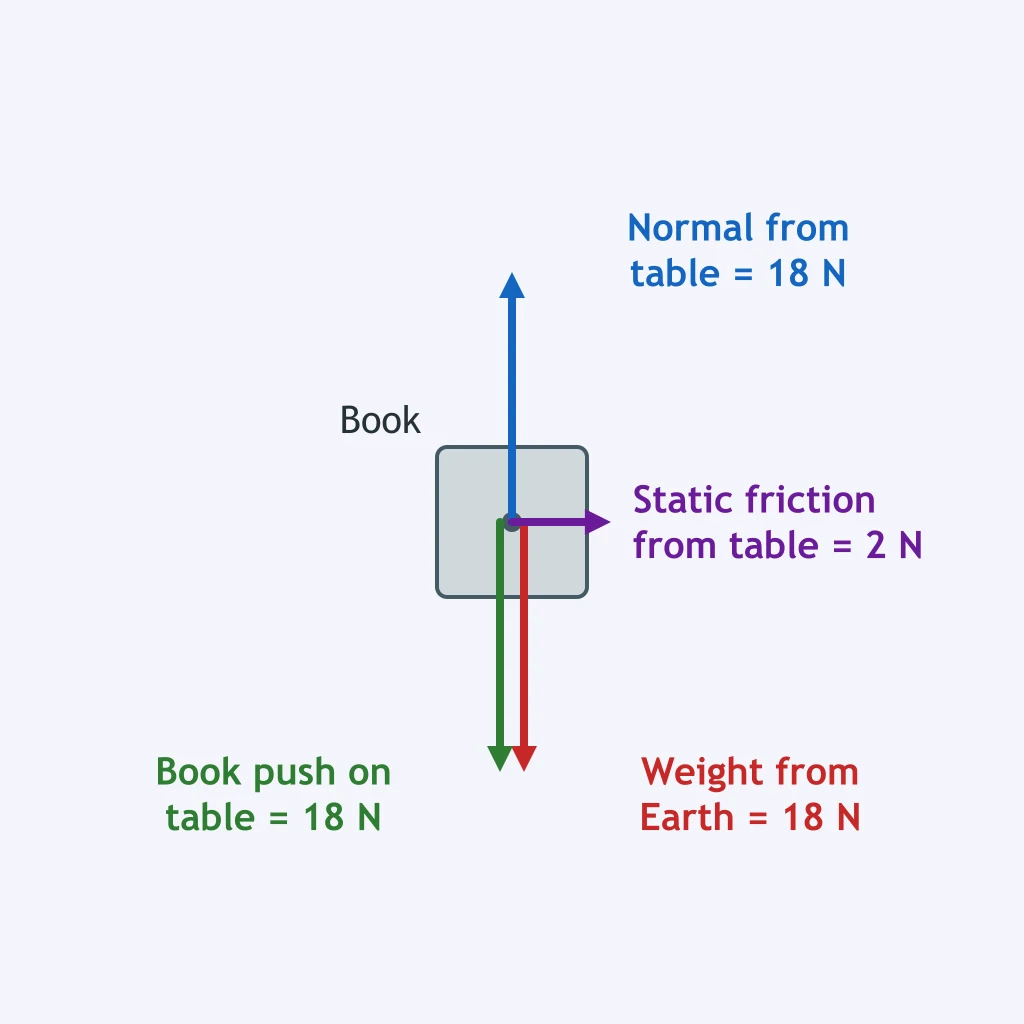

A book rests on a table. Which arrow in the student's diagram is placed on the wrong body?

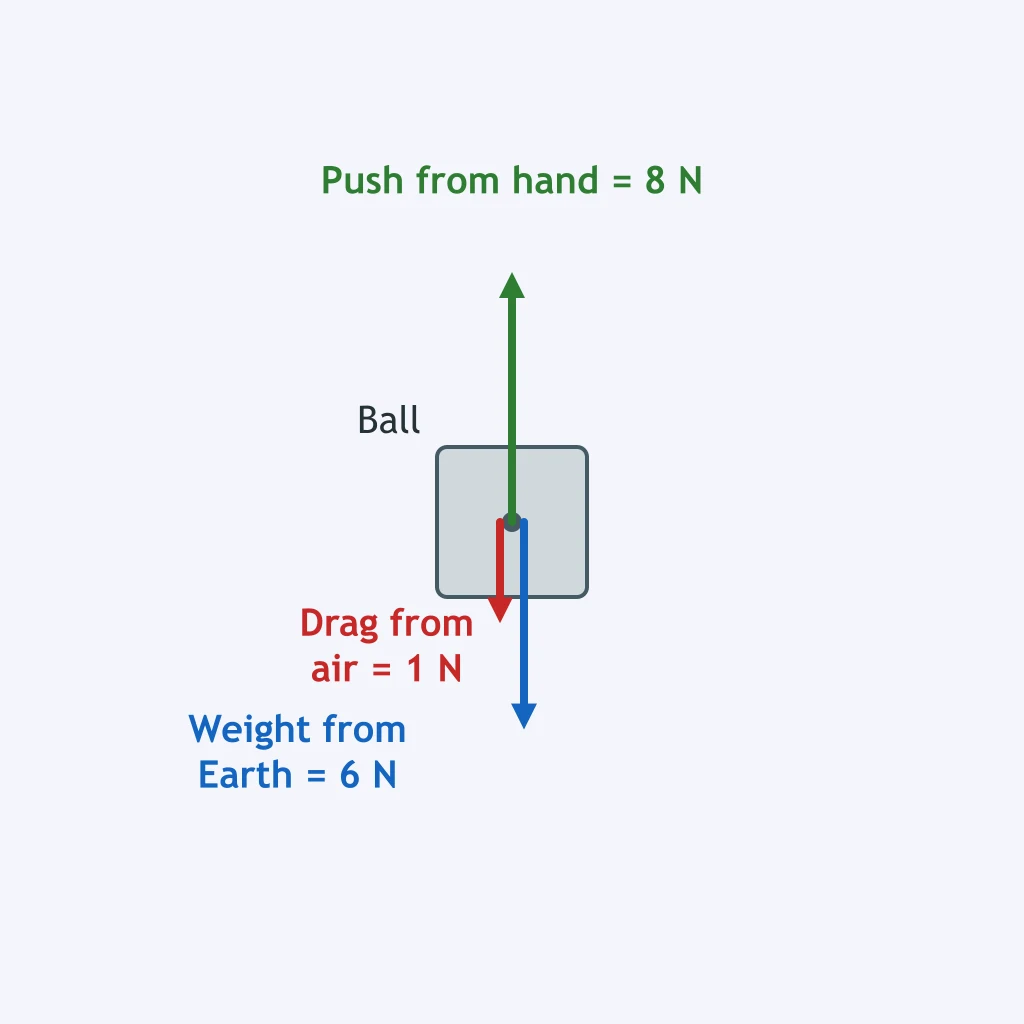

A ball is moving upward after leaving a student's hand. Air resistance is small but not zero. Which arrow in the student's diagram is not a force on the ball now?

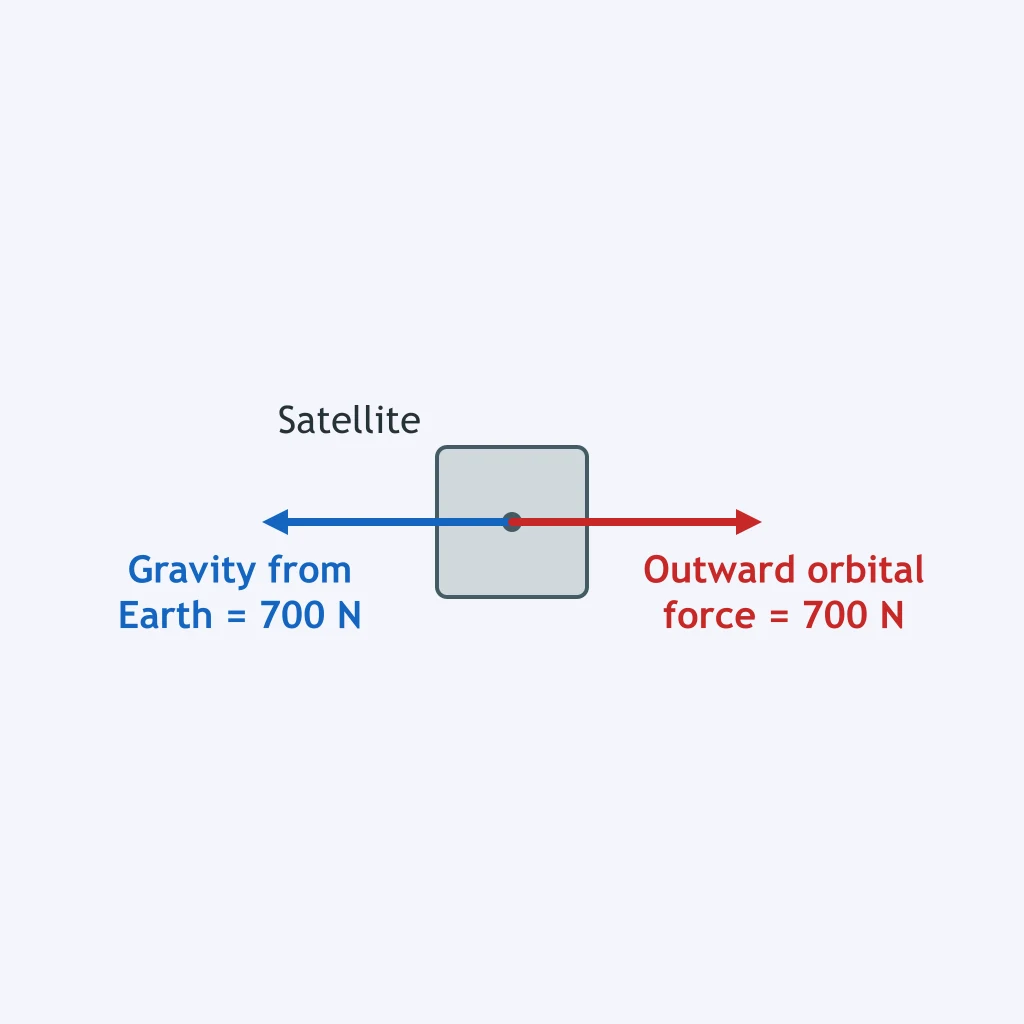

A satellite moves around Earth. The diagram is meant to show forces on the satellite at one point in its path. Which arrow is not a real interaction?

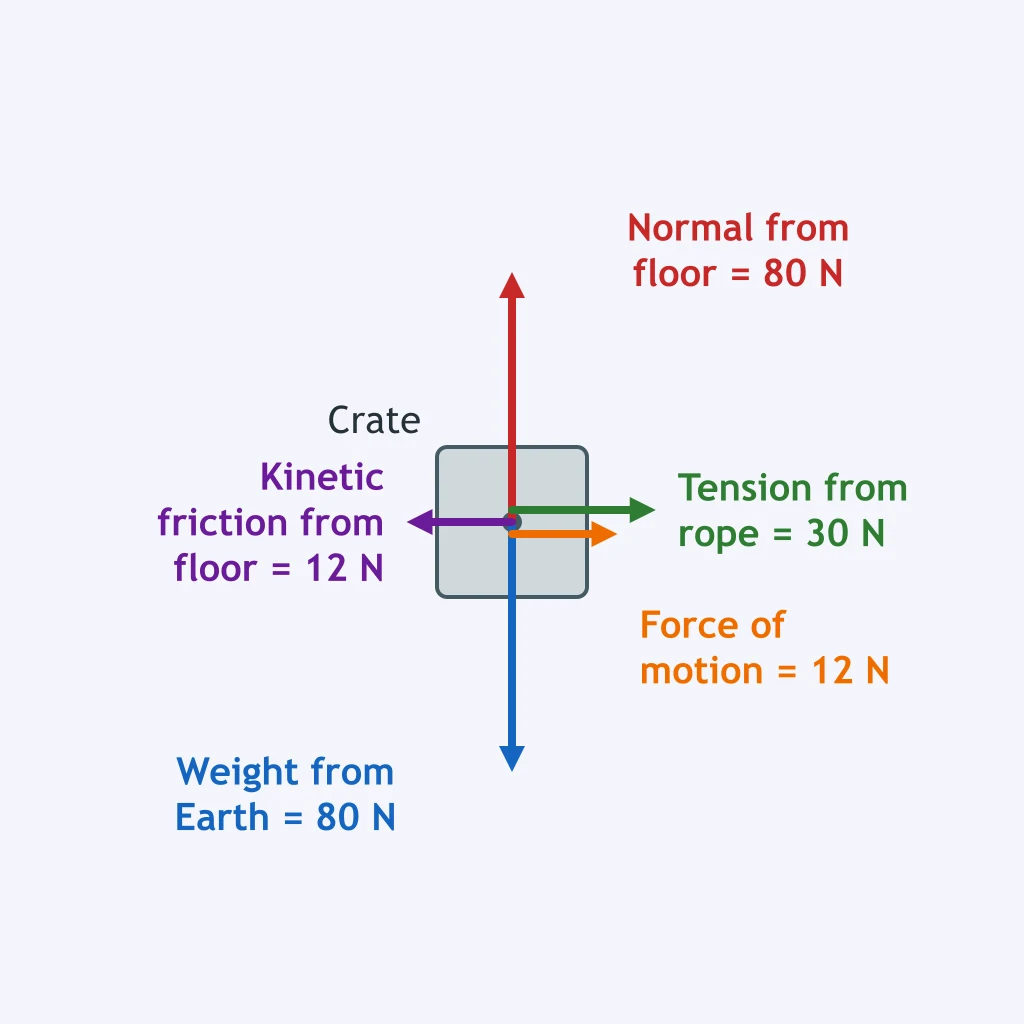

A crate is dragged right across a rough floor by a rope. Which arrow in the student's diagram should not be included?

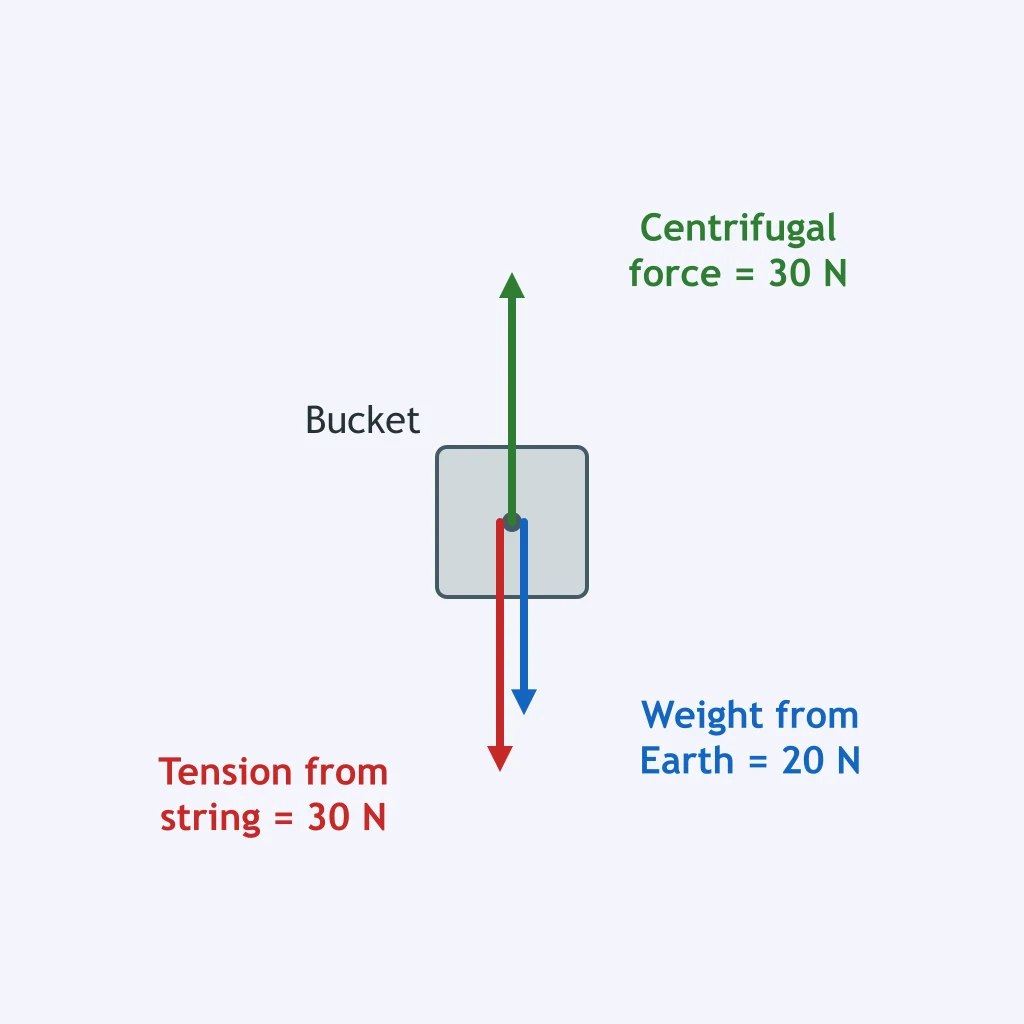

A bucket is at the top of a vertical circle while attached to a string. Which arrow in the student's diagram is not a real force on the bucket?
A hardback book lies still on a wooden shelf. Which force acting on the book is a non-contact force?
A rope pulls a sled forward across level snow. What type of force does the rope exert on the sled?
A crate slides across a concrete floor while the two surfaces rub past each other. Which force from the floor acts opposite the sliding?
A heavy box does not move even though a student pushes sideways on it. Which force from the floor can prevent the slipping before it starts?
A lab table pushes upward on a resting textbook. What is the name of this perpendicular contact force?
A stretched spring pulls a cart back toward the spring's relaxed length. What type of force does the spring exert?
A cyclist coasts forward, and the air exerts a backward force on the cyclist. What force is this?
A child pushes a wagon handle forward. What type of force does the child exert on the wagon?
A magnet pulls a steel paper clip upward without touching it. Which force acts on the clip?
A backpack has a mass of 6.0 kg, and Earth pulls on it with a force measured in newtons. What is that force called?
