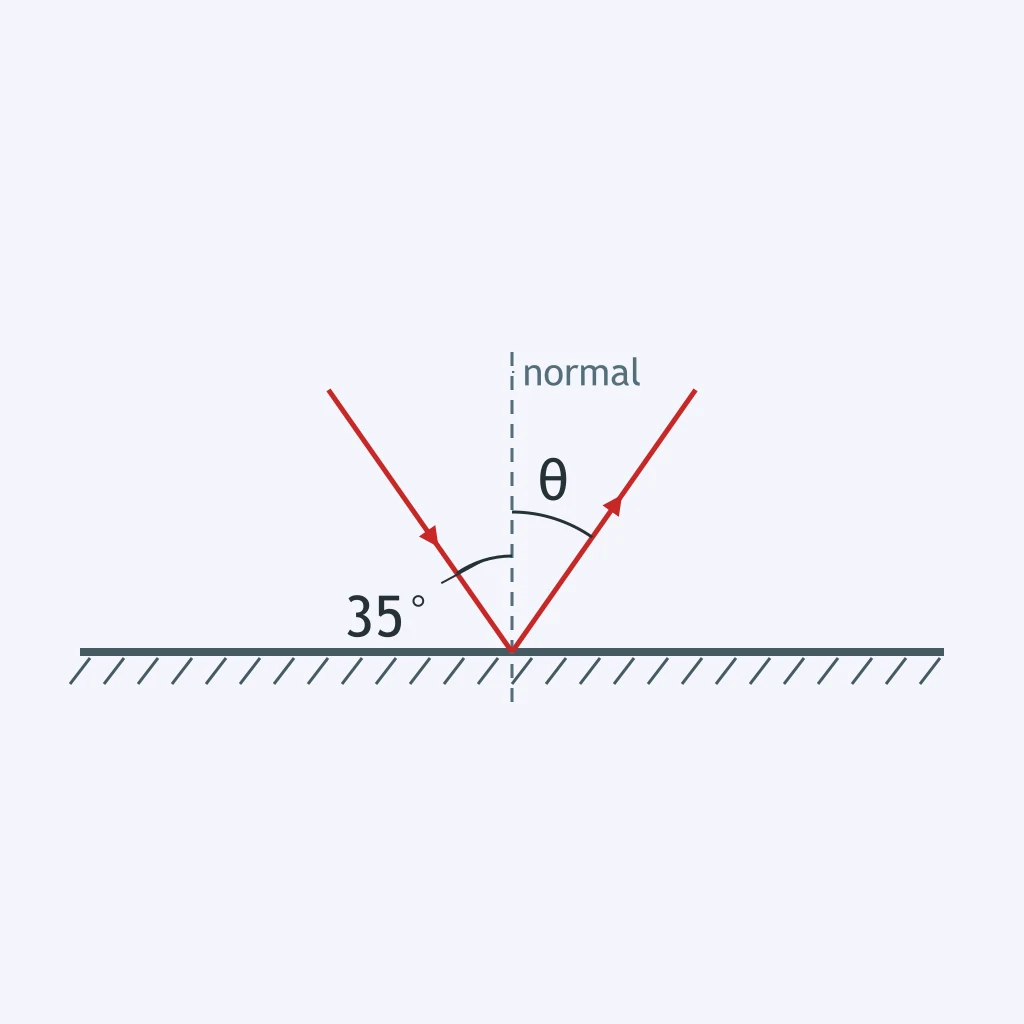

What is the angle of reflection in the diagram?

Which line should Liza use as the reference when measuring a ray's angle of incidence?

A ray reaches a mirror with an incidence angle of 0 degrees. What happens next?

What process occurs when light hits a mirror and returns to the medium it came from?

Why does polished metal produce a clearer image than rough metal?

Which description fits an image seen in a flat bathroom mirror?

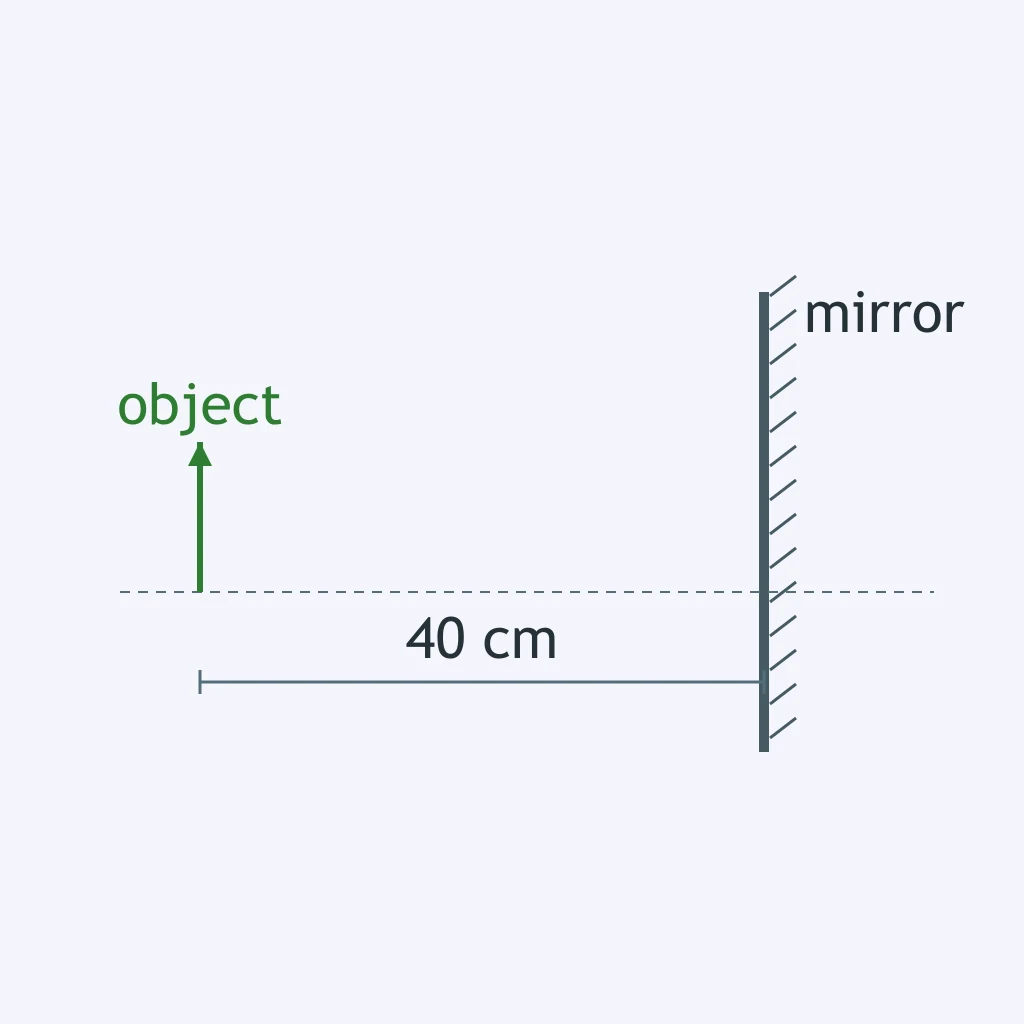

Use the diagram. How far behind the mirror does the image appear?

Ana is 160 cm tall. What is the minimum height of a correctly positioned plane mirror that lets her see her entire body?

In a plane-mirror ray diagram, why are the reflected rays extended backward as dashed lines behind the mirror?

An image produced by a mirror can be focused onto a paper screen. Which description applies?

A spherical mirror has a radius of curvature of 60 cm. What is its focal length in the usual ray model?

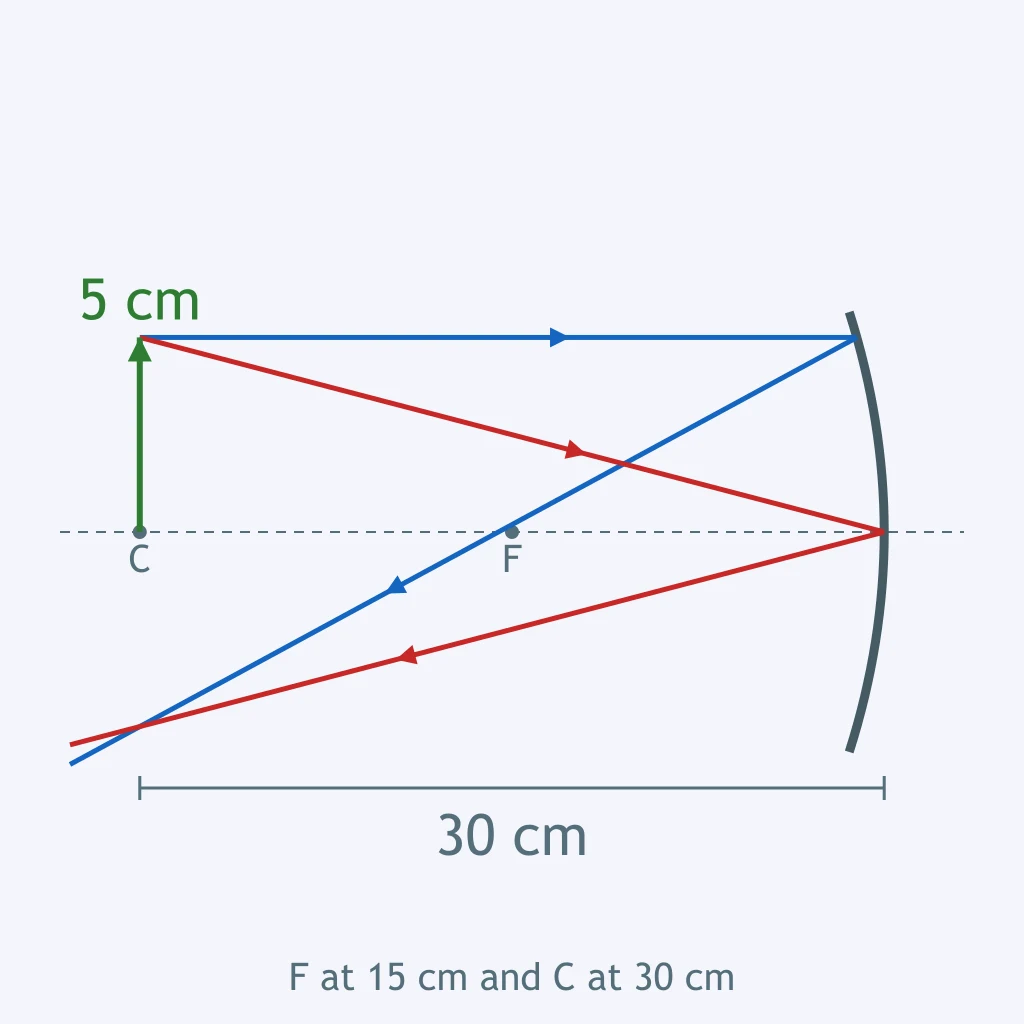

Predict the image's height for the object position shown.

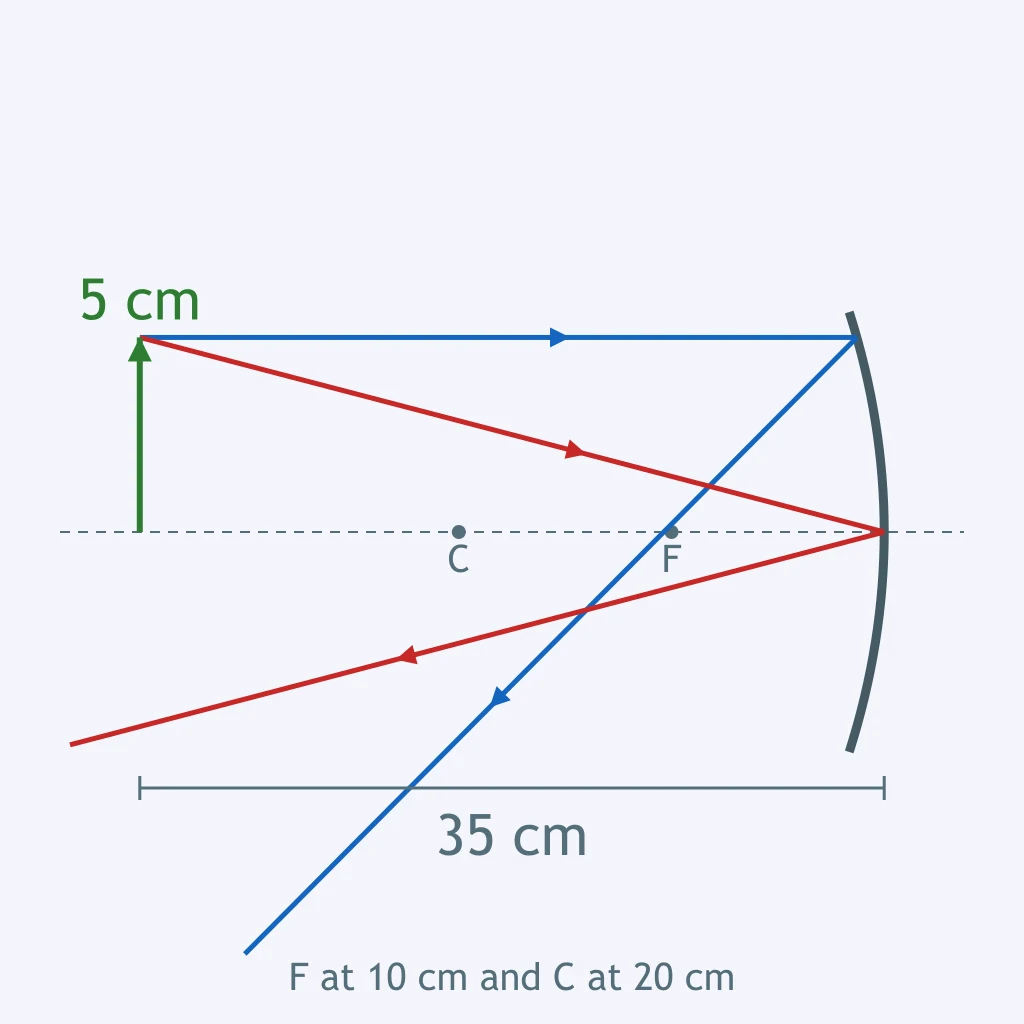

Where will the image form for the arrangement shown?

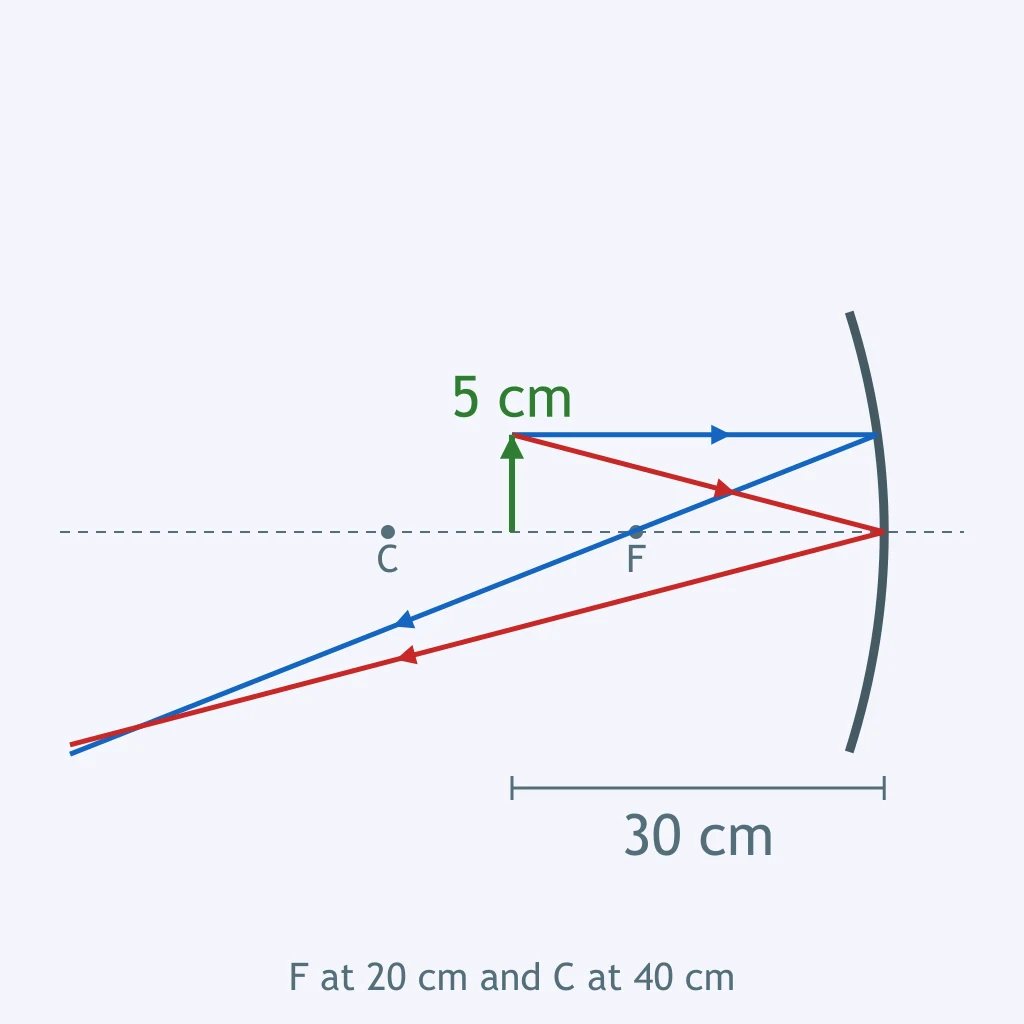

Which description fits the image produced by the arrangement shown?

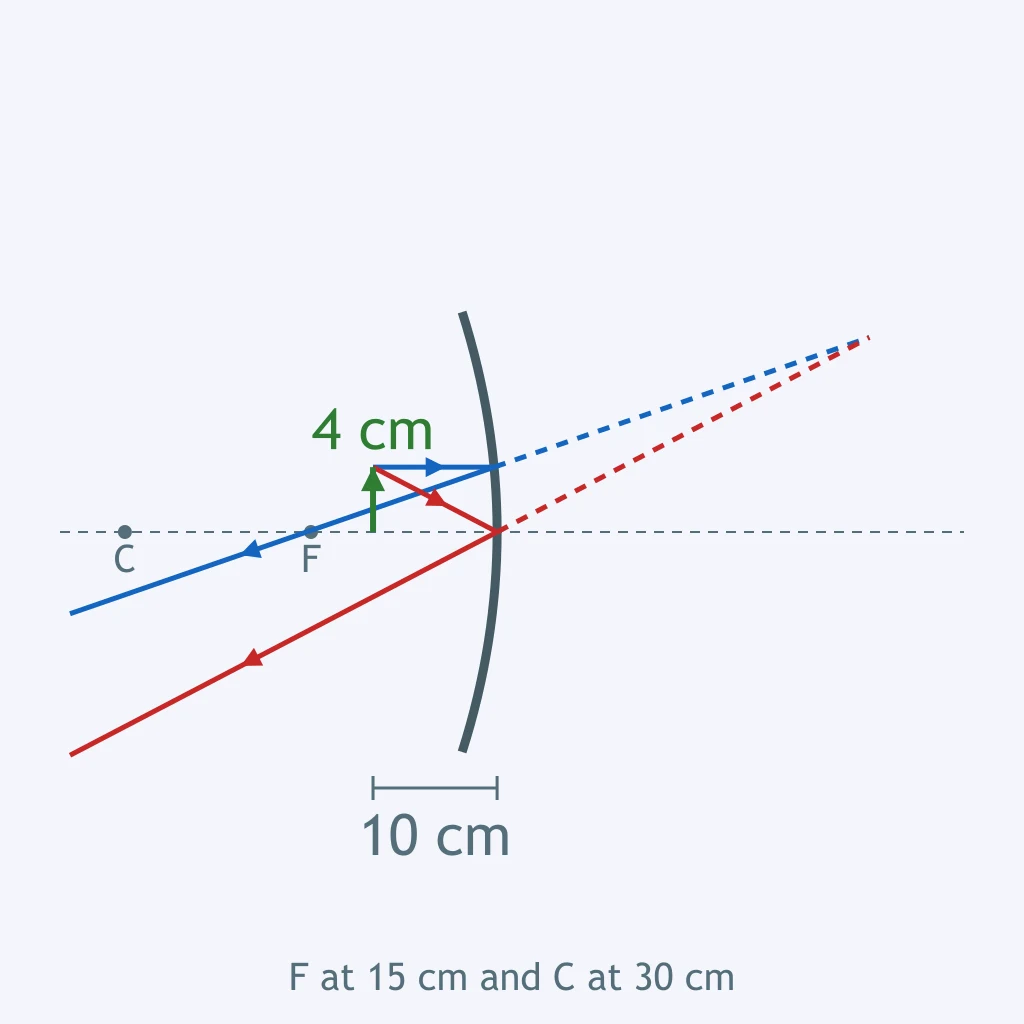

Predict the image's orientation and location in this setup.

A ray traveling parallel to the principal axis strikes a concave mirror. Where does it go afterward?

In a ray diagram, an object is placed at F of a concave mirror. What happens to rays from its tip after they leave the surface?

Which description matches the image in this ray diagram?

A convenience store uses a mirror that curves outward. What advantage does it offer staff?

Nico moves a toy from 30 cm to 10 cm in front of a convex mirror. How does its image change?
