Analyze ropes, pulleys, linked objects, tension, and shared acceleration.
#physics
20 questions
One question set, multiple game modes. Tap any game to see it in action. Not sure which to pick?
Answer to place stones and capture territory.
Outrun the snow together.
Earn blasts, then hunt the other team.
Answer to earn energy, then climb.
The class blasts through walls together.
Bid on mystery lots. Most money wins.
Sell tours. Nice, standard, or a total scam.
Answer, restock, and serve the rush.
More correct answers pulls the rope your way.
Answer, then shoot down the alien wave.
Answer, then tap to leap the frozen ridge.

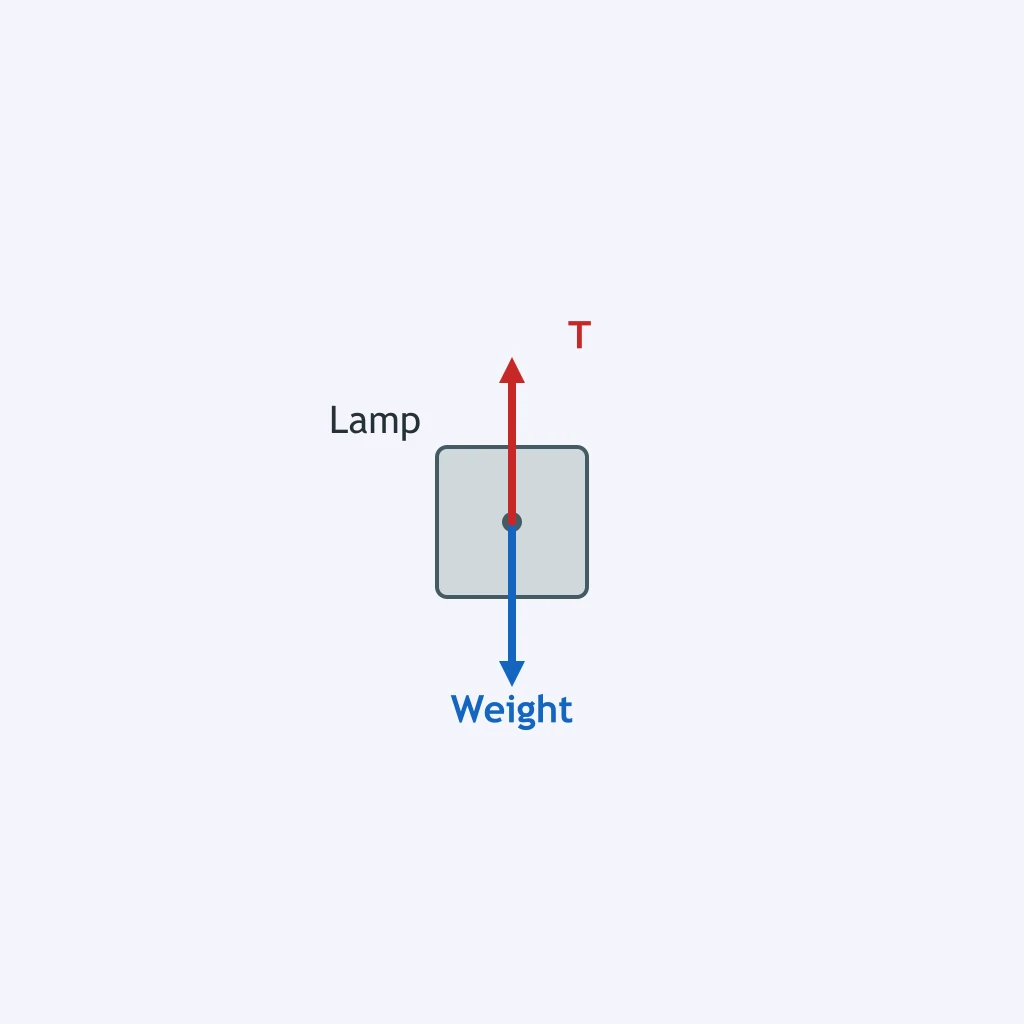

A 8.0 kg lamp hangs at rest from a single vertical cable. Take g = 9.8 m/s² and upward as positive. What is the cable tension?

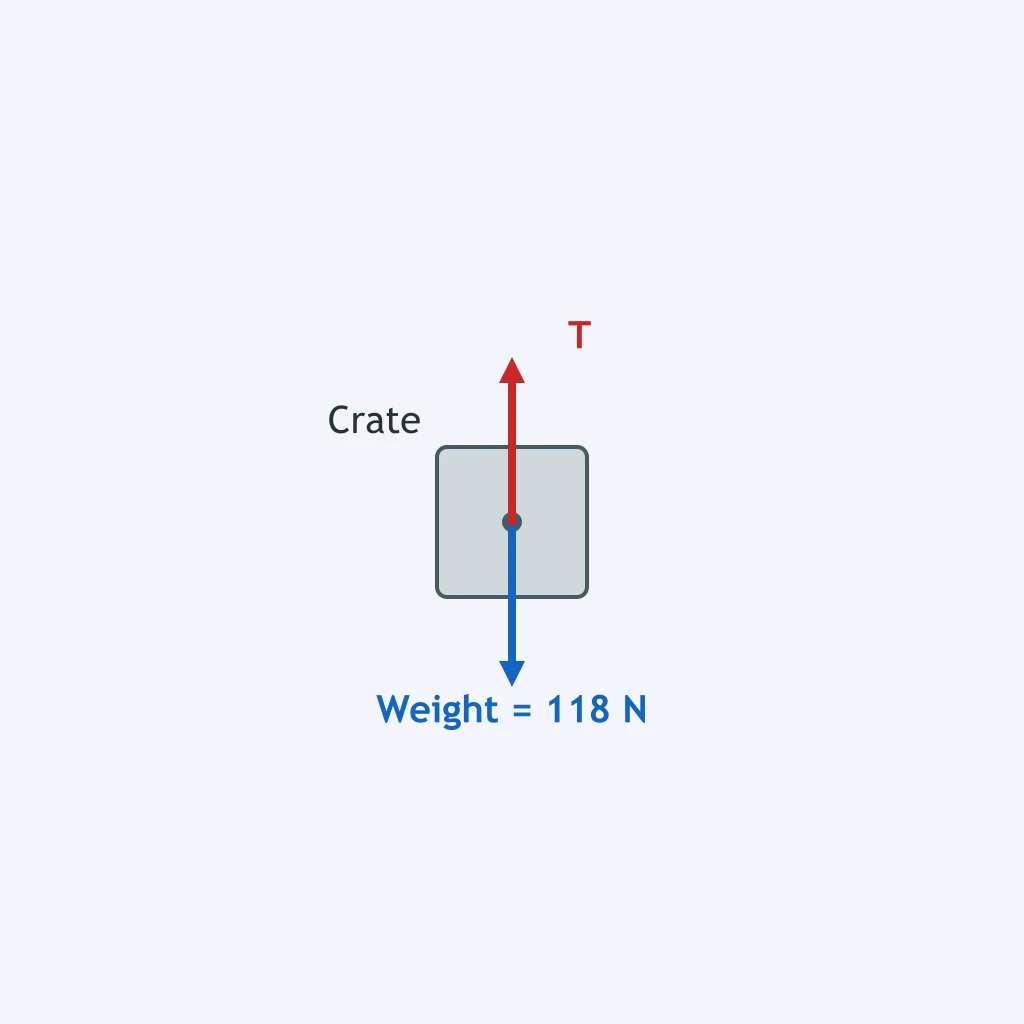

A 12 kg crate is lifted straight up by one vertical rope with acceleration 1.5 m/s². Take g = 9.8 m/s² and upward as positive. What is the rope tension?

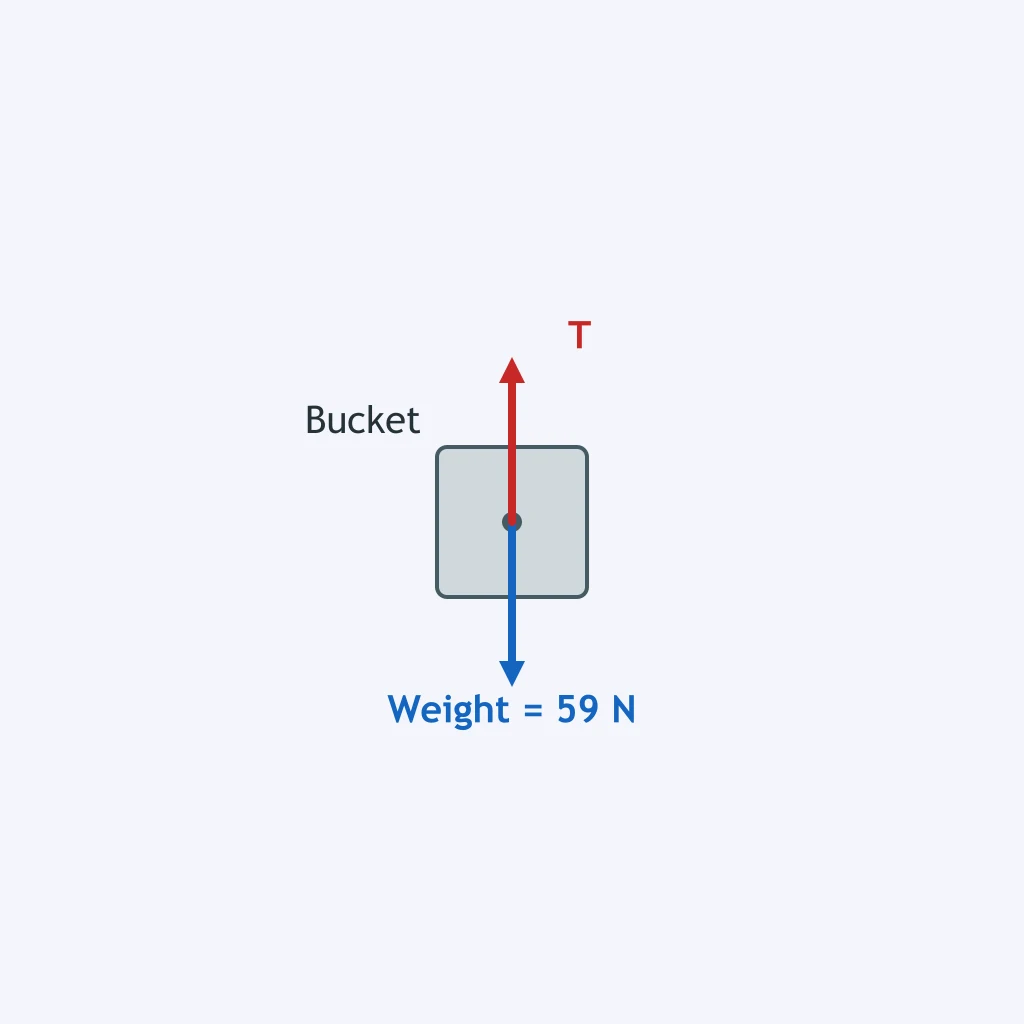

A 6.0 kg bucket is lowered by one vertical rope with downward acceleration 2.0 m/s². Take g = 9.8 m/s² and downward as positive. What is the rope tension?

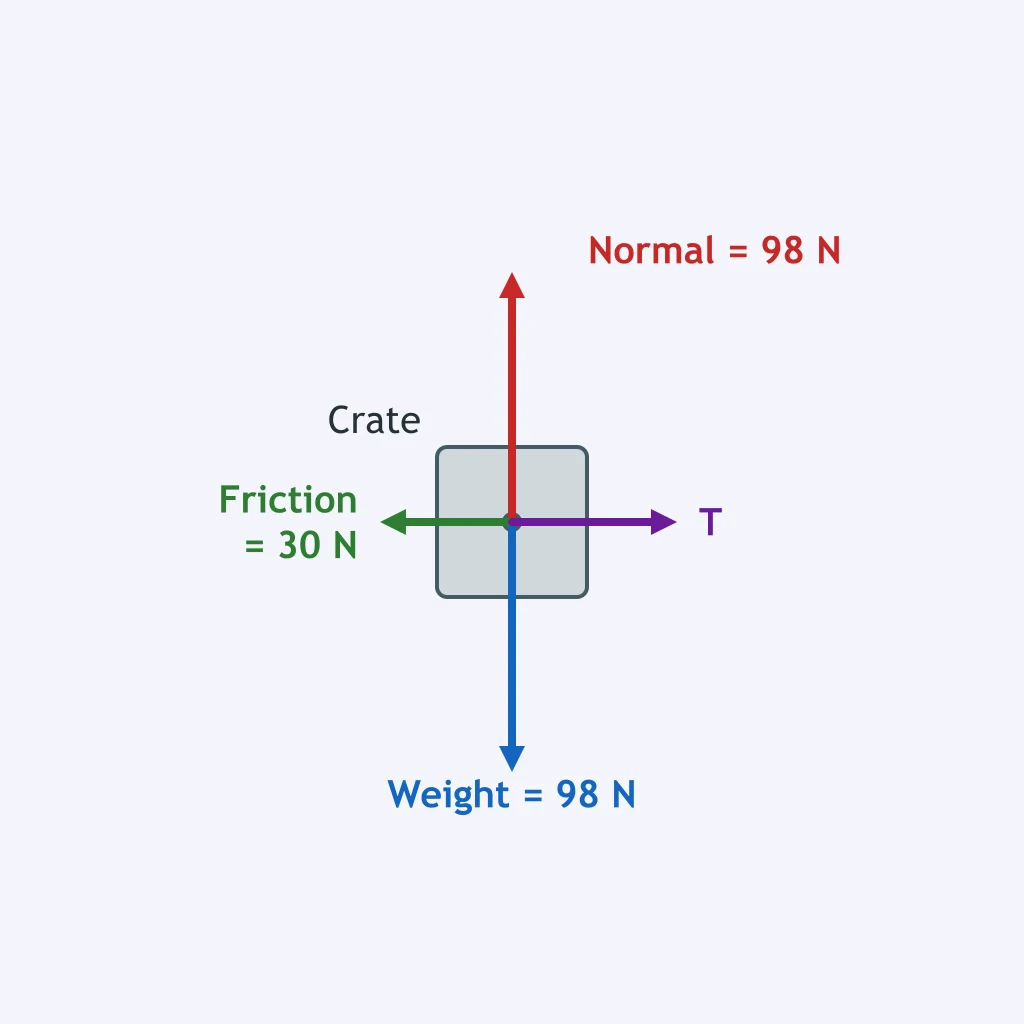

A 10.0 kg crate slides at constant speed while one horizontal rope pulls it across a floor. Kinetic friction on the crate is 30 N. What is the rope tension?

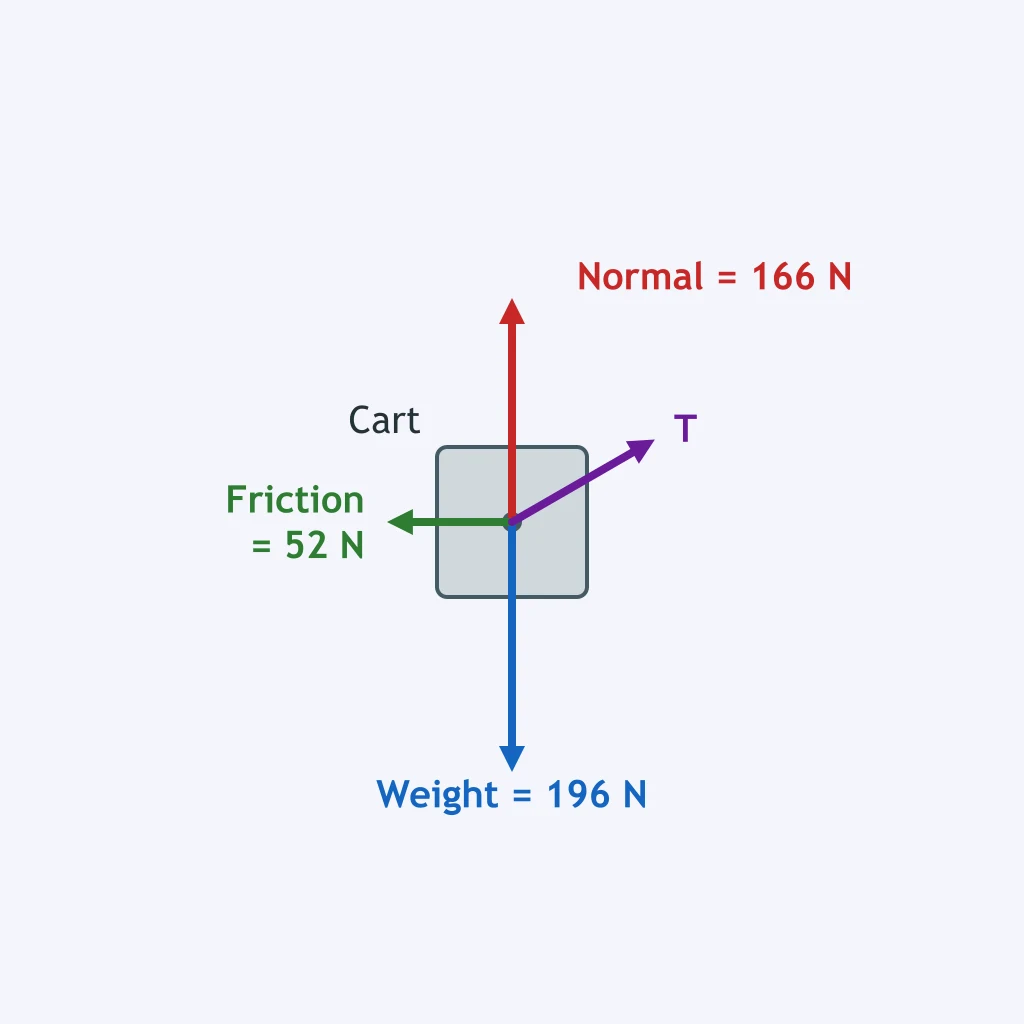

A 20 kg cart moves at constant velocity while a rope pulls 30° above the horizontal. Kinetic friction is 52 N. What is the rope tension?
A 4.0 kg block on a frictionless table is joined by a light, inextensible string over a frictionless pulley to a 2.0 kg hanging block. Take g = 9.8 m/s², positive as the hanging block moves down. What is the shared acceleration?

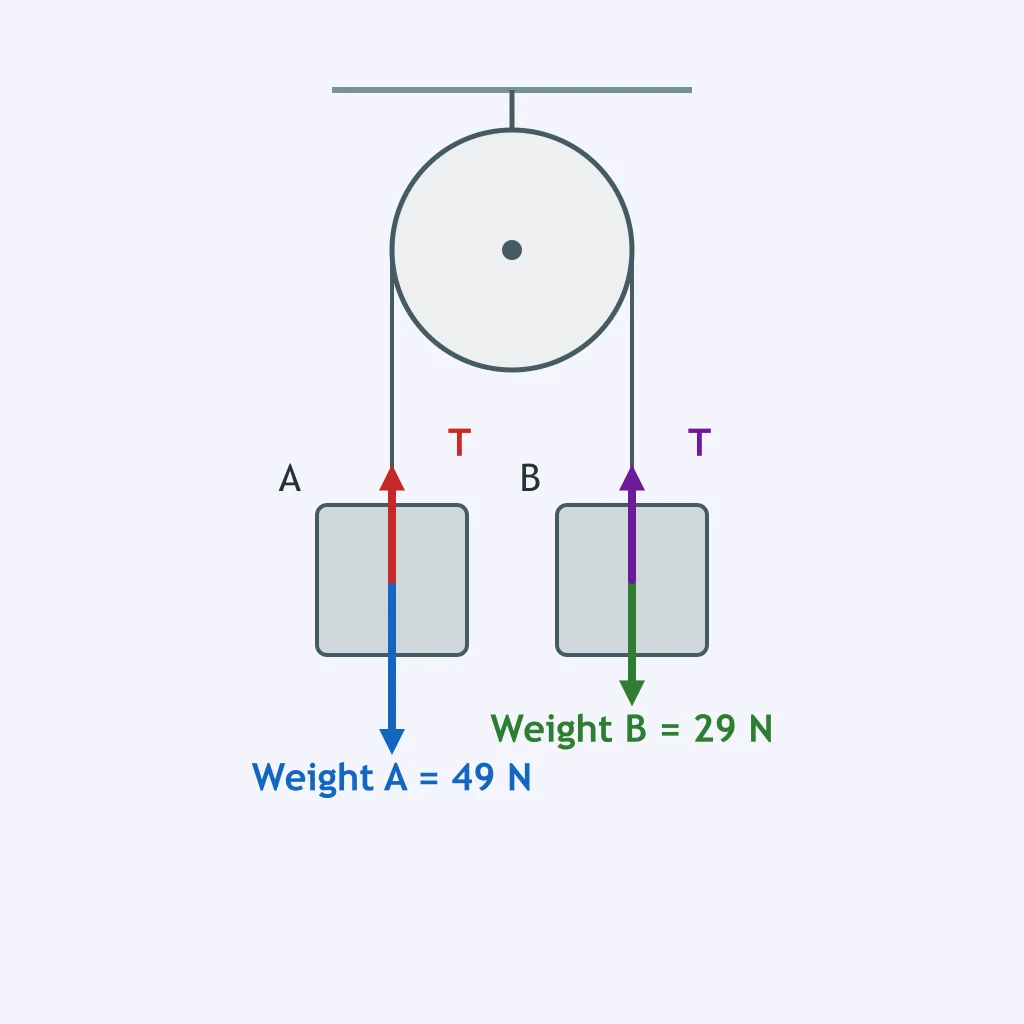

A 5.0 kg mass and a 3.0 kg mass hang on opposite sides of a light, inextensible string over a frictionless pulley. Take g = 9.8 m/s² and positive as the 5.0 kg mass moves down. What is the acceleration magnitude?

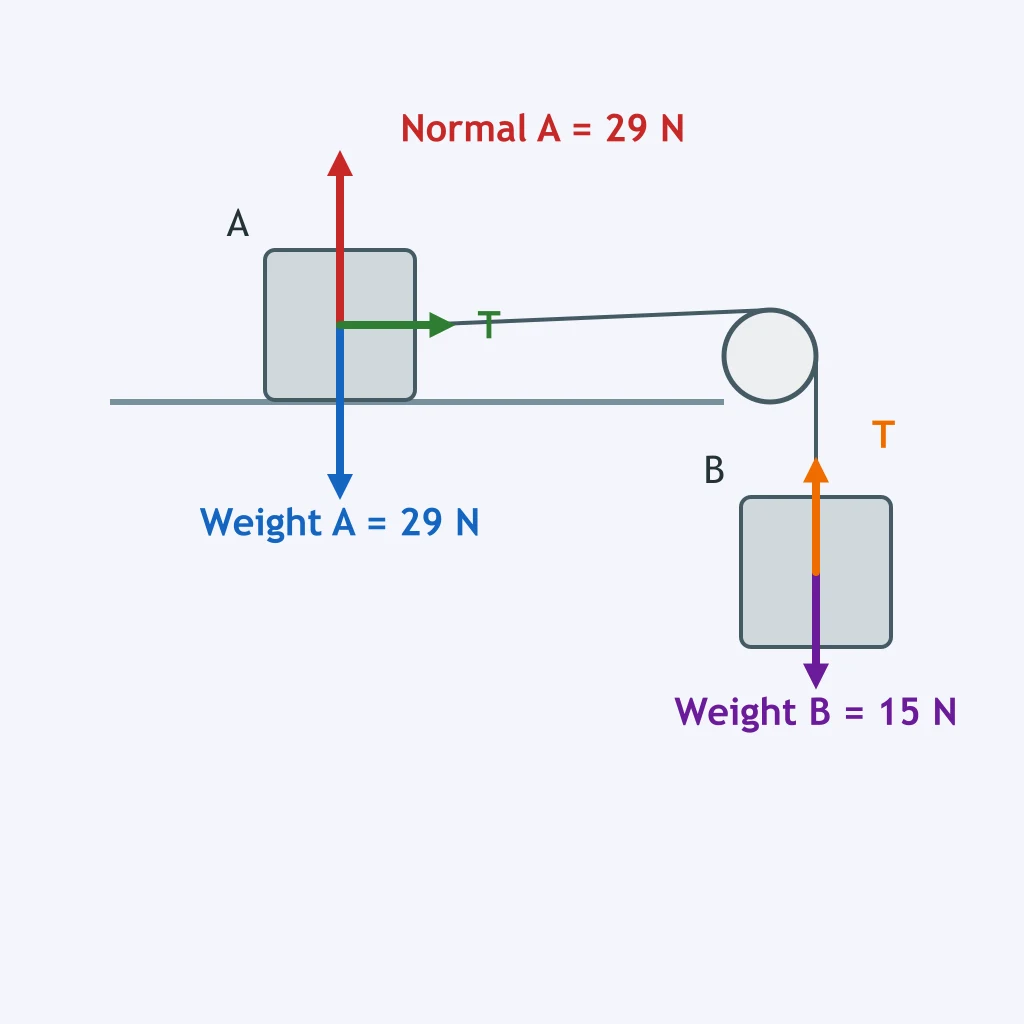

A 3.0 kg block on a frictionless table is connected over a frictionless pulley to a 1.5 kg hanging block by a light, inextensible string. Take g = 9.8 m/s². What is the string tension?

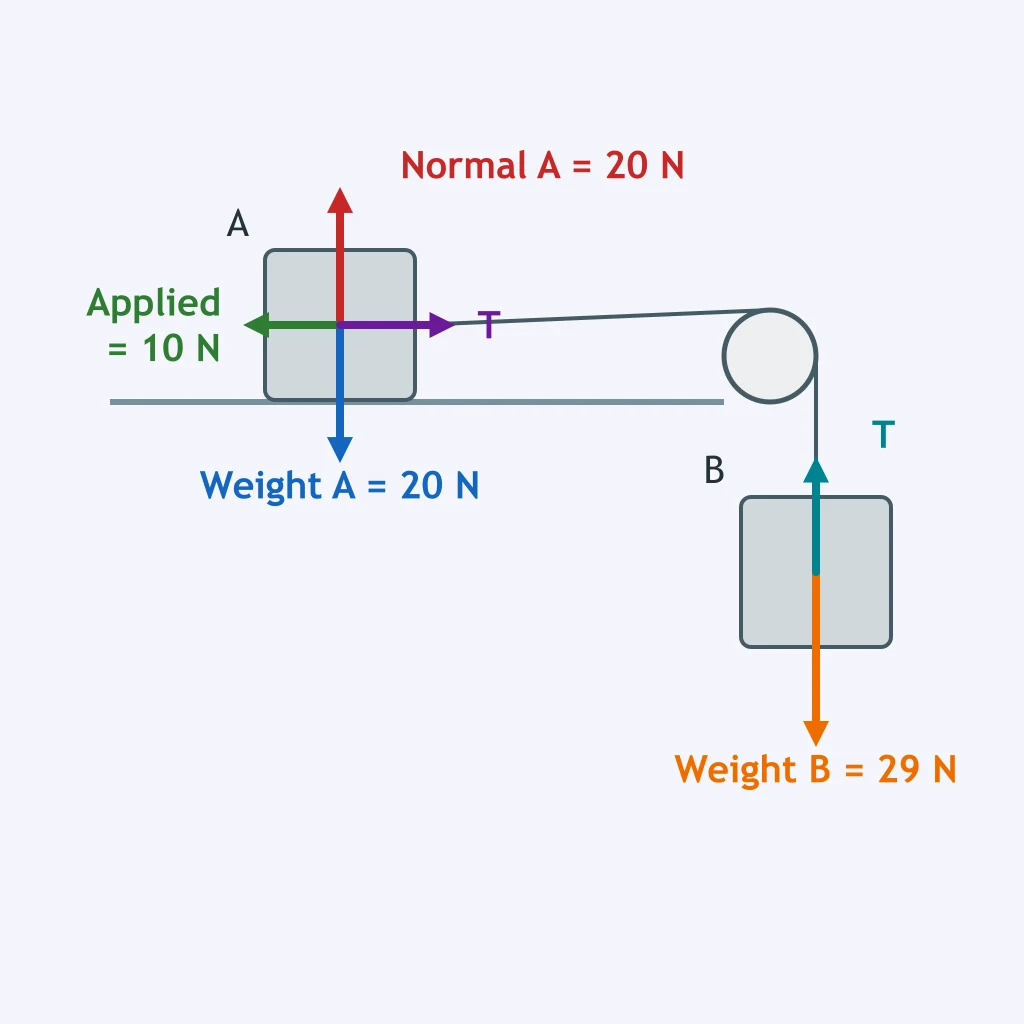

A 2.0 kg cart on a frictionless table is tied over a frictionless pulley to a 3.0 kg hanging mass. A 10 N applied force pulls the cart away from the pulley. Take g = 9.8 m/s², positive as the hanging mass moves down. What is the shared acceleration?

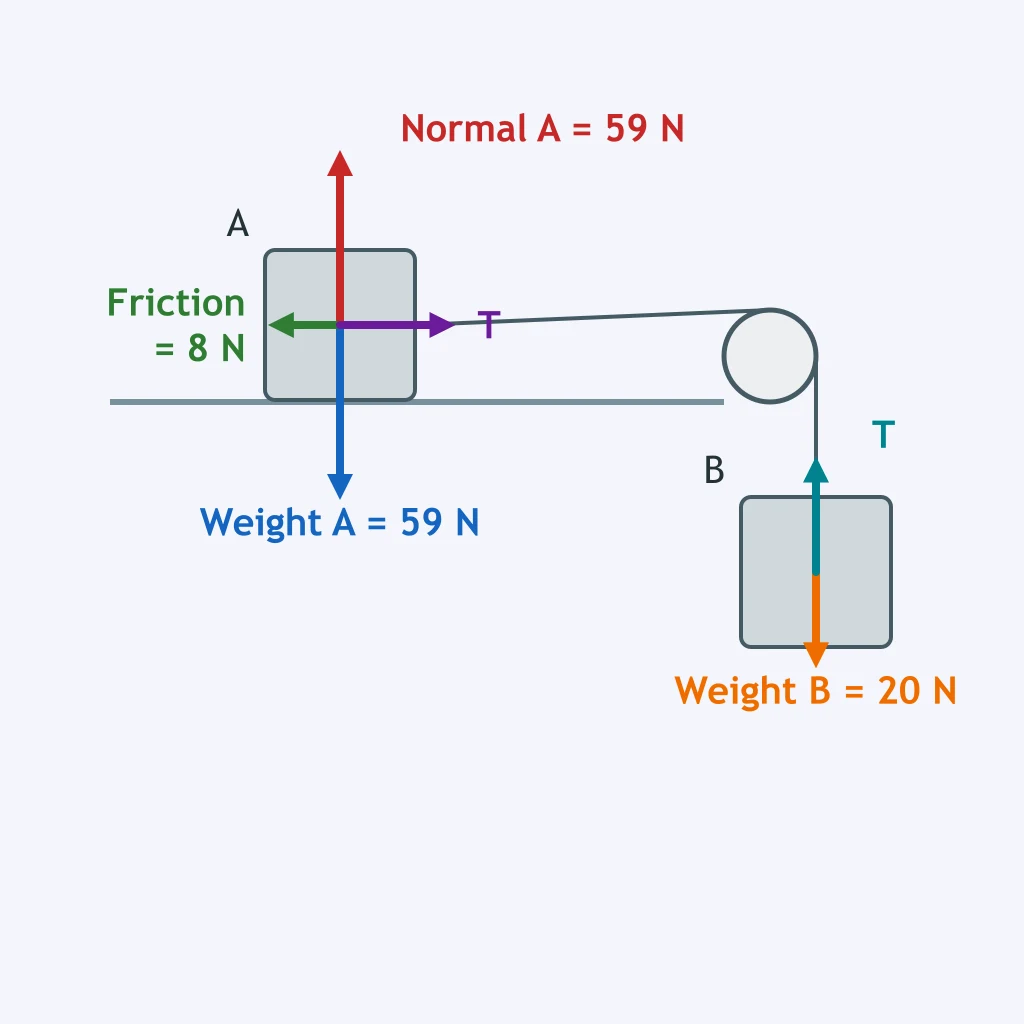

A 6.0 kg block on a rough table is connected over a frictionless pulley to a 2.0 kg hanging block. Kinetic friction on the table block is 8.0 N. Take g = 9.8 m/s², positive as the hanging block moves down. What is the tension?

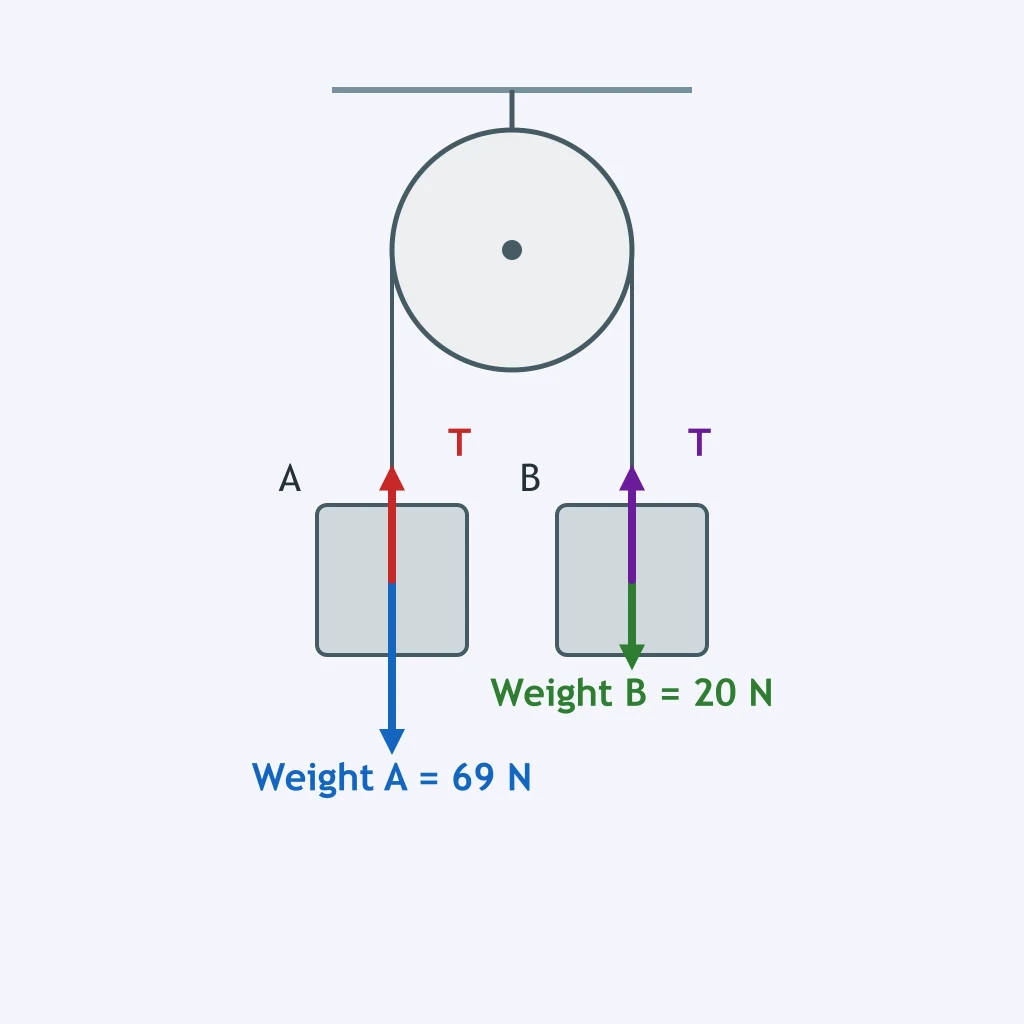

A 7.0 kg mass and a 2.0 kg mass hang from a light, inextensible string over a frictionless pulley. Take g = 9.8 m/s² and positive as the 7.0 kg mass moves down. What is the string tension?

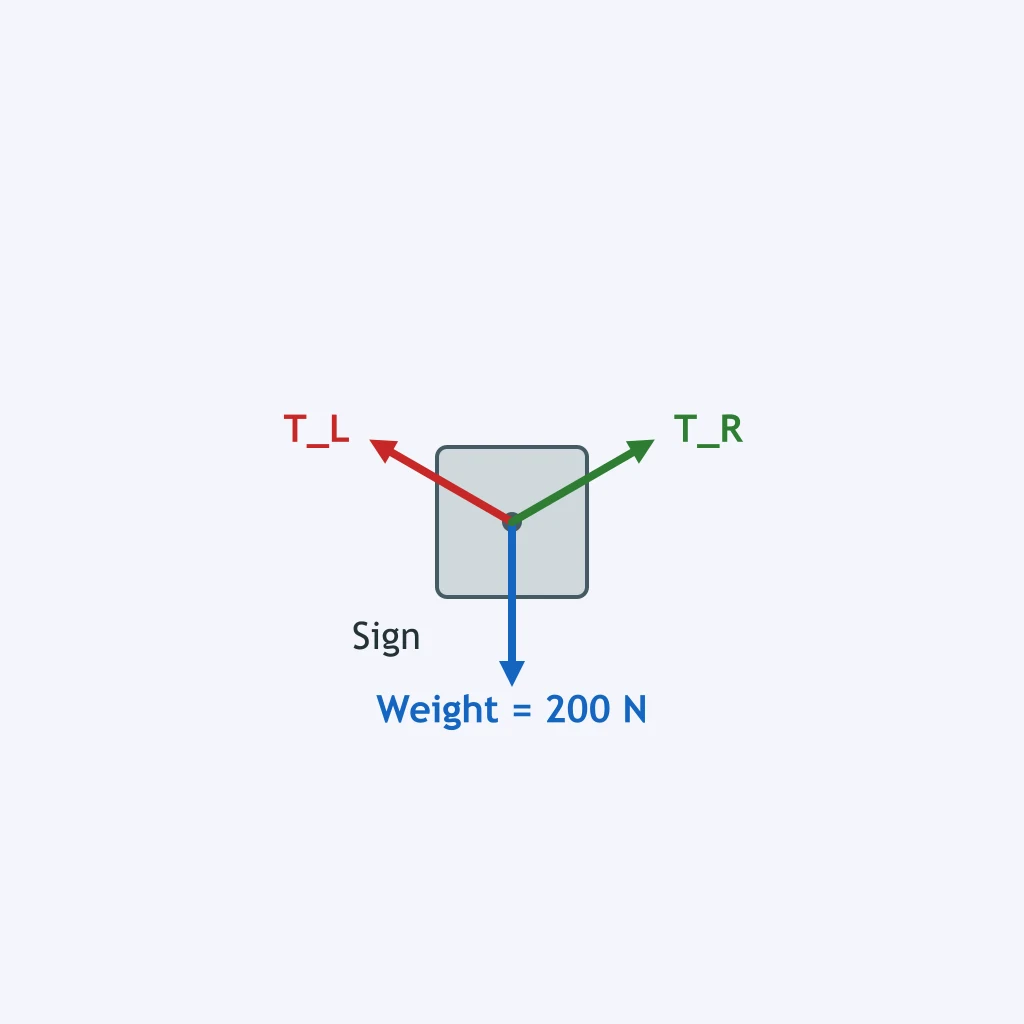

A 200 N sign hangs at rest from two identical cables, each making a 30° angle above the horizontal. What is the tension in each cable?

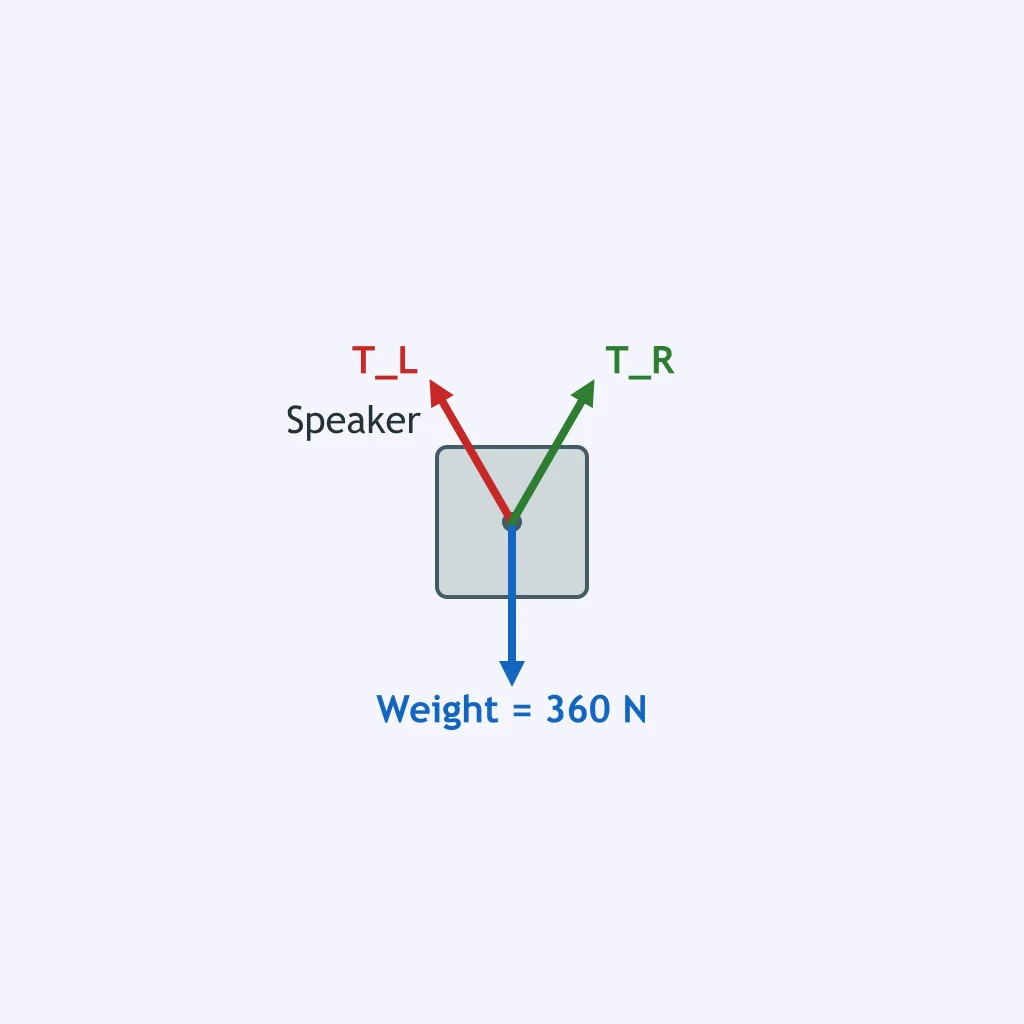

A 360 N speaker hangs at rest from two identical cables, each making a 60° angle above the horizontal. What is the tension in each cable?

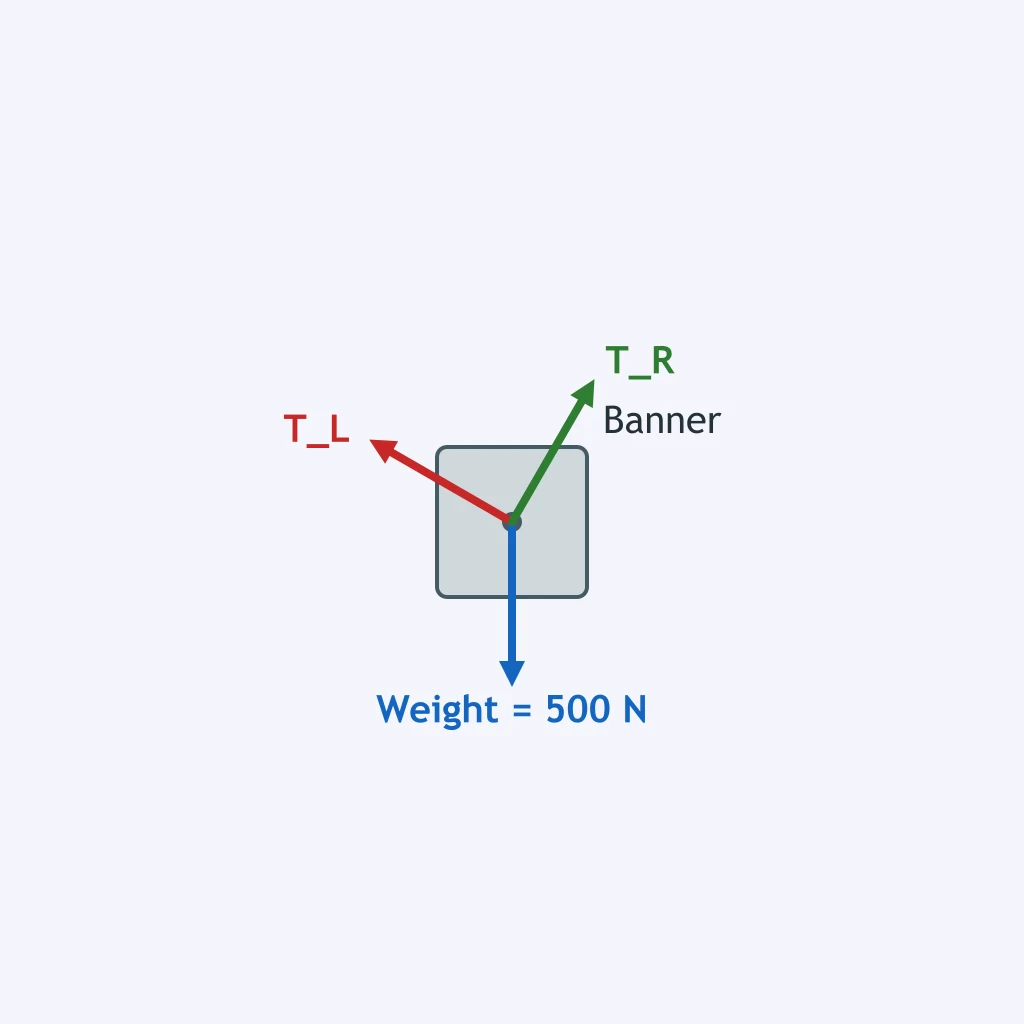

A 500 N banner hangs at rest from two cables. The left cable is 30° above horizontal, and the right cable is 60° above horizontal. What is the tension in the right cable?

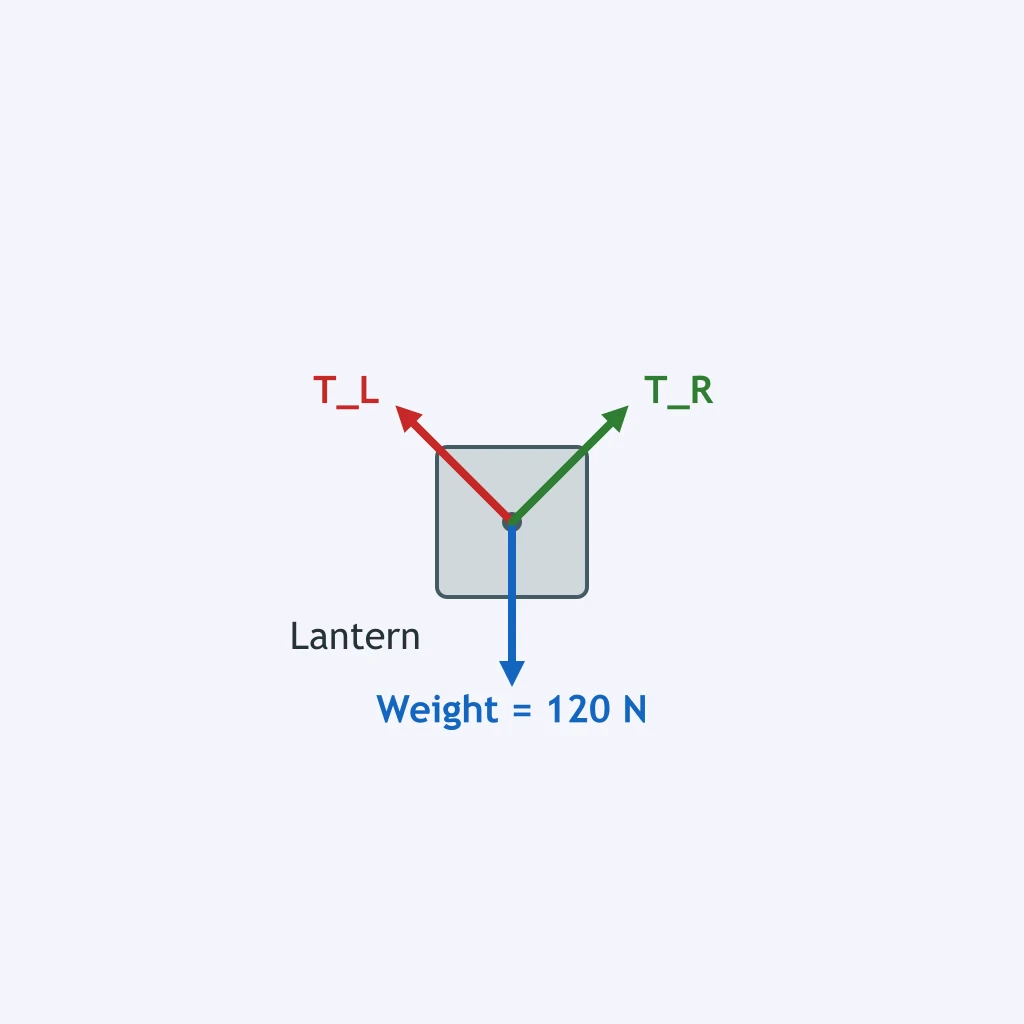

A 120 N lantern hangs at rest from two identical cables, each making a 45° angle above the horizontal. What is the tension in each cable?

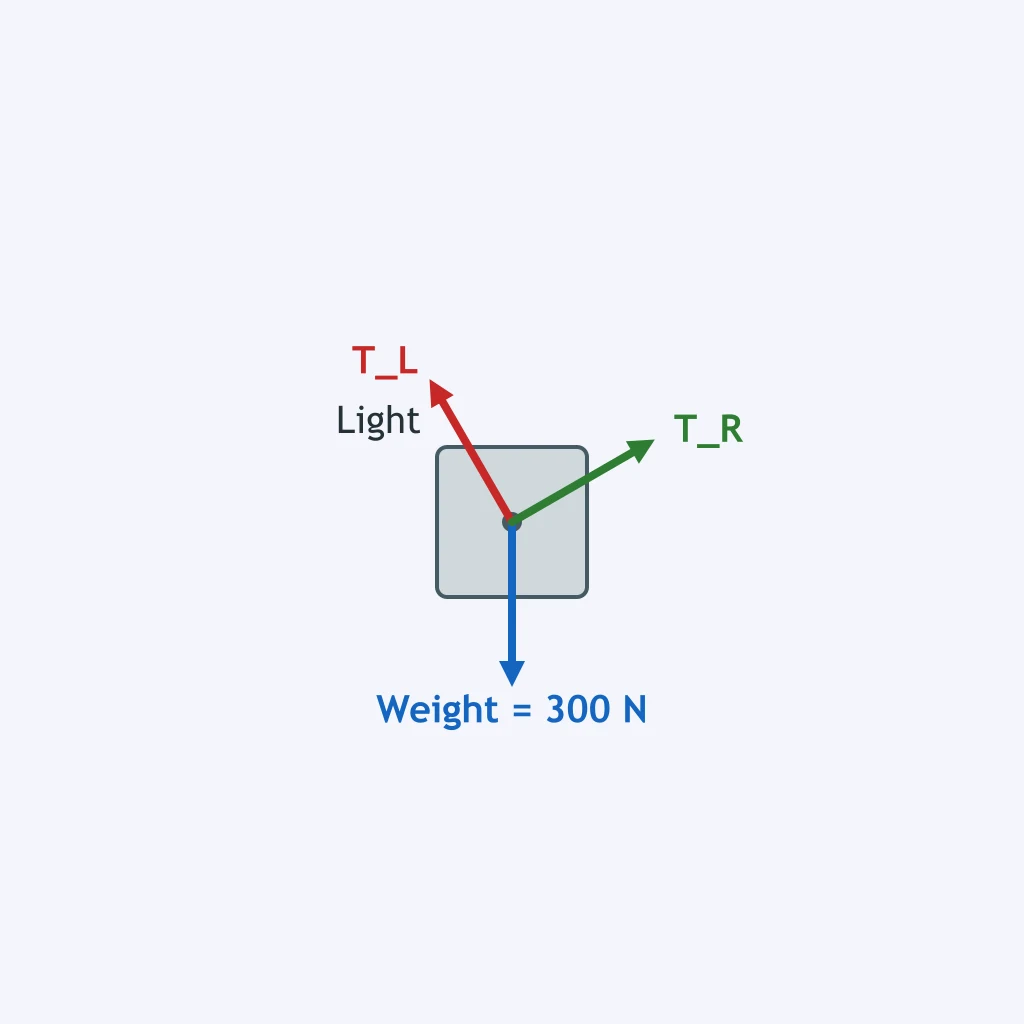

A 300 N stage light hangs at rest from two cables. The left cable is 60° above horizontal, and the right cable is 30° above horizontal. What is the tension in the left cable?
A light, inextensible string passes over a frictionless pulley connecting two blocks. Which statement matches the ideal-string model?
Two carts are linked by a taut, inextensible rope and start moving along the rope. What prevents one cart from getting ahead of the other?
When drawing separate free-body diagrams for two blocks joined by a taut string, how should tension forces be shown?
A table block is connected to a hanging mass, and the hanging mass accelerates downward. Take g = 9.8 m/s². Why is the string tension less than the hanging mass's weight?
