Which labeled part converts rotation into electrical energy?

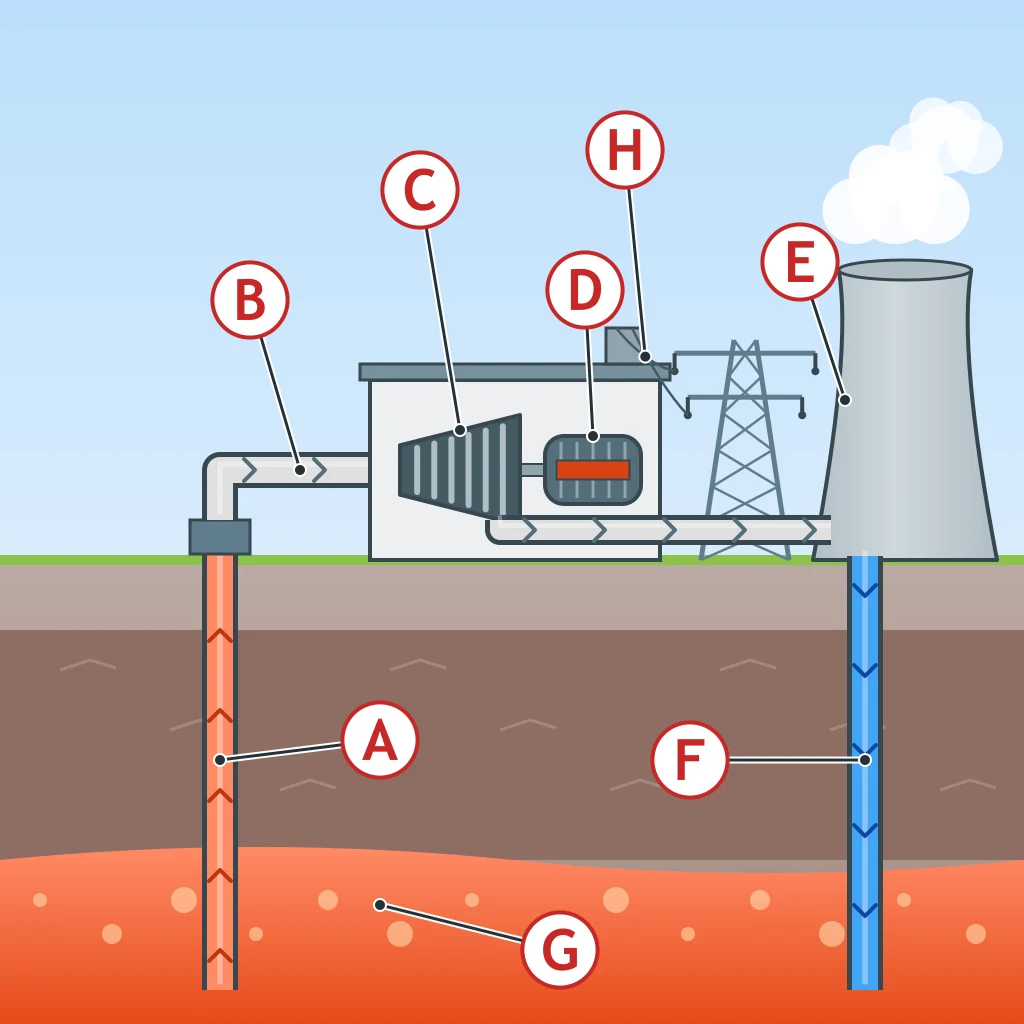

What supplies the heat used by the plant shown?

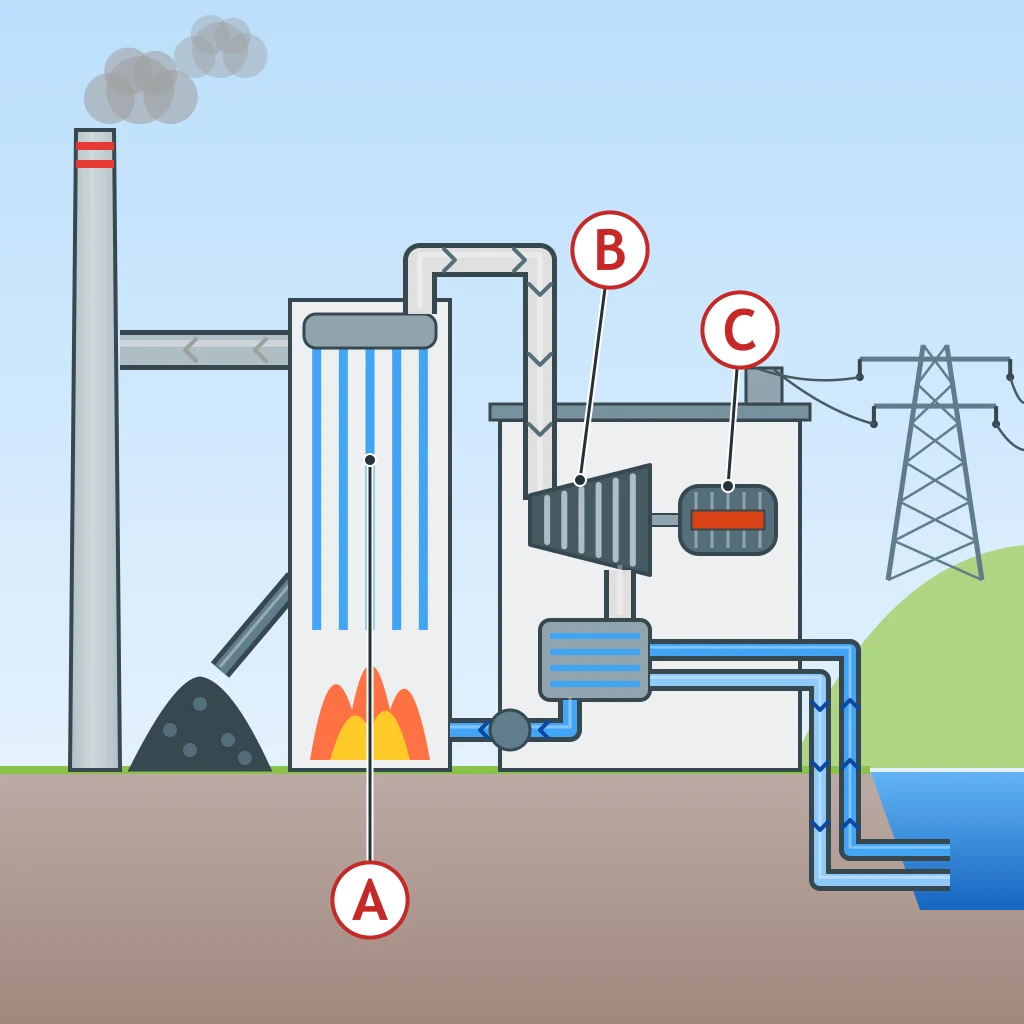

What is the main function of part A in this plant?

Which process releases the energy used in a conventional nuclear power plant?

Which component of a wind turbine extracts kinetic energy directly from moving air?

What does a photovoltaic panel convert directly into electricity?

Which source cannot be replenished on a human timescale?

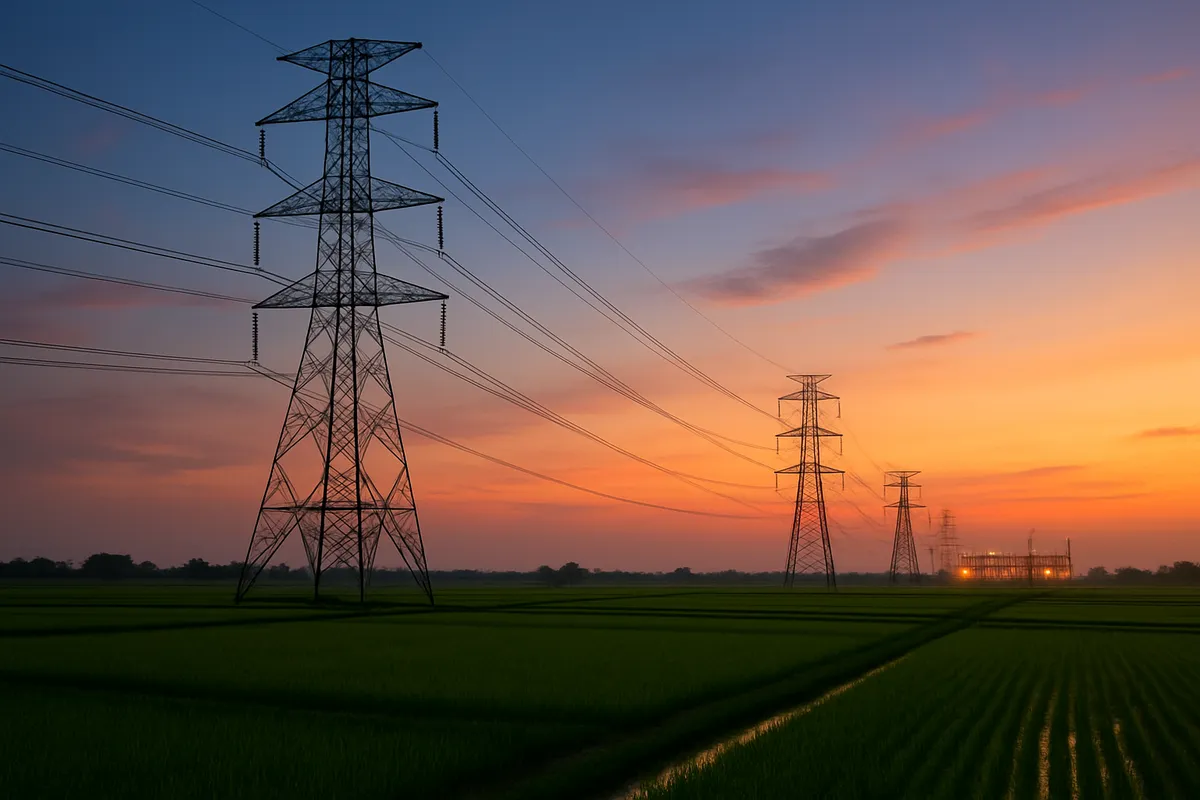

What is the main role of the national transmission grid?

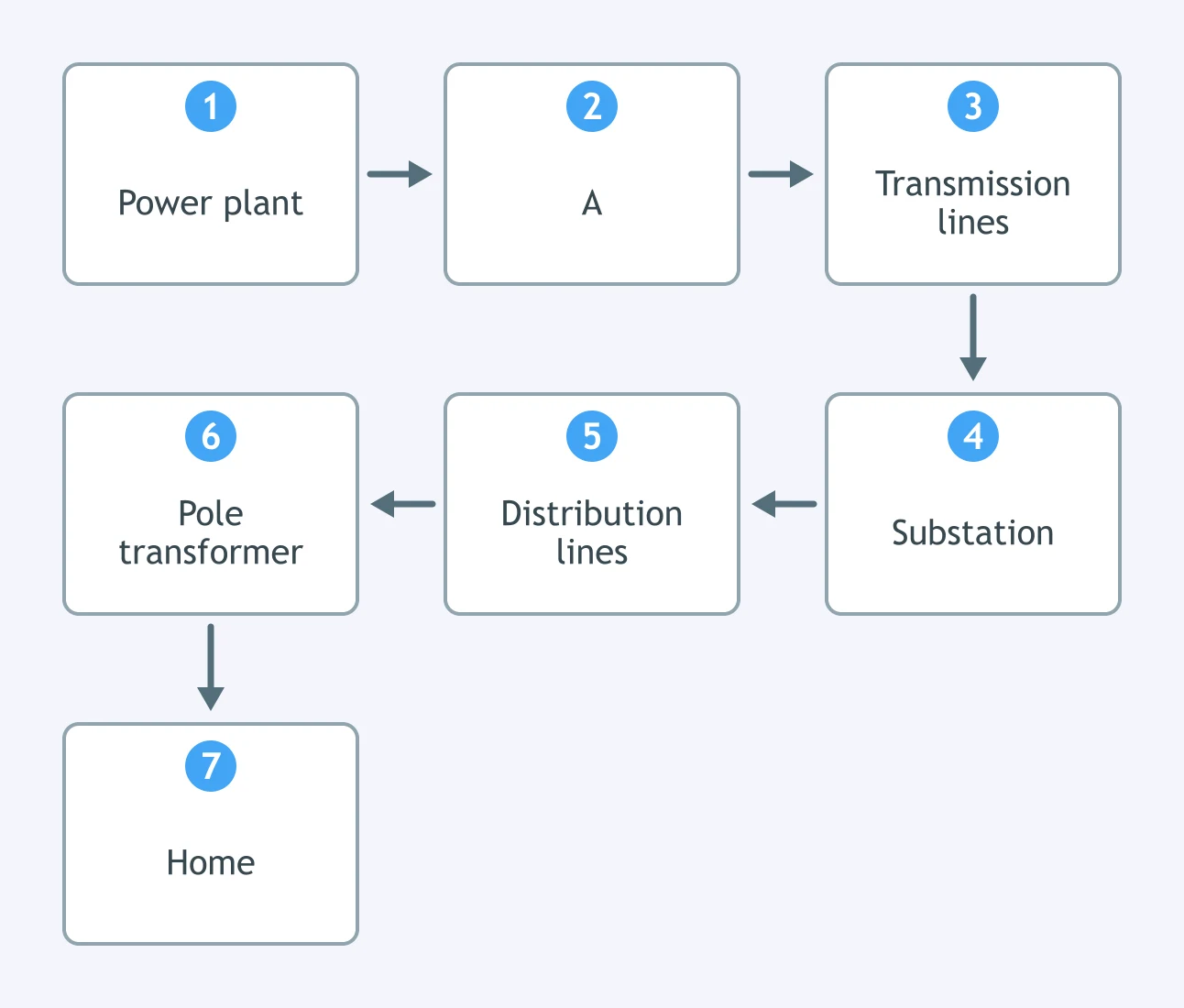

Which device belongs at stage A in this electricity-delivery path?

At a neighborhood substation, what typically happens before electricity enters local distribution lines?

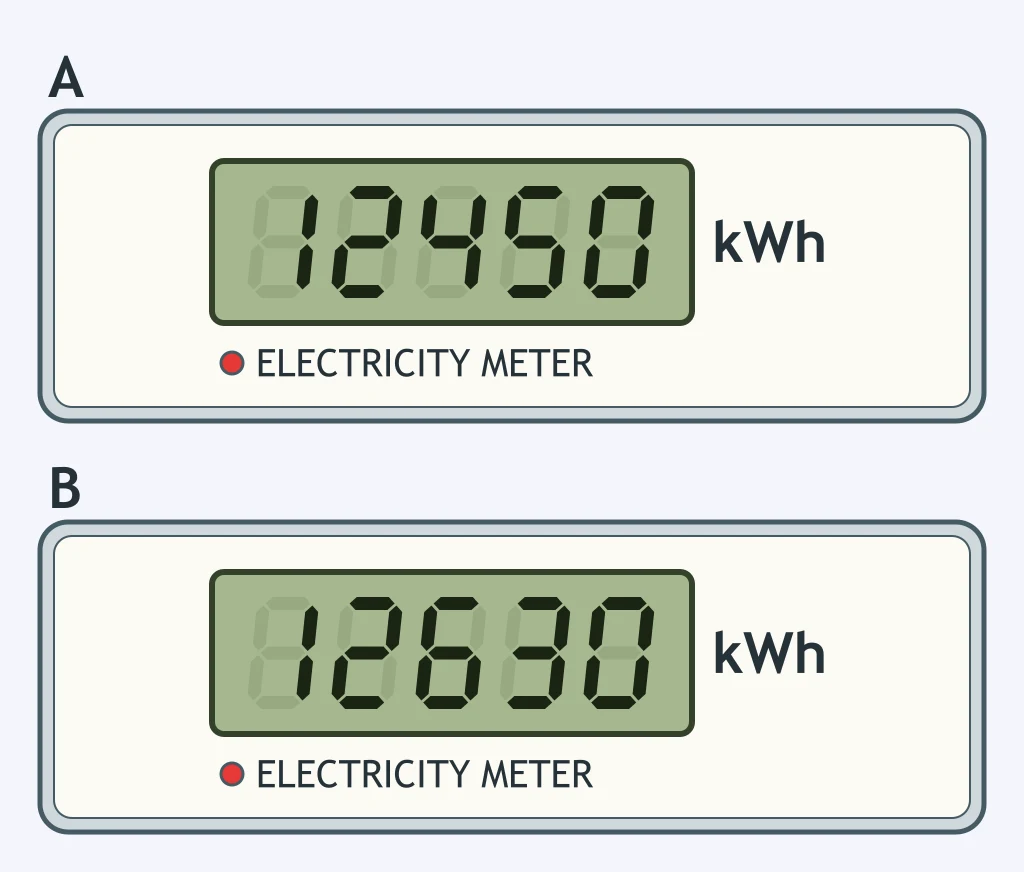

Meter A shows the earlier reading and meter B the later reading. How much electrical energy was used between them?

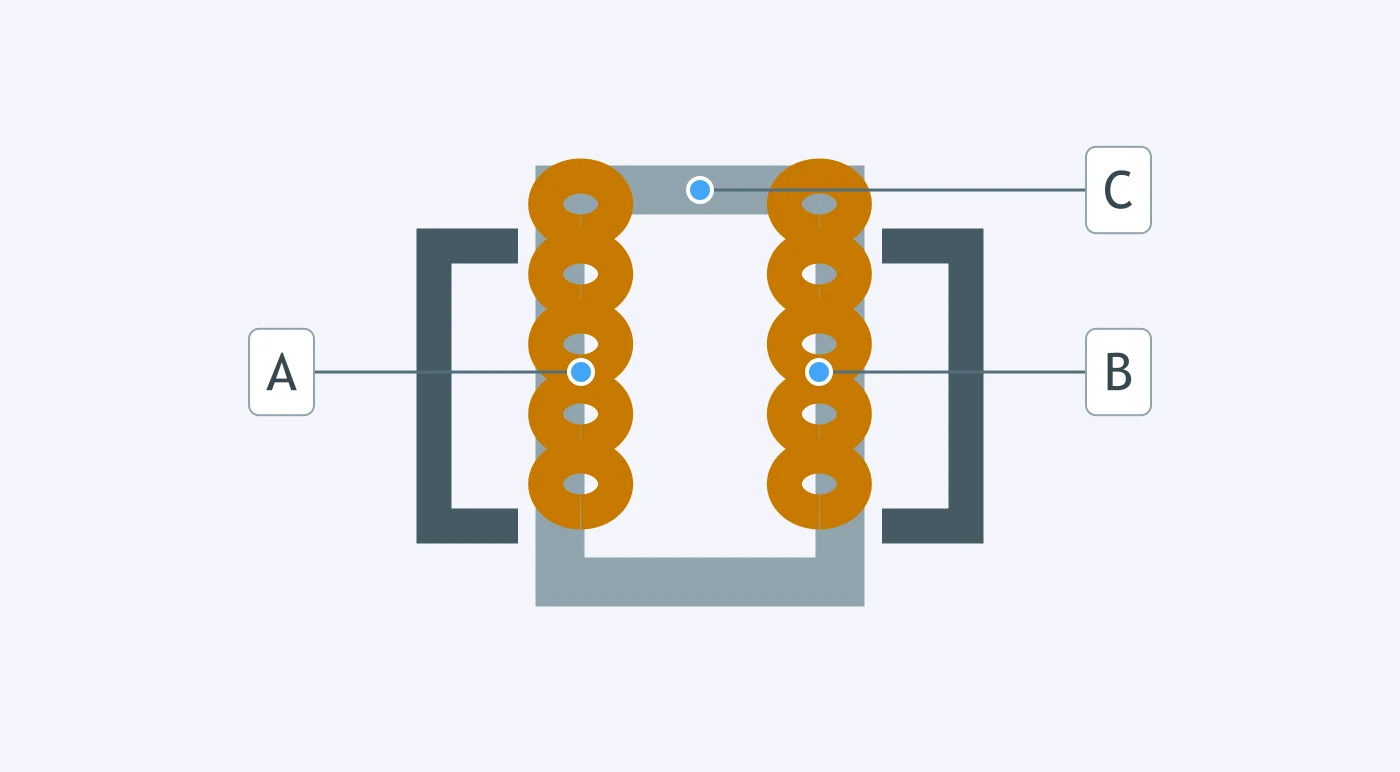

Which labeled part provides the magnetic path linking the two windings?

Which supply can keep an ordinary transformer working continuously?

An ideal radio transformer changes 120 V to 9.0 V. Its output winding has 30 turns. How many turns does its input winding have?

An ideal transformer has 500 input turns and 250 output turns. How does its output current compare with its input current?

For the same transmitted power, why does a grid use a higher voltage over long distances?

A transmission line has a resistance of 0.50 Ω and carries 10 A. How much power is lost as heat?

An outlet rated at 10 A supplies three appliances drawing 4 A each through adapters. How does the total current compare with the outlet's rating?

Before a wet outlet is inspected, a qualified adult safely switches off its circuit. Why does this reduce electric-shock risk?

A tamper-resistant wall outlet protects toddlers using internal shutters. What happens when an object presses against only one shutter?
